Technical Tip: Traffic shaping with dedicated SD-WAN interface members.
Description
To select the individual interface of SD-WAN config is possible.
This is helpful to configure the traffic shaping only for specific SD-WAN member not for both.
This article describes this feature.
Solution
GUI steps:

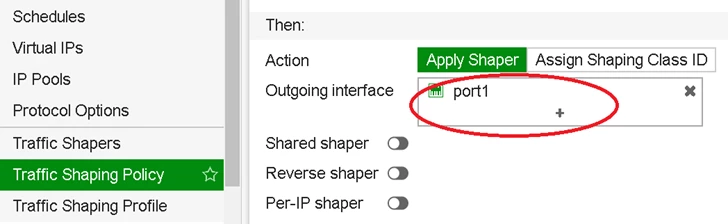

Go to Policy and Object -> Traffic shaping policy, Create New and Select it under option called 'Outgoing interface':
To select the individual interface of SD-WAN config is possible.
This is helpful to configure the traffic shaping only for specific SD-WAN member not for both.
This article describes this feature.
Solution
GUI steps:
Go to Policy and Object -> Traffic shaping policy, Create New and Select it under option called 'Outgoing interface':
To Verify go to FortiView -> Traffic Shaping.CLI steps:# config firewall shaping-policy
edit 1
set service "<ALL/Required port>"
set schedule "always"
set dstintf "<interface name>" <----- Select one of the SD-WAN member here.
set traffic-shaper "<respective traffic shaper name>"
set traffic-shaper-reverse ""<respective traffic shaper name>"
set srcaddr "all"
set dstaddr "all"
end
