Technical Tip: To Delete IPSec VPN tunnel Phase2 selector
| Description | This article explains how to delete IPSec phase 2 selector from the CLI of the FortiGate if there is no option to delete it from GUI. |
| Scope | FortiGate. |

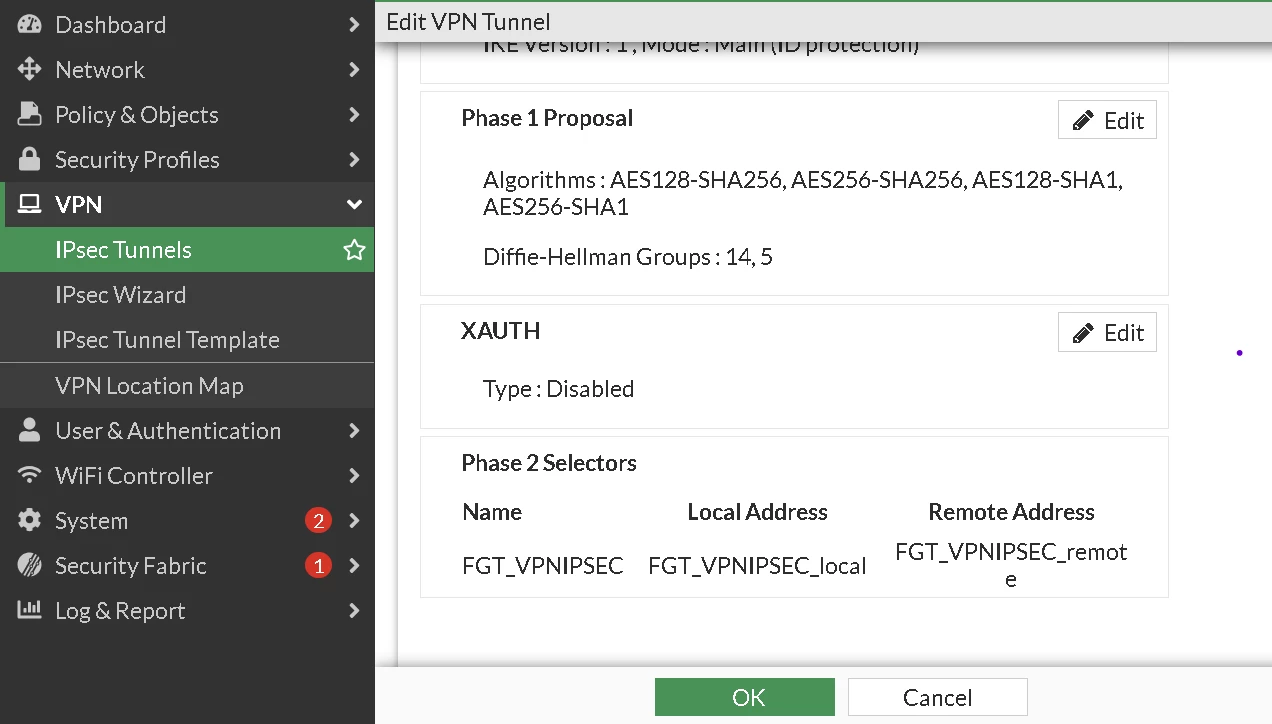

| Solution | In this example name of the phase2 selector of the IPSec tunnel is 'FGT_VPNIPSEC'. The following image shows the Phase 2 Selector configuration from the FortiGate GUI.
To delete the phase2 selector use the following commands:
config vpn ipsec phase2-interface delete <Phase2Selector_name> end

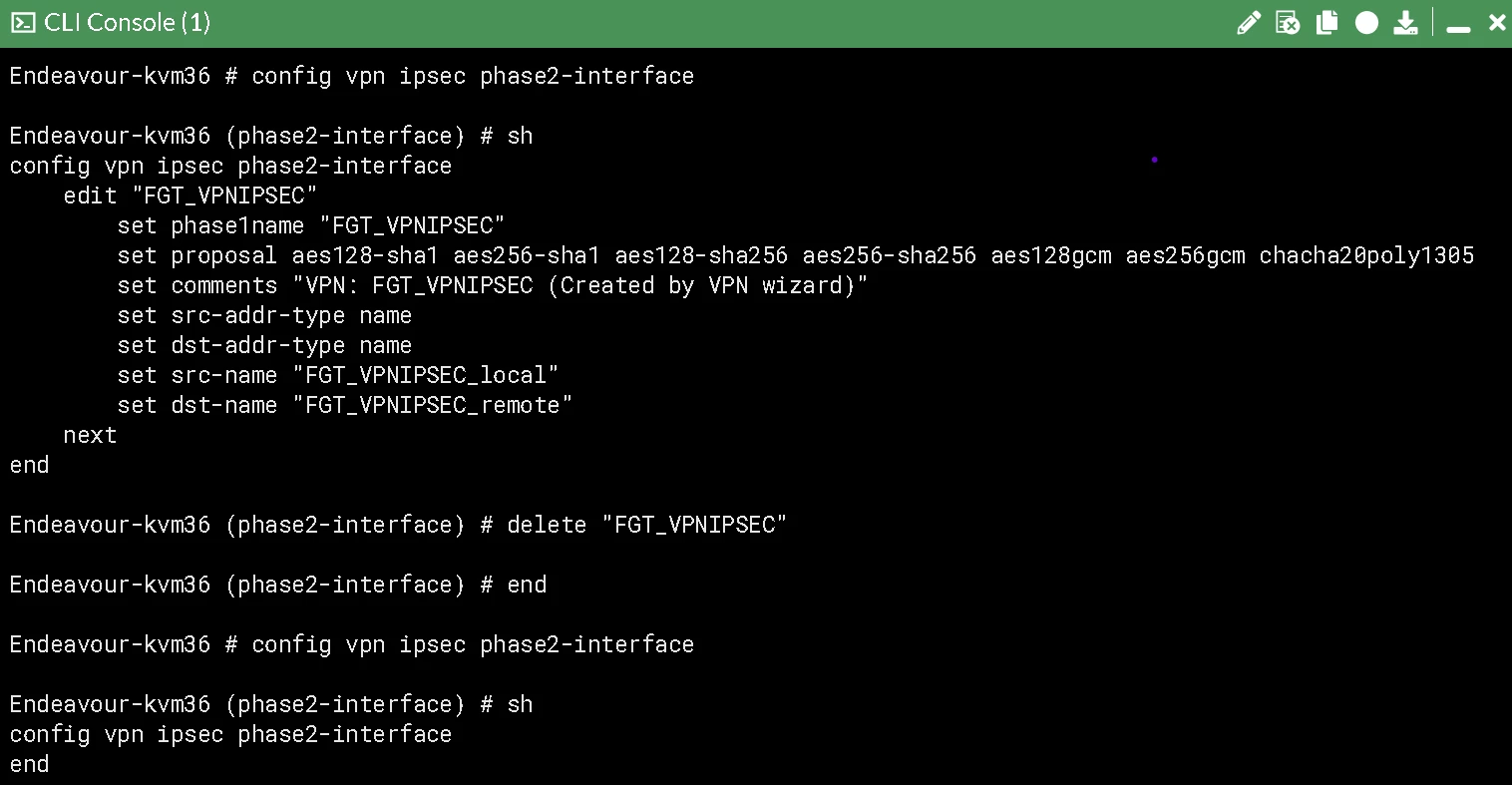

The following Image shows the example of deleting phase2 selector 'FGT_VPNIPSEC':

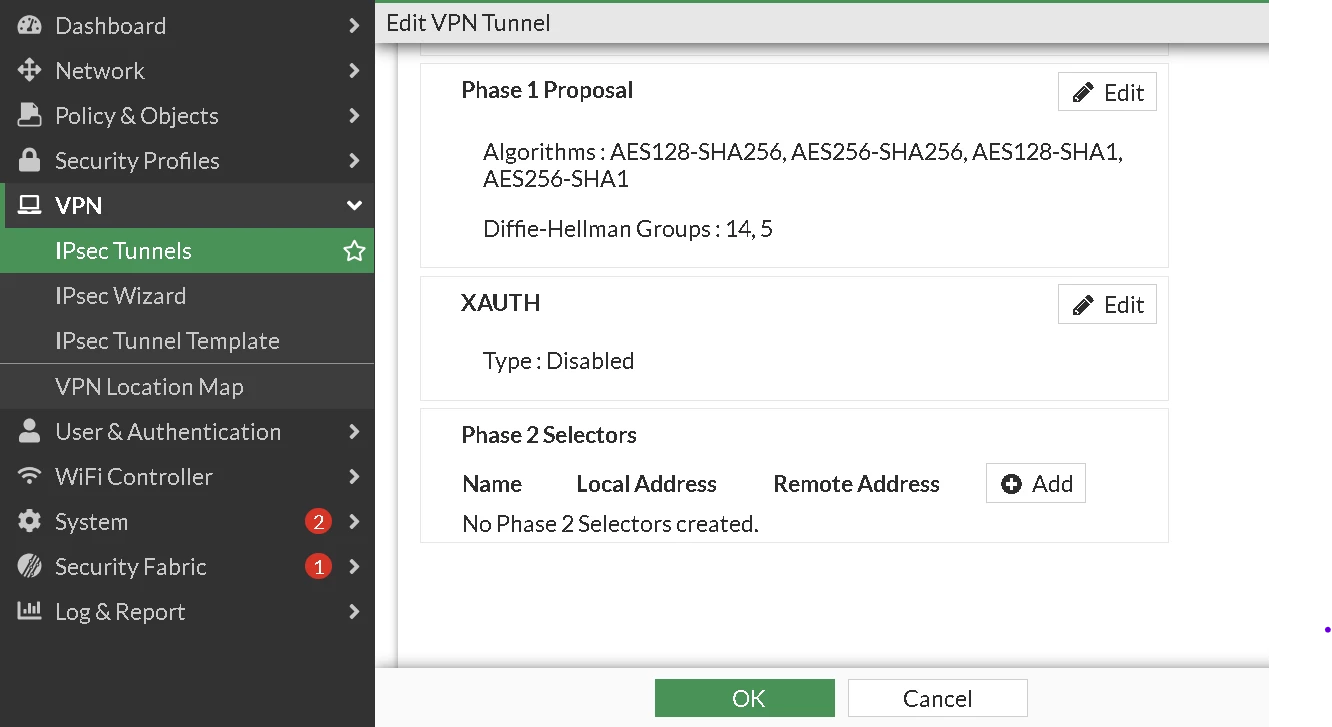

The following image shows the results from the FortiGate GUI.

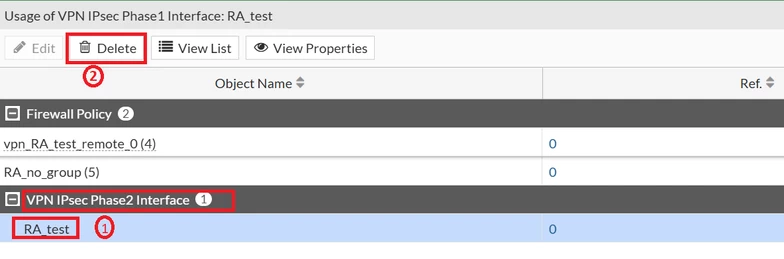

The other way to do this is shown below with a tunnel called RA_test.
In the VPN tunnel section, select the number in the reference column, select the phase2 tunnel entry to be deleted, then select 'delete'.
|
