Technical Tip: Synchronization of bridging information between FGSP standalone cluster working as a transparent mode with standalone-config-sync enabled

If traffic flows asymmetrically between FGSP standalone cluster working as a transparent mode, synchronizing bridging information is crucial to deal with traffic.

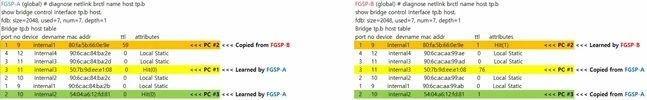

1. MAC addresses of PC#1 and PC#2 are learned by FGSP-A and copied to FGSP-B. PC#3 is learned by FGSP-A and copied to FGSP-B.



2. The 'TTL' of the copied entries increases and reaches to 2/3 of its configured mac-ttl(300 sec).









3. When the 'TTL' reaches 2/3 of the configured mac-ttl (300 sec), entries are renewed if entries still exist in the bridging information of the FGSP initially learns MAC and copies them to its FGSP peer.







4. If entries are not identical between FGSP standalone clusters. In this screenshot, '80:fa:5b:66:0e:9e' is learned by FGSP-B but not copied to FGSP-A.









5. Restating 'hatalk' on the FGSP-B copies its bridging information to its peer, FGSP-A.
