Technical Tip: Static routing configuration section is not synchronized in HA public cloud environments
Description
In FortiGate HA public cloud environments (i.e. Azure) static routing configuration section below is not synchronized between HA peers (primary and secondary units).
This article describes this feature.
Solution
1) From the GUI.
Go to Network -> Static Routes.
In FortiGate HA public cloud environments (i.e. Azure) static routing configuration section below is not synchronized between HA peers (primary and secondary units).
This article describes this feature.
Solution
1) From the GUI.

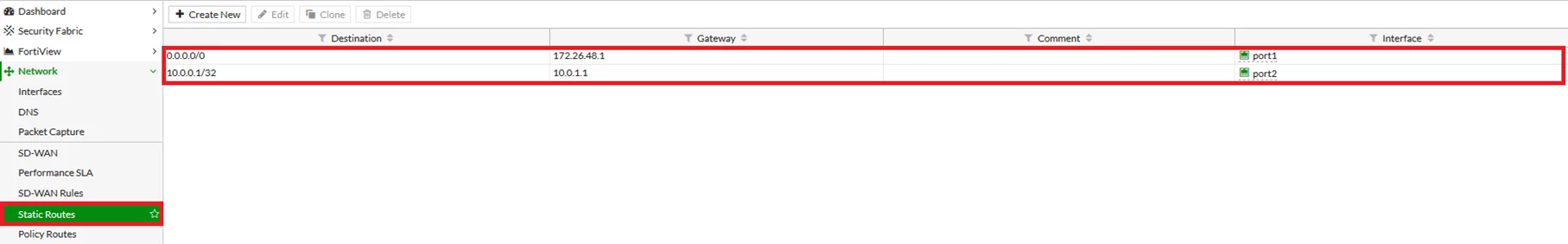

Go to Network -> Static Routes.
From CLI:
# config router staticTherefore, it is necessary to configure static routing configuration on both HA (primary and secondary) units manually.
edit 1
set gateway 172.26.48.1
set device "port1"
next
edit 2
set dst 10.0.0.1 255.255.255.255
set gateway 10.0.1.1
set device "port2"
next
end
