Technical Tip: SSL VPN tunnel mode: negating split tunneling Routing Address IPs

Description

This article describes the option to negate the split tunneling 'Routing Address' introduced starting from FortiOS 6.4.0. The option is available exclusively through the CLI, supporting IPV4 and IPV6.
This option also needs a compatible FortiClient (at least v6.4.0).

Related document:
Changes in CLI - FortiOS 6.4 release notes

Scope

FortiGate v6.4 and above.

Solution

From CLI:

config vpn ssl web portal
    edit “tunnel-portal name”
        set split-tunneling-routing-negate [enable | disable]      <----- Added.
        set ipv6-split-tunneling-routing-negate [enable | disable] <----- Added.
    next
end

After enabling the split-tunneling-routing-negate option, all other traffic except for negated routes will go through the tunnel. When enabling the option, ALL routing-address objects will be negated.

There is no option of using mixed addresses (negated and un-negated). Using ISDB addresses is also not an option.

To add Routing Address objects from CLI:

config vpn ssl web portal
    edit “tunnel-portal name”
        set split-tunneling-routing-negate enable
        set split-tunneling-routing-address “Addr” <----- The defined Address object will not come into the FortiGate once the VPN is connected.
    next

Note:

When 'split-tunneling-routing-negate' is enabled the 'split-tunneling-routing-address' will function as an exclusion list i.e. any address which needs to be excluded from being routed via the FortiGate can be updated here.

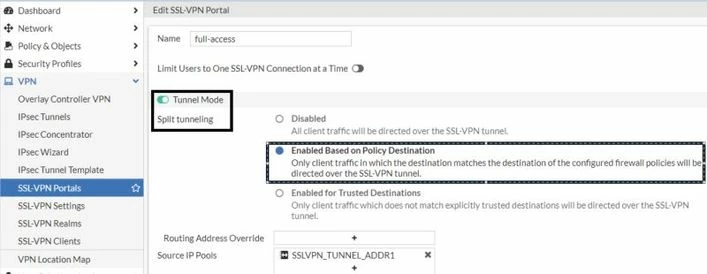

When split-tunneling is enabled, the destination of the firewall policy for SSL VPN traffic can't be 'All'.
