Technical Tip: SNMPv3 identify different hostname in HA cluster members

  • October 21, 2024
  • 0 replies
  • 570 views
Description

This article describes how to verify the different hostnames in HA cluster members.
Scope FortiGate, SNMPv3.
Solution

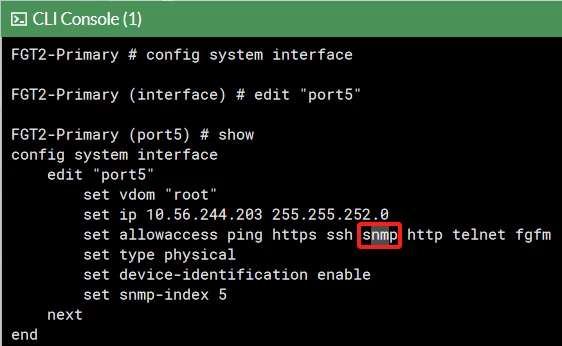

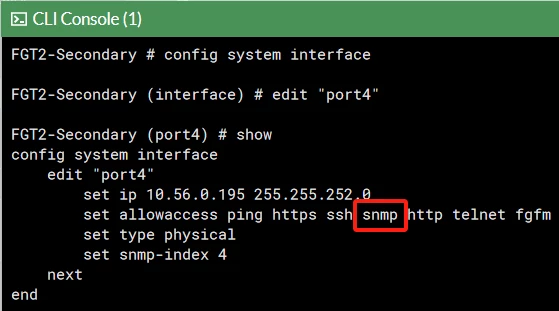

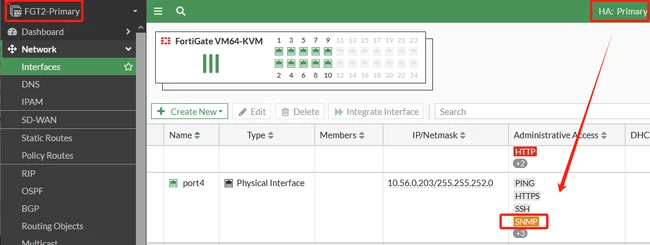

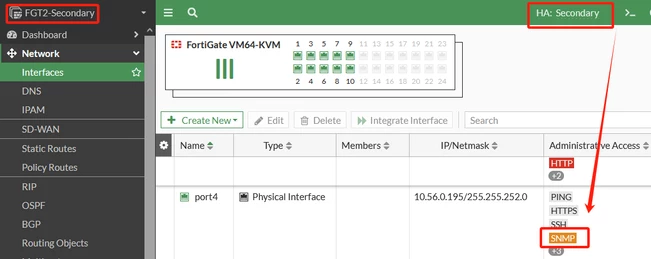

  1. Enable the SNMP on the HA MGMT interface on both FortiGate clusters.

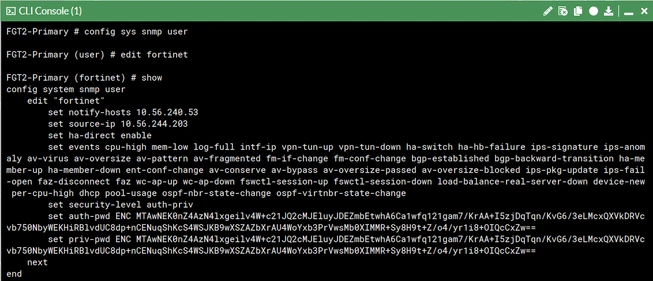

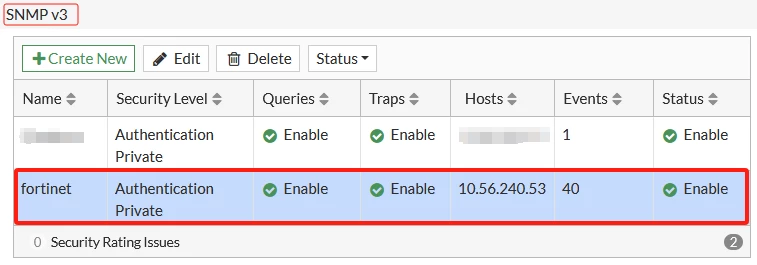

  2. Create an SNMP v3 user with an authentication and encryption algorithm, SNMP host, and events.

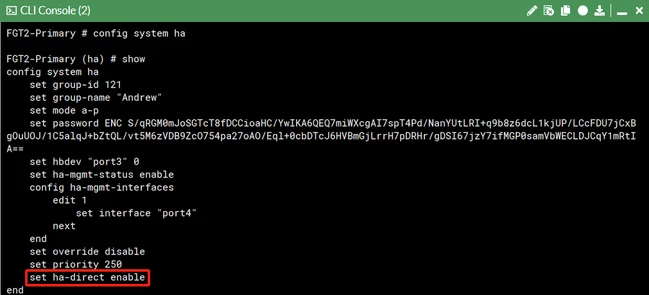

  3. Enable the ha-direct under the HA configuration.

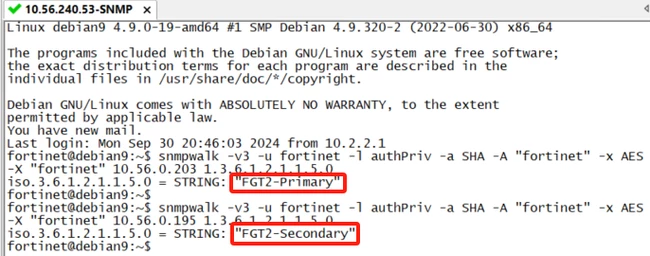

  4. SNMPv3 identifies different hostnames on the HA cluster.
