Technical Tip: Site-to-Site IPsec VPN Configuration with Certificate-Based Authentication.

Step 1: Create or obtain the Root CA Certificate and then import it under Create/Import -> Remote Certificate.

Step 2: Obtain a child/server/client certificate with .p12 format and import it under Create/Import -> Certificate.

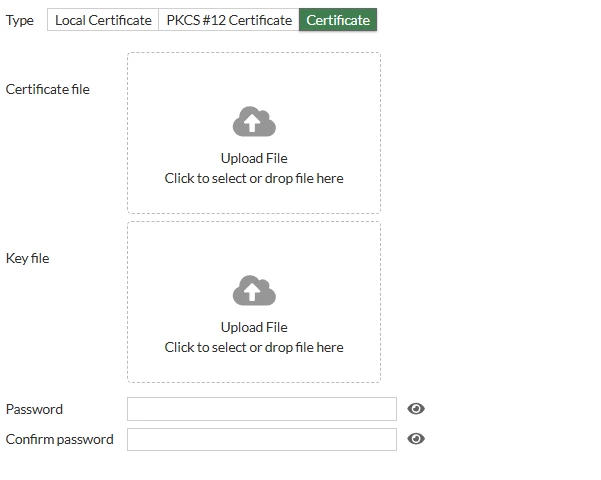

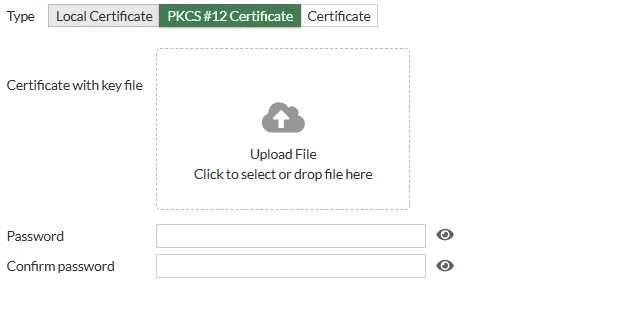

Choose with Certificate + key or Certificate with .p12 Format.

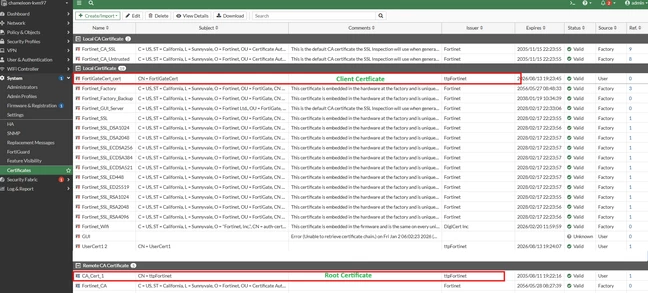

Here, the Root CA is tftpFortinet, and the Server/Entity/Client Certificate is FortiGateCert_cert.

The same procedure must be followed on the peer device.

Step 3. Configure IPSec tunnels on both the Firewalls, and then choose the authentication as Signature instead of Pre-Shared Key.

Technical Tip: How to set up IPsec VPN between two FortiGates (Using VPN Setup wizard and custom profile)

Local Firewall:

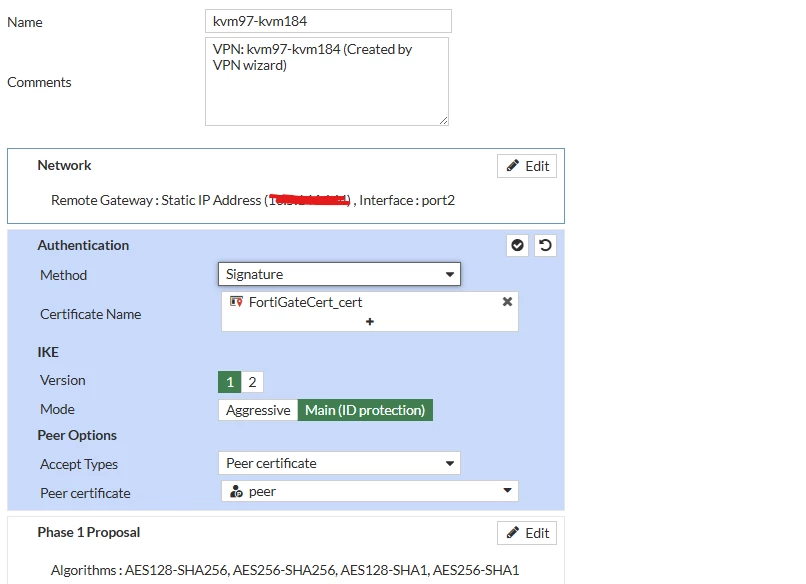

1. Choose the Entity Certificate as the imported Server Certificate, which has a .p12 format.

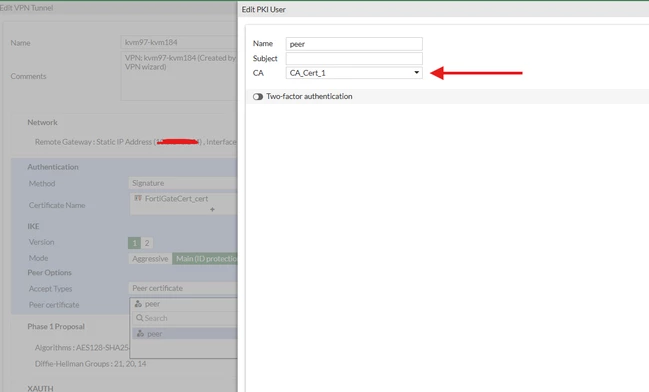

2. For the Peer Certificate, create a new PKI user, enter the required name, and select the imported Root CA.

All other configurations remain the same; only the authentication method should be changed from Pre-Shared Key to Signature.

The same steps must be followed for the Remote Firewall.

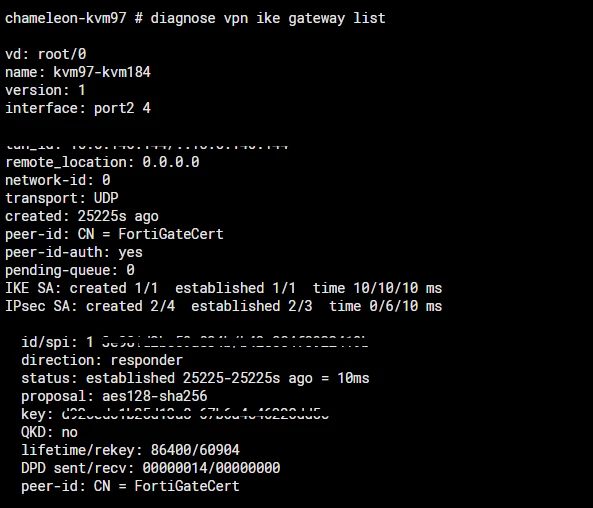

Sample output:

Use the following CLI commands to verify tunnel status:

IPSec using FortiGate default certificates:
