Technical Tip: Sending Logs from FortiGate to Multiple FortiAnalyzers

Description

This article describes how to configure FortiGate to send logs to multiple FortiAnalyzers and verify the connectivity between them.

Scope

FortiAnalyzer/FortiGate.

Solution

It is possible to have FortiGate send logs to 3 different FortiAnalyzers.

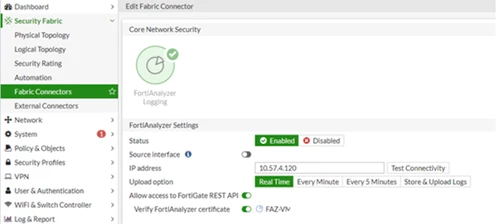

Only the first FortiAnalyzer can be added via the GUI under Security Fabric -> Fabric Connector -> FortiAnalyzer Logging.

The other 2 FortiAnalyzers’ IP addresses and Serial Number, can only be added using the CLI:

config log fortianalyzer2 setting

set status enable

set server x.x.x.x

set serial FAZ-VMYYYYYYY

set upload-option <realtime/1-minute/5-minute>

end

config log fortianalyzer3 setting

set status enable

set server x.x.x.x

set serial FAZ-VMYYYYYYY

set upload-option <realtime/1-minute/5-minute>

end

Run the following commands to test the connectivity and verify if logs are sent to all 3 FortiAnalyzers. Verify also the FortiAnalyzer Host Name and Serial Number.

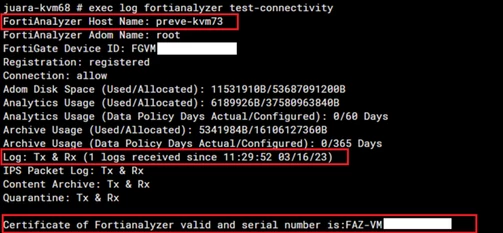

execute log fortianalyzer test-connectivity <----- Test 1st FortiAnalyzer.

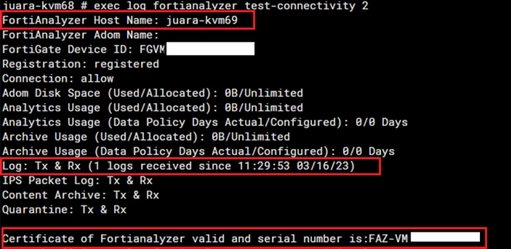

execute log fortianalyzer test-connectivity 2 <----- Test 2nd FortiAnalyzer.

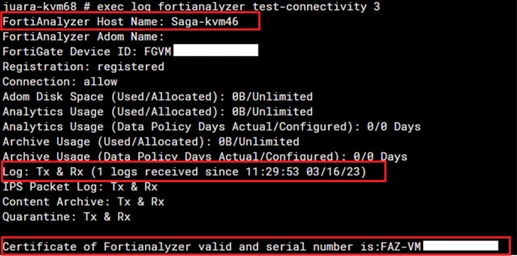

execute log fortianalyzer test-connectivity 3 <----- Test 3rd FortiAnalyzer.
