Technical Tip: Self-originated traffic through an IPsec tunnel without using Loopback

Assume the following topology:

192.168.10.0 ------- FortiGate1--------- IPsec --------- FortiGate2 -------- 192.168.1.X.

The proposed configuration will make it possible to produce a ping from a local FortiGate1 to the resource 192.168.1.X behind the remote FortiGate2 without using ping-options to select an interface.

First, it is necessary to assign an IP to the IPsec tunnel interface, for this, refer to: Configure IP address on an IPSec tunnel i... - Fortinet Community.

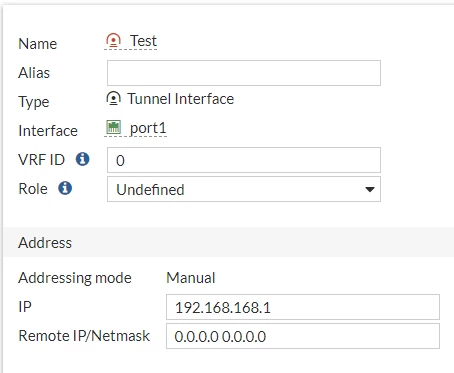

In this example, the assigned IP address to the tunnel interface will be 192.168.168.1:

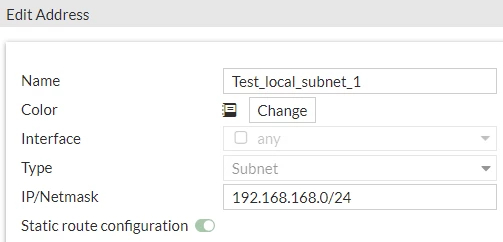

After this, it will be necessary to create an Address Object with the IP assigned to the tunnel interface and add it to the phase2 selectors on both devices. From the FortiGate1 side, it would be added as a local phase2 selector, and in the FortiGate2, it will be added as a remote phase2 selector:

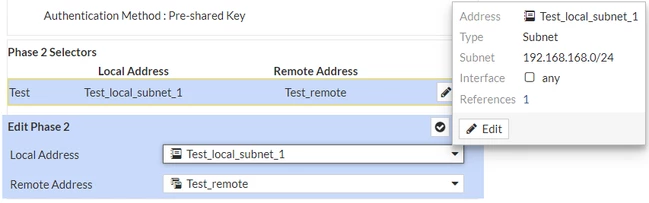

FortiGate1:

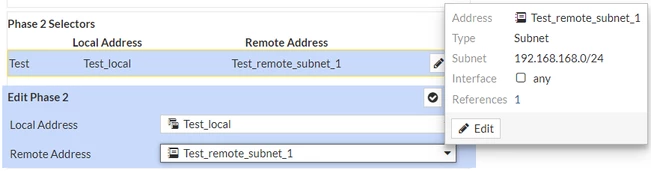

FortiGate2:

To conclude, it will be necessary to configure this address in the Firewall Policy for the incoming traffic from the tunnel in the FortiGate2:

This will make it possible to reach resources behind the remote FortiGate2 from the IPsec tunnel interface in the local FortiGate1:

Routing table for Test=0
S*      0.0.0.0/0 [5/0] via 104.157.124.1, wan, [1/0]
S       192.168.1.0/24 [10/0] via Test tunnel RemotePublicIP, [1/0]
C       192.168.168.1/32 is directly connected, Test

diagnose ip address list
IP=3.134.156.191->3.134.156.191/255.255.255.0 index=5 devname=wan
IP=127.0.0.1->127.0.0.1/255.0.0.0 index=13 devname=root
IP=10.255.1.1->10.255.1.1/255.255.255.0 index=17 devname=fortilink
IP=127.0.0.1->127.0.0.1/255.0.0.0 index=19 devname=vsys_ha
IP=127.0.0.1->127.0.0.1/255.0.0.0 index=21 devname=vsys_fgfm
IP=192.168.168.1->192.168.168.1/255.255.255.255 index=22 devname=Test
