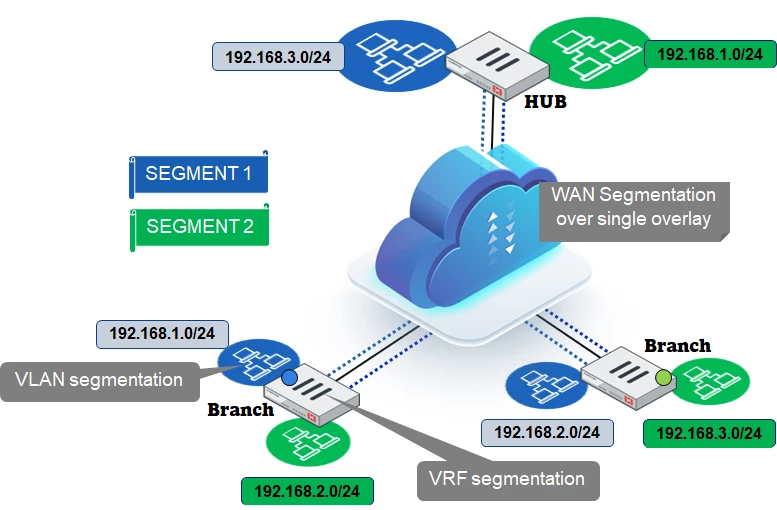

| Fortinet Secure SD WAN Solution can be configured to have a separate control plane and data plane per segment. The segregation of the Control Plane from the Data Plane is achieved using the feature 'End-to-End Segmentation over Single Overlay'. The separation of the management plane is achieved through the FGFM tunnel to FortiManager. For example, if a deployment has Segment 1 and Segment 2, each Segment is configured with a VRF ID. The traffic flow (data plane) and route propagation (control plane) for each VRF ID is segmented. This feature would be ideal for deployments that need any or all of the below: - Segmentation of Data Plane and Control Plane. - Overlapping IP space across multiple sites. - Multi-tenancy. The 'End-to-End Segmentation over Single Overlay' feature was introduced in FortiOS 7.2.0.
  In the below configuration, note the command added to the VPN Phase1 Interface setting 'set encapsulation vpn-id-ipip'. It adds an additional encrypted IP header is added to the ESP frame, representing VRF ID. This ID is used on the remote end to 'demux' the packets into the right CE VRFs. This encapsulation supports hardware acceleration (SOC4, NP6, NP7). In BGP Configuration, the LAN-facing VRFs are assigned the role 'CE' and the IPSEC Overlay (vrf aware) is assigned the role 'PE'. # config vpn ipsec phase1-interface
edit "SPOKE_MPLS-A"
set type dynamic
set interface "port1"
set ike-version 2
set peertype any
set net-device disable
set exchange-ip-addr4 10.202.0.254
set proposal aes256-sha256
set add-route disable
set dpd on-idle
set auto-discovery-sender enable
set encapsulation vpn-id-ipip
set network-overlay enable
set network-id 21
set psksecret ENC XXX
set dpd-retrycount 2
set dpd-retryinterval 5
next
end
# config router bgp
set as 65001
# config vrf
edit "0"
set role pe
next
edit "1"
set role ce
set rd "65001:1"
set export-rt "65001:1"
set import-rt "65001:1"
next
edit "2"
set role ce
set rd "65001:2"
set export-rt "65001:2"
set import-rt "65001:2"
next
edit "4"
set role ce
set rd "65001:4"
set export-rt "65001:4"
set import-rt "65001:4"
next
end
end Output (Lines removed for brevity): FGT # get router info routing-table all Routing table for VRF=0 S* 0.0.0.0/0 [10/0] via 192.168.0.254, port10, [1/0]
S 10.200.0.1/32 [15/0] via SPOKE_MPLS-T tunnel 10.0.0.4, [5/0]
[15/0] via SPOKE_MPLS-A tunnel 10.200.0.1, [5/0]
S 10.200.0.2/32 [15/0] via SPOKE_MPLS-A tunnel 10.0.0.7, [5/0]
[15/0] via SPOKE_MPLS-T tunnel 10.200.0.2, [5/0]
S 10.200.0.3/32 [15/0] via SPOKE_MPLS-T tunnel 10.0.0.5, [5/0]
[15/0] via SPOKE_MPLS-A tunnel 10.200.0.3, [5/0]
S 10.200.0.4/32 [15/0] via SPOKE_MPLS-T tunnel 10.0.0.6, [5/0]
[15/0] via SPOKE_MPLS-A tunnel 10.200.0.4, [5/0] … Routing table for VRF=1: …. B V 10.101.1.0/24 [200/0] via 10.200.0.1 [4] (recursive via SPOKE_MPLS-T tunnel 10.0.0.4 [5]), 1d11h41m
(recursive via SPOKE_MPLS-A tunnel 10.200.0.1 [5]), 1d11h41m, [1/0]
B V 10.101.3.0/24 [200/0] via 10.201.0.254 (recursive via H2H_VPN1_MPLS-A tunnel 172.21.1.5 [1]), 1d11h41m
(recursive via H2H_VPN1_MPLS-T tunnel 172.21.2.5 [1]), 1d11h41m, [1/0]
[200/0] via 10.204.0.254 (recursive via H2H_VPN3_MPLS-A tunnel 172.24.1.5 [1]), 1d11h41m
(recursive via H2H_VPN3_MPLS-T tunnel 172.24.2.5 [1]), 1d11h41m, [1/0] Routing table for VRF=2: ... B V 10.102.2.0/29 [200/0] via 10.200.0.2 [4] (recursive via SPOKE_MPLS-A tunnel 10.0.0.7 [5]), 1d11h42m
(recursive via SPOKE_MPLS-T tunnel 10.200.0.2 [5]), 1d11h42m, [1/0]
B 10.103.1.0/24 [200/0] via 192.168.99.1, CORP_odcA1, 01w6d18h, [1/0]
B V 10.103.2.0/29 [200/0] via 10.200.0.3 [4] (recursive via SPOKE_MPLS-T tunnel 10.0.0.5 [5]), 1d11h42m
(recursive via SPOKE_MPLS-A tunnel 10.200.0.3 [5]), 1d11h42m, [1/0]
B 10.104.1.0/24 [200/0] via 192.168.99.1, CORP_odcA1, 01w3d03h, [1/0]
C 192.168.99.0/30 is directly connected, CORP_odcA1 Routing table for VRF=4: ... B V 10.102.4.0/29 [200/0] via 10.200.0.2 [4] (recursive via SPOKE_MPLS-A tunnel 10.0.0.7 [5]), 1d11h42m
(recursive via SPOKE_MPLS-T tunnel 10.200.0.2 [5]), 1d11h42m, [1/0]
B 10.103.1.0/24 [200/0] via 192.168.99.1, CORP_odcC1, 01w6d18h, [1/0]
B V 10.103.4.0/29 [200/0] via 10.200.0.3 [4] (recursive via SPOKE_MPLS-T tunnel 10.0.0.5 [5]), 1d11h42m
(recursive via SPOKE_MPLS-A tunnel 10.200.0.3 [5]), 1d11h42m, [1/0]
B 10.104.1.0/24 [200/0] via 192.168.99.1, CORP_odcC1, 01w3d03h, [1/0]
C 192.168.99.0/30 is directly connected, CORP_odcC1 |
