Technical Tip: SD-WAN route selection for fib-best-match option

This article describes a change in the behavior of the 'set tie-break fib-best-match' option that has been extended to consider only the best routes.

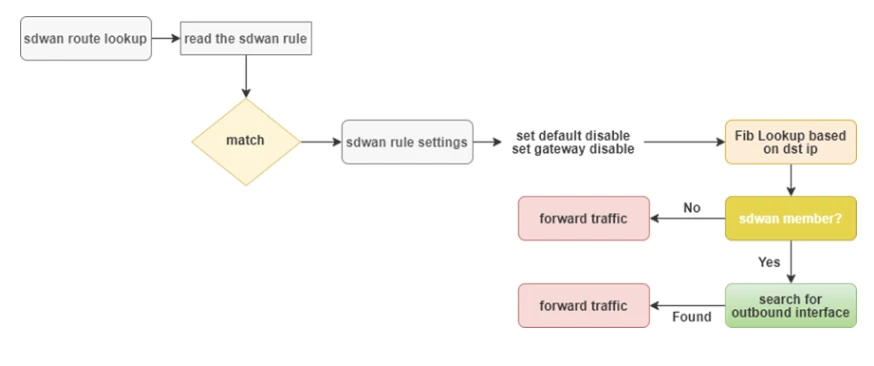

In SD-WAN service rules, if the 'set default' and 'set gateway' options are disabled, a FIB lookup will occur based on the destination IP address. If there is an FIB match, and the interface is an SD-WAN member, the next SD-WAN service rule will not be checked, even if this FIB match is not the best.

Since v7.0.1, there has been a change in default behavior.  The 'set tie-break fib-best-match' option is extended to consider only the best routes.

This works on Manual Mode (manual), Best quality strategy (priority), and Lowest cost (SLA) strategy SD-WAN service modes.

SD-WAN members, the routing table and FIB are the same in all 3 examples:

Members:

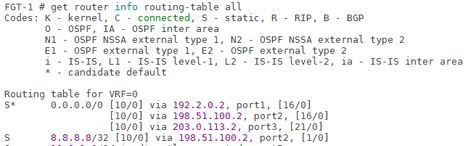

Route:

FIB:

One member is in the SD-WAN service rule:

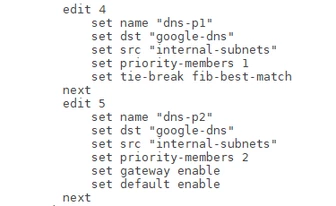

In the example below, two SD-WAN service rules have been configured. Service Rule ID 4 is associated with a single SD-WAN member (Member 1) and uses the tie-break method 'fib-best-match'. Service Rule ID 5 is associated with SD-WAN Member 2 and its gateway, with default settings enabled.

Member 1 (Port 1) has a default route, while Member 2 (Port 2) is configured with a specific destination subnet of 8.8.8.8/32, using the longest-prefix match.

When a user attempts to access the destination IP 8.8.8.8, the firewall validates the SD-WAN rules using a top-down approach. According to this approach, SD-WAN Service Rule ID 4 is selected. This rule has only one member and at least one valid route to the destination, namely the default route (0.0.0.0/0). Consequently, the longest-prefix match criterion is not applicable in this scenario. If no valid route exists via SD-WAN Member 1 (Port 1), the system then proceeds to evaluate the next SD-WAN rule.

Service:

Policy route match:

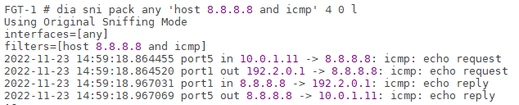

Packet capture:

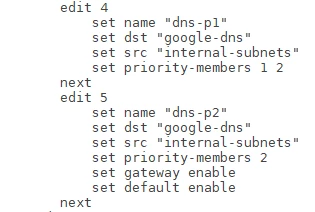

Two members are in the SD-WAN service, without 'set tie-break fib-best-match' configured:

SD-WAN member 1 has a default route, and SD-WAN member 2 has the most specific match in the FIB with the longest prefix, 8.8.8.8/32.  Packets will egress SD-WAN member 1, as it has a valid route (default route) and is configured as the priority member.

Service:

Policy route match:

Packet capture:

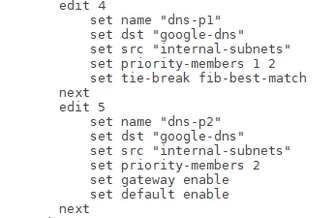

Two members are in the SD-WAN service, with 'set tie-break fib-best-match' configured:

SD-WAN member 1 is configured as the priority member and has a default route. SD-WAN member 2 has the most specific match in the FIB with the longest prefix 8.8.8.8/32.  By configuring 'set tie-break fib-best-match', packets will egress SD-WAN member 2.

Service:

Policy route match:

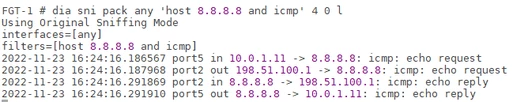

Packet capture:
