Technical Tip: SD-WAN link status update through automation stitch feature

Description

This article describes how to update the SD-WAN link status through the automation stitch feature.

Solution

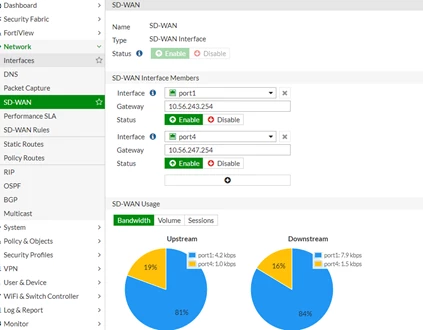

1. Once the WAN links are successfully configured into SD-WAN deployment.

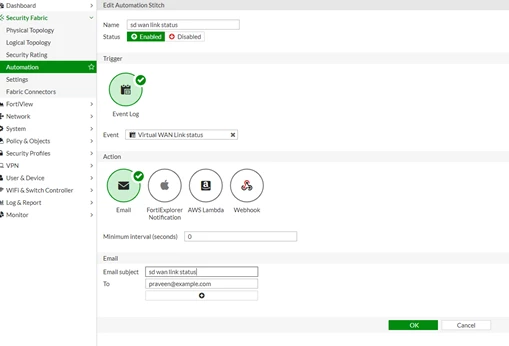

2. It is possible to configure an automation stitch profile, as below under Security Fabric -> Automation.







   Select TRIGGER =Event Log 'Virtual WAN Link Status' and Action =Email.

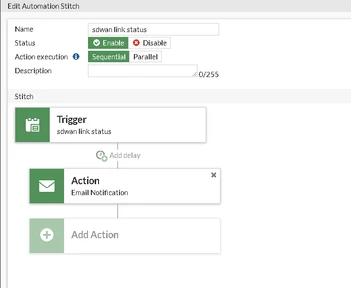

   In version 7.0 and above the event log trigger has been changed.

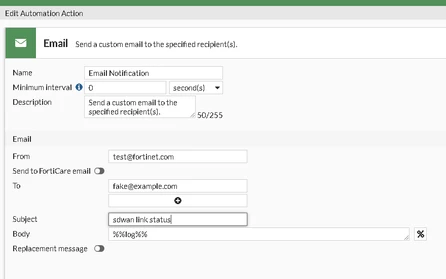

   Select TRIGGER =Event Log 'Sdwan link status' and Action =Email.

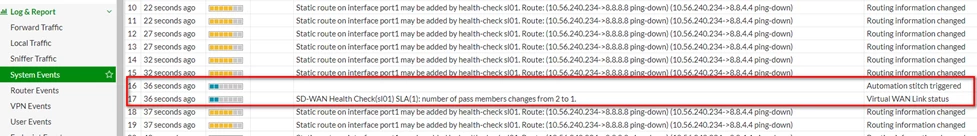

3. When there is any SD-WAN link status change UP/DOWN, an email alert to the configured email address will be received.
