Technical Tip: SD-WAN Automation script for Member out of SLA status

To receive emails with CLI scripts to know the reason for the 'out of sla' trigger for a member, it is essential to configure the automation stitch as per below.

Navigate to Security Fabric -> Automation -> Stitch -> Create New.

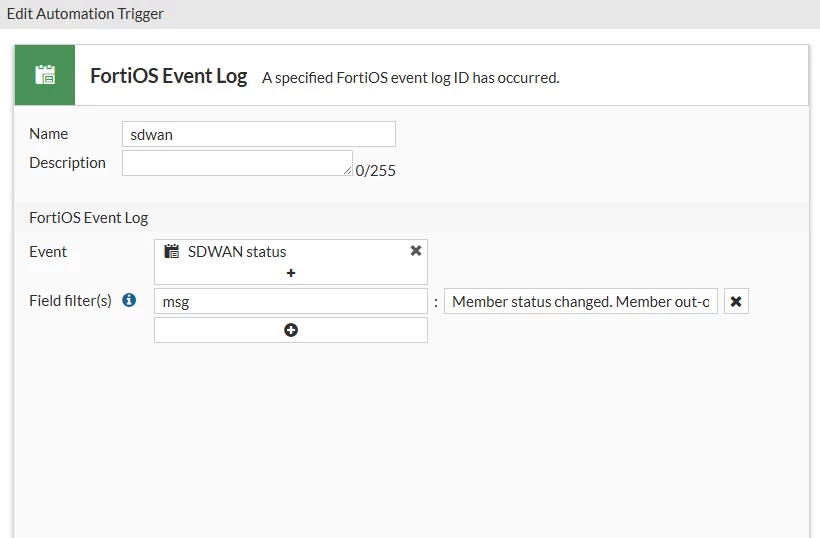

1. Configure the trigger to include the filter.

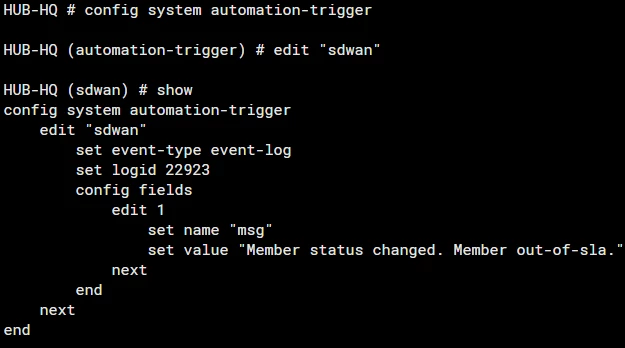

Additionally, on CLI,  the event-type is set to 'event-log', and the logid is set to 22923.

The logid references can be verified on the link below.

22923 - LOG_ID_EVENT_VWL_LQTY_STATUS

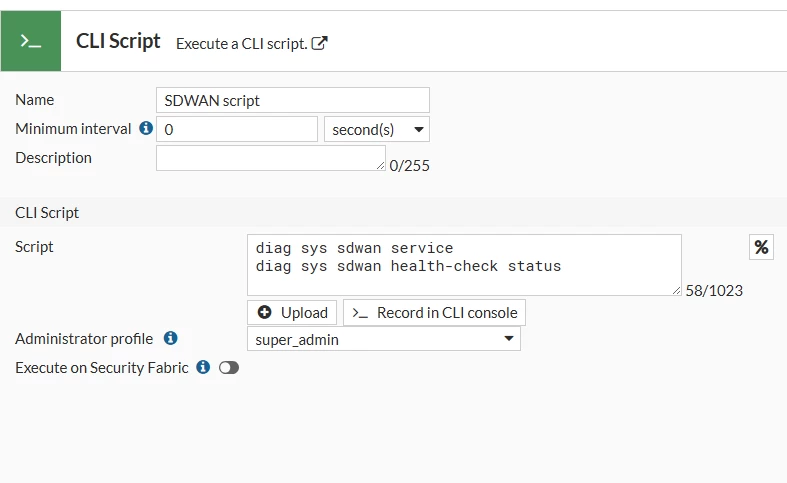

2. Next step, configure the Action parameters



   Note: The first Action will be the CLI script, and the second Action will be the Email Notification.

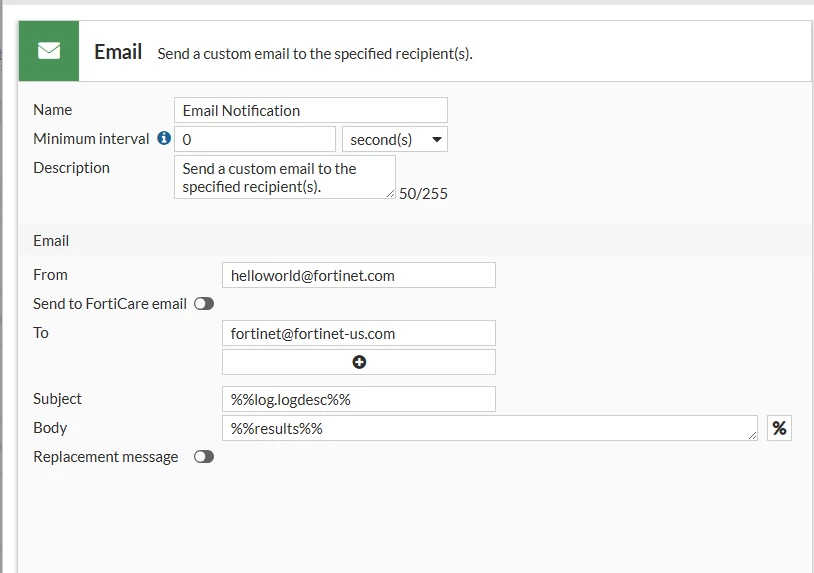

3. Configure the second Action parameter.

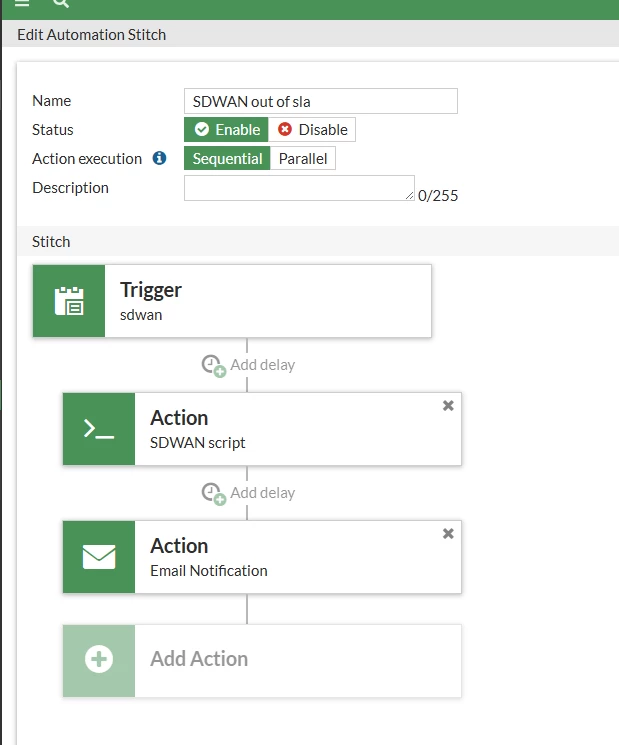

After all this is done, the overall configuration will be as per below.

Note: Ensure to use the appropriate email address for the sender and recipient. Follow the screenshots for the CLI scripts, and additional commands can be added as per the requirements.
