Technical Tip: Scheduled SSL VPN/Dial-up connectivity via Local-in-Policy

Description

The article describes how to use the schedule to restrict access of SSL-VPN/Dial-up IPsec VPN using Local-in-Policy.
With the default configuration, SSL VPNs/Dialup IPsec VPNs are always accessible to all public addresses on Internet.

Scope

FortiGate.

Solution

In this example, SSL VPN/Dial-up VPN will only be accessible from Monday to Friday from 09:00 AM to 06:00 PM every day and will be blocked during off-business hours.

1. Configure two recurring schedules

One will be for weekdays, and another will be for weekends.

config firewall schedule recurring

    edit "DENY-OFF-BH-MON-FRI"

        set start 18:01

        set end 08:59

        set day  Monday Tuesday Wednesday Thursday Friday

    next

        edit "DENY-OFF-BH-SAT-SUN"

            set day Sunday Saturday

        next

  end

config firewall schedule group

    edit "Schedule"

        set member "DENY-OFF-BH-MON-FRI" "DENY-OFF-BH-SAT-SUN"

    next

end

2. Configure firewall address object for SSL VPN server IP/Dialup IPsec listening IP (i.e., Public IP configured on Firewall):

config firewall address

    edit "PUBLIC-IP"

        set allow-routing enable

        set subnet x.x.x.x 255.255.255.255

    next

end

3. Configure service for SSL VPN port and Dial-up VPN ports:



config firewall service custom

    edit "SSLVPN"

        set category "Network Services"

        set tcp-portrange 10443

    next

end

Service for Dial-Up VPN Ports exists in the 'Services (Under Policy and Object)'.

config firewall service custom

    edit "IKE"

        set category "Tunneling"

        set udp-portrange 500 4500

    next

end

4. Configure the SSL VPN following this document:

SSL VPN

Configure the Dial-UP VPN following this article:
Technical Tip: How to configure a FortiGate as IPsec VPN Dial-Up client when FortiGate is not behind a NAT unit

5. Configure the firewall local-in-policy.



Note:

It is possible to have a GUI visibility of this feature when it is enabled under System -> Feature Visibility -> Additional Features -> Local In Policy.
While local-in policies can only be configured via the CLI in earlier versions, starting from v7.6.0, they can be configured directly through the GUI.

If there are other site to site VPN tunnel configured with the same 'PUBLIC-IP', make sure to create an address object for those trusted remote vpn peers' IPs and add them to the address group.

Create a local-in-policy with source as those trusted remote vpn peer IPs address group and set action as allow.

config firewall local-in-policy

    edit 1

        set intf "port1"

        set srcaddr "Trustedvpnpeerip’s"

        set dstaddr "PUBLIC-IP"

        set service "IKE"

        set schedule "always"

        set action accept

    next

end

CLI:

config firewall local-in-policy

    edit 1

        set intf "port2"

        set srcaddr "all"

        set dstaddr "PUBLIC-IP"

        set service "SSLVPN"

        set schedule " Schedule "

    next

    edit 2

        set intf " port2"

        set srcaddr "all"

        set dstaddr "PUBLIC-IP"

        set service "IKE"

        set schedule "Schedule"

    next

end

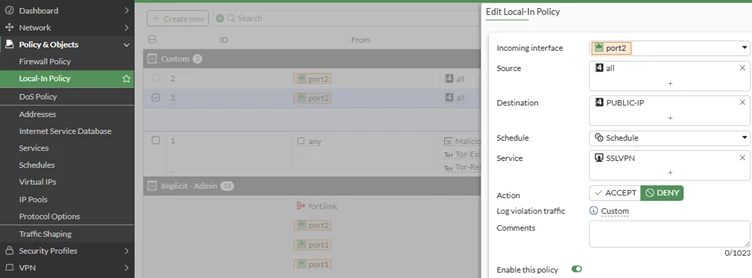

GUI:

Result:
SSL VPN service will not be available during off-business hours.
