Technical Tip: Rules about VLAN configuration and VDOM interface assignment
Description
This article describes the rules when creating VLAN and VDOM interface assignment.
Scope
FortiOS 6.0 and above.
Solution
VLAN:
- VLANs can be created on any physical or aggregate (802.3ad) interfaces.
- The same VLAN number cannot be configured twice on the same physical interface.
- The same VLAN number can be used on different physical interfaces.
- The usable VLAN ID range is from 1 to 4094.
VDOM interface assignment:
- Two VDOMs cannot share the same interface or VLAN.
- A VLAN sub-interface can belong to a different VDOM than the physical interface it is attached to.

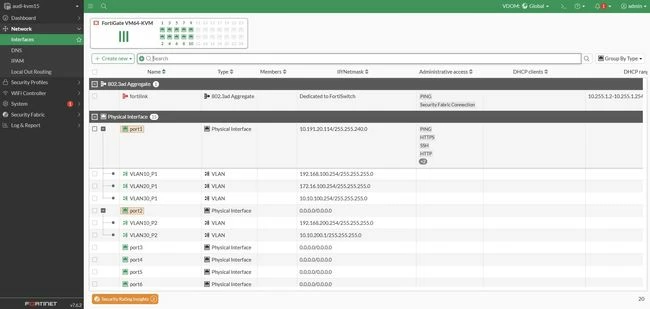

Example of VLAN setting and VDOM assignment:
VDOM 'Customer1':
- Physical interface port1.

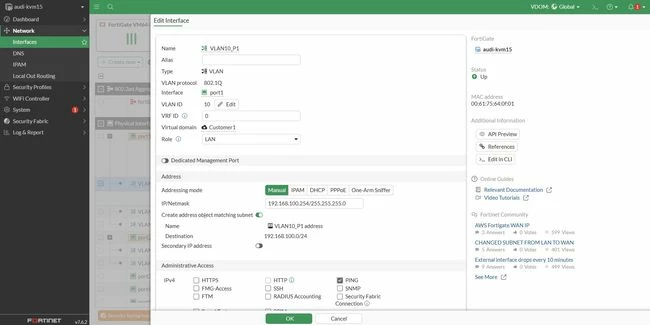

- VLAN10_P1 (VLAN ID 10 on port1).
CLI Configuration:
config system interface
edit "VLAN10_P1"
set vdom "Customer1"
set ip 192.168.100.254 255.255.255.0
set device-identification enable
set role lan
set snmp-index 24
set ip-managed-by-fortiipam disable
set interface "port1"
set vlanid 10
next
end
- VLAN20_P1 (VLAN ID 20 on port1)CLI Configuration:
config system interface
edit "VLAN20_P1"
set vdom "Customer1"
set ip 172.16.100.254 255.255.255.0
set device-identification enable
set role lan
set snmp-index 25
set ip-managed-by-fortiipam disable
set interface "port1"
set vlanid 20
next
end
VDOM 'Customer2'.
- physical interface port2.

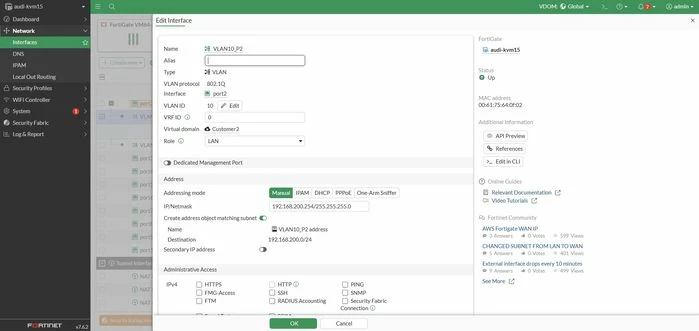

- VLAN10_P2 (VLAN ID 10 on port2).
CLI Configuration:
config system interface
edit "VLAN10_P2"
set vdom "Customer2"
set ip 192.168.200.254 255.255.255.0
set device-identification enable
set role lan
set snmp-index 26
set ip-managed-by-fortiipam disable
set interface "port2"
set vlanid 10
next
end
VDOM 'Customer3':
VLAN30_P1 (VLAN ID 30 on port1):
CLI Configuration:
config system interface
edit "VLAN30_P1"
set vdom "Customer3"
set ip 10.10.100.254 255.255.255.0
set device-identification enable
set role lan
set snmp-index 27
set ip-managed-by-fortiipam disable
set interface "port1"
set vlanid 30
next
end

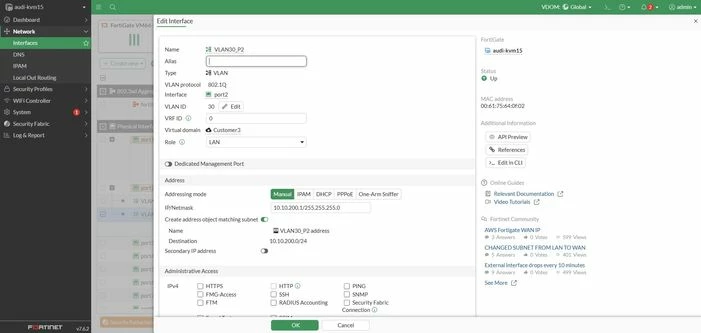

- VLAN30_P2 (VLAN ID 30 on port2).
CLI Configuration:
config system interface
edit "VLAN30_P2"
set vdom "Customer3"
set ip 10.10.200.1 255.255.255.0
set device-identification enable
set role lan
set snmp-index 28
set ip-managed-by-fortiipam disable
set interface "port2"
set vlanid 30
next
end
For the maximum number of VLANs or VDOMs, refer to the Maximum Values Matrix in FortiCare documents.
For additional information about VLANs and VDOMs, consult the VLAN and VDOM Guide.
