Technical Tip: Route traffic between two VDOM from different clusters

Forum|Forum|1 year ago
October 14, 2024
0 replies
966 views

Description

This article describes the steps to configure routing between a VDOM on a FortiGate cluster to a VDOM from another FortiGate cluster.

Scope

FortiGate.

Solution

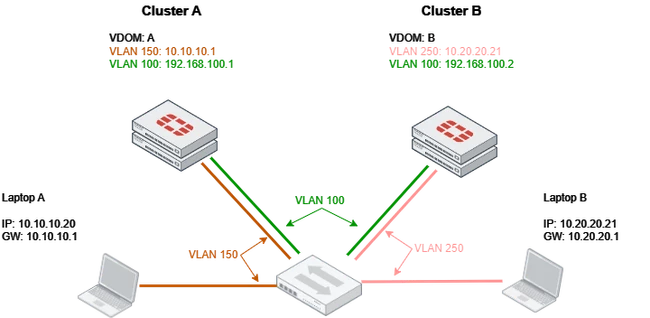

Topology:


In this example, a Layer 2 switch is being used to interconnect the machines from both subnets and FortiGate clusters using VLANs.

Since these are in the cluster, it is necessary to interconnect both primary and secondary units (from both clusters) to the Layer 2 switch with the correct VLAN tagging.

Configuration:

Cluster A:

First, configure the VLAN interfaces and IP addresses in the global context:

config global

config system interface

edit "VLAN100"

set vdom "A"

set ip 192.168.100.1 255.255.255.252

set interface "wan1"

set vlanid 100

set vdom "A"

set ip 10.10.10.1 255.255.255.0

set allowaccess ping

set interface "wan1"

set vlanid 150

Secondly, configure the policies and static routes under the VDOM A context:

config vdom

edit A

config firewall policy

edit 0

set name "To Cluster B"

set srcintf "VLAN150"

set dstintf "VLAN100"

set action accept

set srcaddr "all"

set dstaddr "all"

set schedule "always"

set service "ALL"

set name "From Cluster B"

set srcintf "VLAN100"

set dstintf "VLAN150"

set action accept

set srcaddr "all"

set dstaddr "all"

set schedule "always"

set service "ALL"

config router static

edit 0

set dst 10.20.20.0 255.255.255.0

set gateway 192.168.100.2

set device "VLAN100"

Cluster B:

Similarly for cluster B, start configuring the VLAN interfaces and IP addresses in the global context:

config global

config system interface

edit "VLAN100"

set vdom "B"

set ip 192.168.100.2 255.255.255.252

set interface "wan1"

set vlanid 100

set vdom "B"

set ip 10.20.20.1 255.255.255.0

set allowaccess ping

set interface "wan1"

set vlanid 250

Secondly, configure the policies and static routes under the VDOM B context

config vdom

edit B

config firewall policy

edit 0

set name "To Cluster A"

set srcintf "VLAN250"

set dstintf "VLAN100"

set action accept

set srcaddr "all"

set dstaddr "all"

set schedule "always"

set service "ALL"

set name "From Cluster A"

set srcintf "VLAN100"

set dstintf "VLAN250"

set action accept

set srcaddr "all"

set dstaddr "all"

set schedule "always"

set service "ALL"

config router static

edit 0

set dst 10.10.10.0 255.255.255.0

set gateway 192.168.100.1

set device "VLAN100"

Now, when the laptop A (10.10.10.20) tries to reach laptop B (10.20.20.21), traffic will flow to the gateway of laptop A - FortiGate VLAN 150 (10.10.10.1) - FortiGate will check the routing table and will forward the traffic to the next hop - VLAN 100 of FortiGate cluster B IP (192.168.100.2).
