Technical Tip: Route-based IPsec site to site redundant VPN failover using BGP

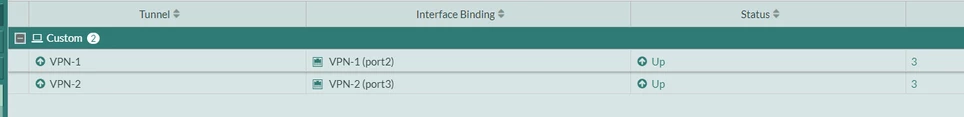

• Configure IPSec Site to Site VPN redundant tunnel for both sites:

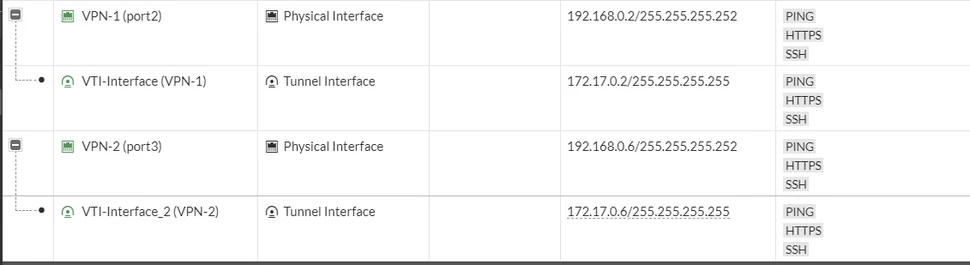

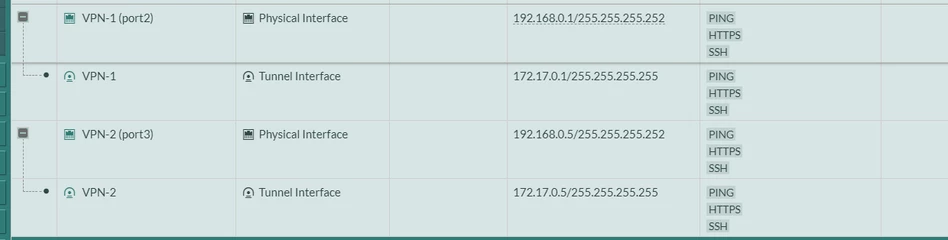

• Assign Tunnel Interface IP for both Sites Tunnel.

Site-1:

Site-2:

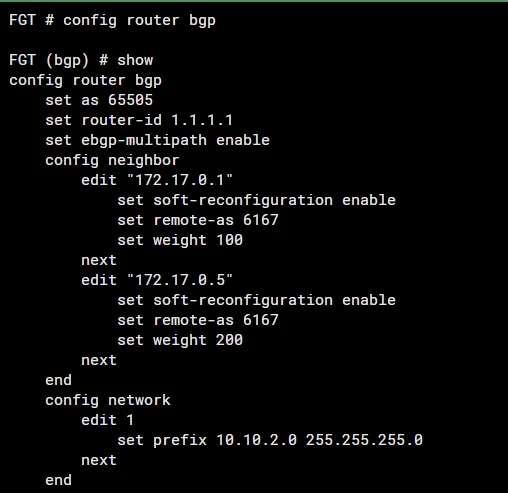

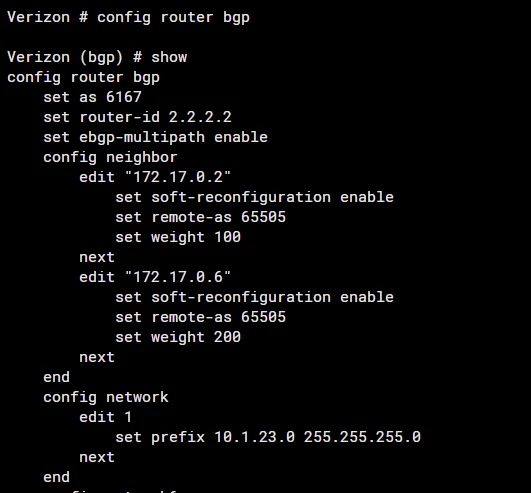

• Configure BGP on both Sites.
• Set weight for neighbors as required.

Site-1:

Site-2:

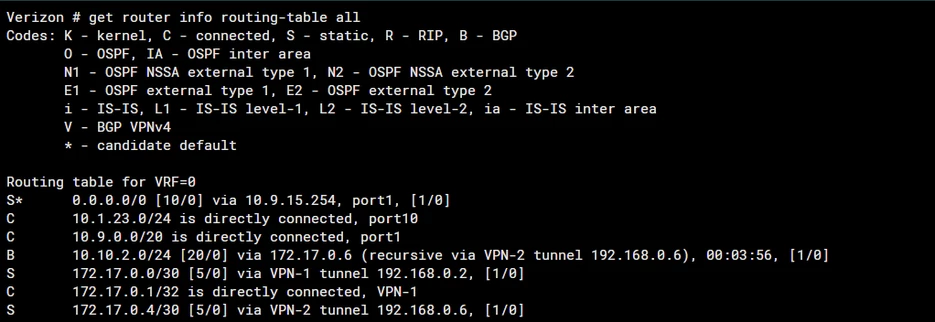

• Check the routing table. VPN Tunnel with higher weight BGP neighbor will get priority.

Site-1:

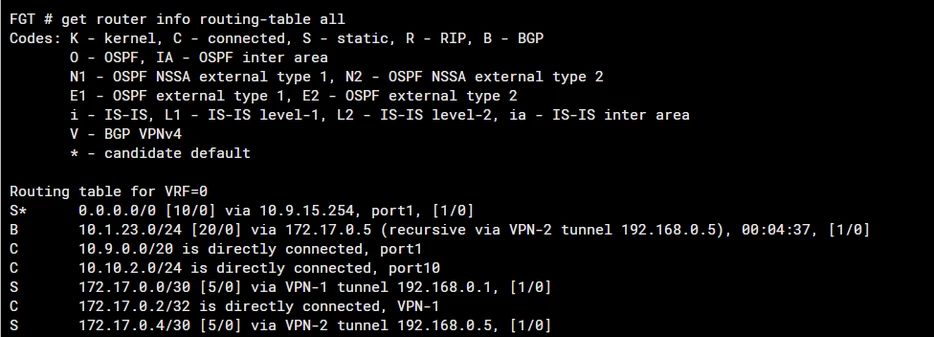

• VPN-2 is active in the routing table as the neighbor weight is higher:

Site-2:

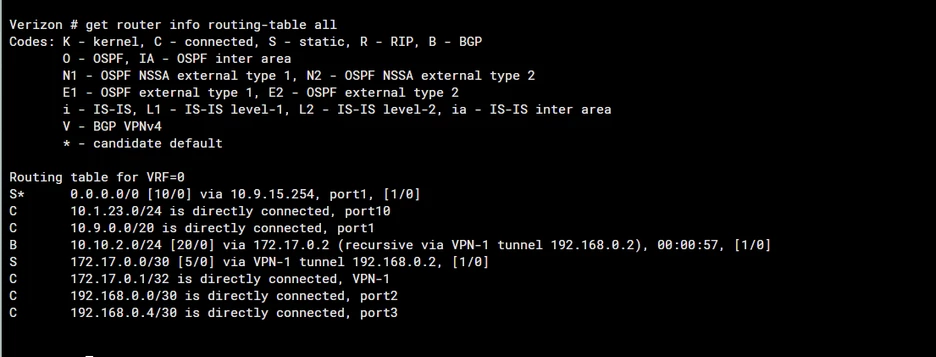

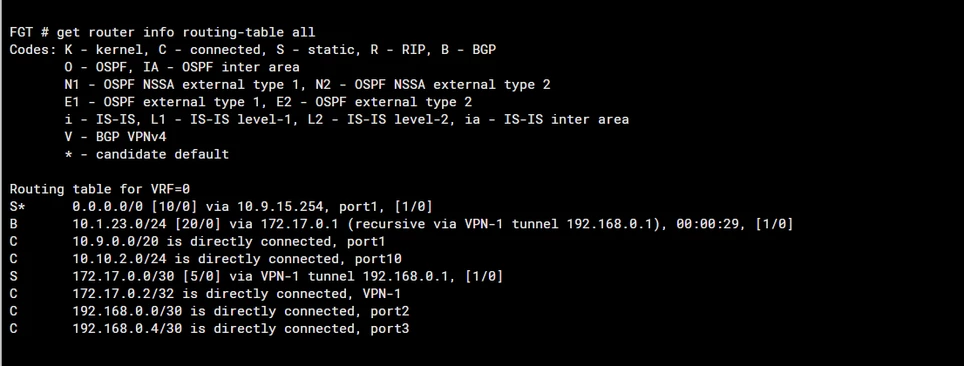

• When Tunnel VPN-2 goes down traffic will be forwarded using Tunnel VPN-1.

Site-1:

Site-2:
