Technical Tip: Role of DHCP relay source-IP on IPSEC with external DHCP server

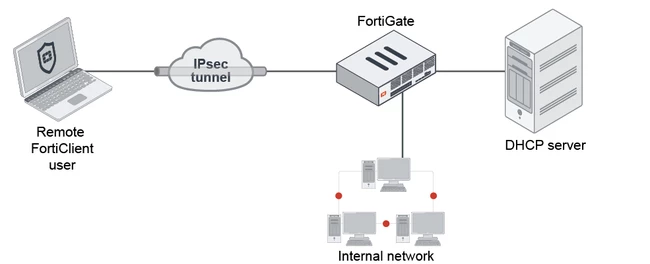

Topology:

• 10.47.5.0/20  -> WAN.
• 10.160.0.0/20 -> DMZ (where the DHCP Server sits).
• 10.200.0.0/20 -> LAN.
• 172.18.72.0/24 -> IPSec users' IP.

The DHCP relay uses the dhcp-relay-source-ip to determine its source IP address. This IP address identifies the source of DHCP requests that are forwarded to the DHCP server. It assists the DHCP server in determining the most appropriate IP address range to assign to clients. If the tunnel interface is unavailable, this may be used as a loopback interface.

Sample configuration:

config system interface
    edit "dhcp_vpn"       --> Remote dialup tunnel interface.
        set vdom "root"
        set dhcp-relay-service enable
        set ip 172.18.72.253 255.255.255.255
        set type tunnel
        set remote-ip 172.18.72.253 255.255.255.0
        set dhcp-relay-ip "10.160.3.114"
        set dhcp-relay-source-ip 10.160.5.63     --> The IP assigned on FortiGate DMZ interface.
        set dhcp-relay-type ipsec
        set interface "port1"
    next
end
