Technical Tip: Restricting route advertisement to EBGP neighbours using the 'no-export' community string
Description
This article describes how to restrict route advertisement only to immediate External BGP (EBGP) neighbours and not to advertise further using the RFC 1997 'no-export' community string.
Scope
FortiGate, EBGP.
Solution
Overview:
- The 'no-export'/'NO_EXPORT' BGP community is a Well-Known Community defined within RFC 1997. When applied to a prefix that is advertised to an eBGP neighbor, it allows that neighbor to receive and install the route, but NOT propagate it to other EBGP peers:
Well-known Communities The following communities have global significance and their operations shall be implemented in any community-attribute-aware BGP speaker. NO_EXPORT (0xFFFFFF01) All routes received carrying a communities attribute containing this value MUST NOT be advertised outside a BGP confederation boundary (a stand-alone autonomous system that is not part of a confederation should be considered a confederation itself). [...]
- The Communities path attribute was first supported in BGP version 2 and continues to be supported in all subsequent versions (unless noted otherwise).
- In the following example configuration, FGT1 uses an outbound route-map to apply the 'no-export' community to all advertised prefixes matching Rule 1 (in this, 172.16.10.0/24). Any prefix not matching this rule will be denied from being advertised by the implicit deny rule.
- While FGT2 will be able to receive and install this prefix, it will not forward 172.16.10.0/24 towards other EBGP peers, such as FGT3.

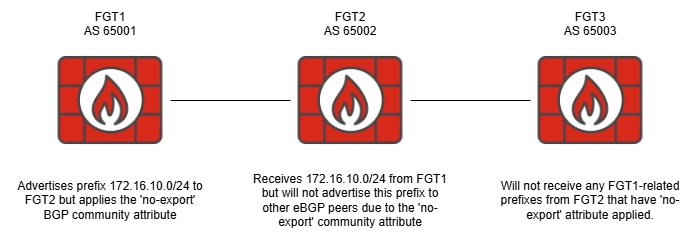

Topology:
Configuration required on FGT1:
config router route-map
edit 'community-test'
config rule
edit 1
set set-community 'no-export' <--- No matching criteria is set, so all prefixes can match this rule and have the 'no-export' community applied.
next
end
next
end
config router bgp
set as 65001
set router-id 1.1.1.1
config neighbor
edit '172.31.133.109'
set soft-reconfiguration enable
set remote-as 65002
set route-map-out 'community-test'<--- Outbound route-map will apply 'no-export' community attribute to prefixes advertised out to this neighbor (FGT2).
next
end
config network
edit 2
set prefix 172.16.10.0 255.255.255.0
next
end
end
Verification:
On FGT1, 172.16.10.0/24 is seen being advertised to FGT2 (neighbor 172.31.133.109):
FGT1 # get router info bgp summary
BGP router identifier 1.1.1.1, local AS number 65001
BGP table version is 10
1 BGP AS-PATH entries
1 BGP community entries
Neighbor V AS MsgRcvd MsgSent TblVer InQ OutQ Up/Down State/PfxRcd
172.31.133.109 4 65002 5815 5963 9 0 0 00:03:12 0
Total number of neighbors 1
FGT1 # get router info bgp neighbors 172.31.133.109 advertised-routes
BGP table version is 7, local router ID is 1.1.1.1
Status codes: s suppressed, d damped, h history, * valid, > best, i - internal
Origin codes: i - IGP, e - EGP, ? - incomplete
Network Next Hop Metric LocPrf Weight RouteTag Path
*> 172.16.10.0/24 172.31.133.31 100 32768 0 i <-/->
Total number of prefixes 1
On FGT2, 172.16.10.0/24 has been successfully received from FGT1 (neighbor 172.31.133.31):
FGT2 # get router info bgp summary
VRF 0 BGP router identifier 2.2.2.2, local AS number 65002
BGP table version is 3
1 BGP AS-PATH entries
0 BGP community entries
Neighbor V AS MsgRcvd MsgSent TblVer InQ OutQ Up/Down State/PfxRcd
172.31.133.31 4 65001 5571 5582 0 0 0 00:04:01 1
172.31.135.173 4 65003 5555 5584 2 0 0 00:04:02 0
Total number of neighbors 2
FGT2 # get router info bgp neighbors 172.31.133.31 received-routes
VRF 0 BGP table version is 1, local router ID is 2.2.2.2
Status codes: s suppressed, d damped, h history, * valid, > best, i - internal
Origin codes: i - IGP, e - EGP, ? - incomplete
Network Next Hop Metric LocPrf Weight RouteTag Path
*> 172.16.10.0/24 172.31.133.31 0 0 65001 i <-/->
Total number of prefixes 1
On FGT3, the prefix 172.16.10.0/24 cannot be seen in the received-routes output, as FGT2 is not forwarding this FGT1-based prefix since 'no-export' was applied:
FGT3 # get router info bgp summary
BGP router identifier 3.3.3.3, local AS number 65003
BGP table version is 1
1 BGP AS-PATH entries
0 BGP community entries
Neighbor V AS MsgRcvd MsgSent TblVer InQ OutQ Up/Down State/PfxRcd
172.31.133.109 4 65002 5646 5626 0 0 0 00:06:13 1
Total number of neighbors 1
FGT3 # get router info bgp neighbors 172.31.133.109 received-routes<--- No output observed.
For comparison, the following would be seen if FGT1 had not applied the 'no-export' community attribute to the prefix:
FGT3 # get router info bgp neighbors 172.31.133.109 received-routes
BGP table version is 1, local router ID is 3.3.3.3
Status codes: s suppressed, d damped, h history, * valid, > best, i - internal
Origin codes: i - IGP, e - EGP, ? - incomplete
Network Next Hop Metric LocPrf Weight RouteTag Path
*> 172.16.10.0/24 172.31.133.31 0 0 65002 65001 i
Total number of prefixes 1
