Technical Tip: Remote browsing over IPSec VPN tunnel

  • August 22, 2019
  • 0 replies
  • 26528 views

Description


This article describes how to configure FortiGate to allow remote browsing over IPSec VPN tunnel.



Scope



FortiGate.

Solution


Remote browsing over IPSec VPN tunnel:

In this example, 2 FortiGates (FortiGate A and FortiGate C) have established a VPN tunnel and local subnet in FortiGate C (10.221.0.0/16) will require to access Internet via VPN_TO_FGTA tunnel.

Configuration in FortiGate C:



  1. Create a default route in FortiGate C to make sure all other traffic besides VPN will go through VPN tunnel:




Another option is to create a policy route for this if you only want to send a specific subnet traffic through IP Sec tunnel and the remaining traffic through local ISP.

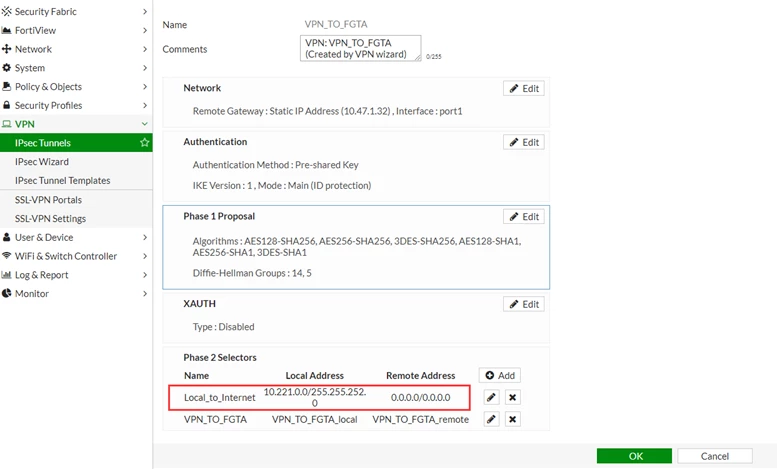

  1. On VPN phase 2 selectors, create a new selector with a local address pointing to 10.221.0.0/16 and a remote address set to 0.0.0.0/0.0.0.0

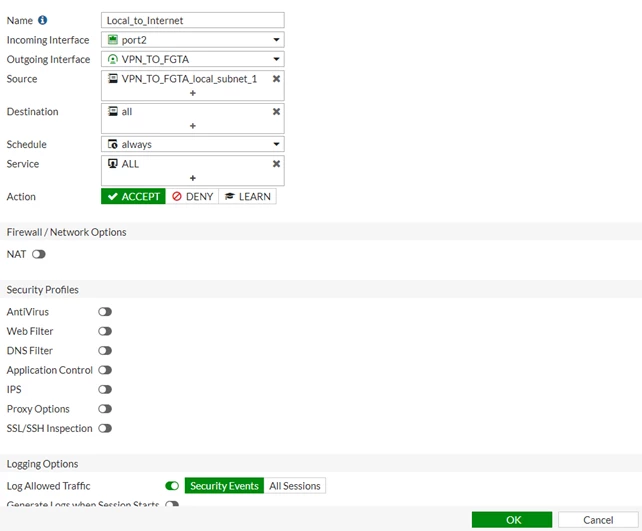

  1. Create a firewall policy for the local subnet to access the internet over a VPN tunnel:

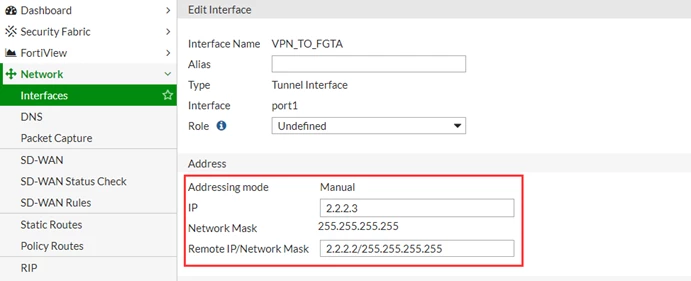

  1. Set an IP address and remote address on the VPN tunnel, go to Network -> Interfaces.


Configuration in FortiGate A:

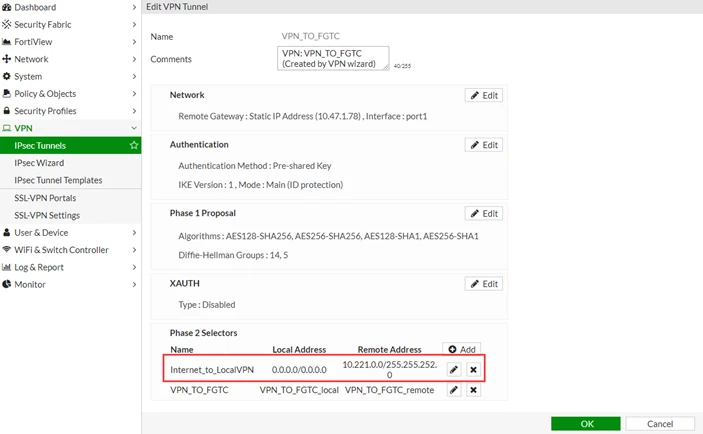

  1. Configure phase 2 selectors in the VPN tunnel:

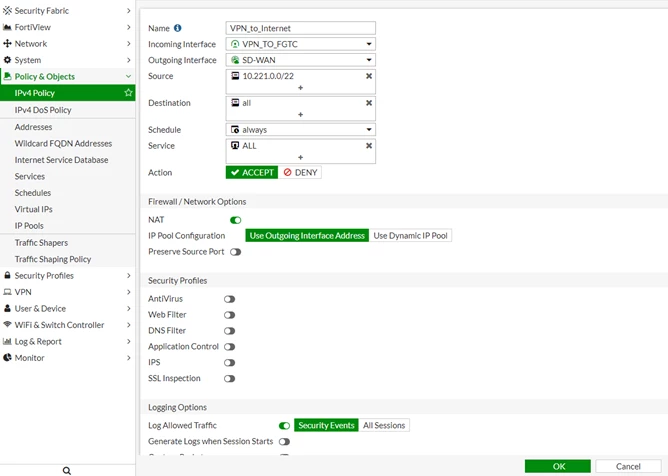

  1. Create a firewall policy for VPN users to access to Internet:

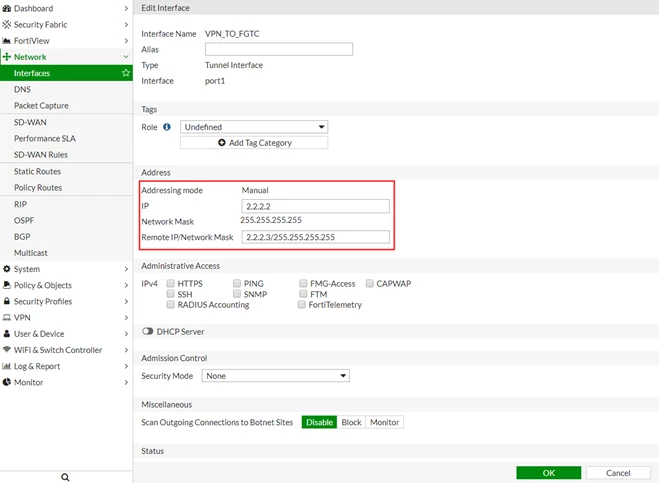

  1. Set an IP address and remote address on VPN tunnel, go to Network -> Interfaces.

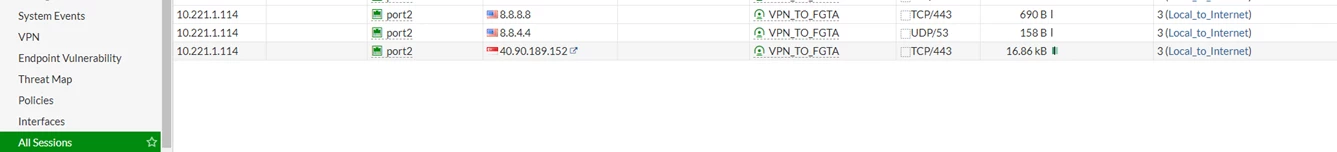

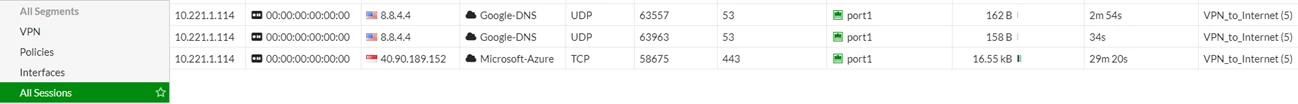

Test results in FortiGate A:
