Technical Tip: Remote access dialup VPN connection fails with 'traffic selectors unacceptable' error

  • November 4, 2024
  • 0 replies
  • 7052 views
Description

This article describes an issue when a remote user cannot connect to the dialup VPN from FortiClient and IKE debug (for details on how to run IKE debugging see Troubleshooting Tip: IPsec tunnel (debugging IKE)) outputs give the following error messages (outputs truncated). In this example, IKEv2 is being used.



ike 0: comes 192.168.10.2:500->192.168.10.1:500,ifindex=5,vrf=0.... <----- Connection started.
ike 0:Dialup:50: responder received AUTH msg
ike 0:Dialup:50: auth verify done
ike 0:Dialup:50: responder AUTH continuation
ike 0:Dialup:50: authentication succeeded                       <----- Authentication succeeded.
ike 0:Dialup:50: responder creating new child
ike 0:Dialup:50: mode-cfg type 1 request 0:''
ike 0:Dialup: mode-cfg allocate 172.16.1.1/0.0.0.0              <----- 172.16.1.1 was assigned to the client.
ike 0:Dialup:50: mode-cfg using allocated IPv4 172.16.1.1
ike 0:Dialup:50:32: peer proposal:
ike 0:Dialup:50:32: TSi_0 0:0.0.0.0-255.255.255.255:0
ike 0:Dialup:50:32: TSr_0 0:0.0.0.0-255.255.255.255:0
ike 0:Dialup:50:Dialup:32: comparing selectors
ike 0:Dialup:50:Dialup:32: matched by rfc-rule-4
ike 0:Dialup:50:Dialup:32: phase2 matched by intersection
ike 0:Dialup:50:Dialup:32: using mode-cfg override 0:172.16.1.1-172.16.1.1:0
ike 0:Dialup:50:32: remote selectors don't match
ike 0:Dialup:50:32: my proposal:                                <----- Phase 2 Selectors of the FortiGate.
ike 0:Dialup:50:32: TSi_0 0:172.16.4.0-172.16.4.255:0           <----- Remote Address.
ike 0:Dialup:50:32: TSr_0 0:192.168.20.0-192.168.20.255:0       <----- Local Address.
ike 0:Dialup:50:Dialup:32: error constructing dialup selectors
ike 0:Dialup:50::32: failed to match peer selectors
ike 0:Dialup:50: responder preparing AUTH msg
ike 0:Dialup: adding new dynamic tunnel for 192.168.10.2:500
ike 0:Dialup_0: tunnel created tun_id 172.16.1.1/::10.0.0.7 remote_location 0.0.0.0
ike 0:Dialup_0: added new dynamic tunnel for 192.168.10.2:500
ike 0:Dialup_0:50: established IKE SA a3d8cab174bee21e/46ab029f2c49791a
ike 0:Dialup_0:50: check peer route: if_addr4_rcvd=0, if_addr6_rcvd=0, mode_cfg=1
ike 0:Dialup_0:50: processing INITIAL-CONTACT
ike 0:Dialup_0: flushing
ike 0:Dialup_0: flushed
ike 0:Dialup_0:50: processed INITIAL-CONTACT
ike 0:Dialup_0:50: mode-cfg assigned (1) IPv4 address 172.16.1.1
ike 0:Dialup_0:50: mode-cfg assigned (2) IPv4 netmask 255.255.255.255
ike 0:Dialup_0:50: mode-cfg send (13) 0:192.168.20.0/255.255.255.0:0
ike 0:Dialup_0:50:32: traffic selectors unacceptable

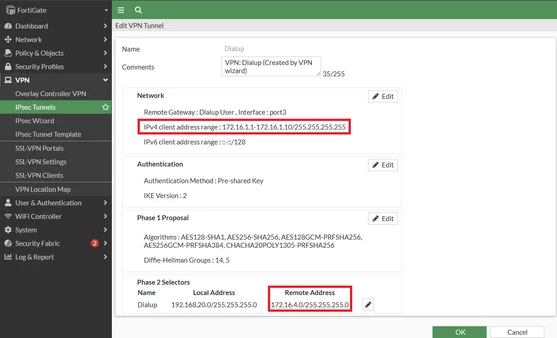

In the example above, 172.16.1.1 was assigned to the client. However, the 'Remote Address' under phase 2 selectors is 172.16.4.0/24, which does not include 172.16.1.1. Below is an example configuration on the GUI.



Scope FortiGate.
Solution

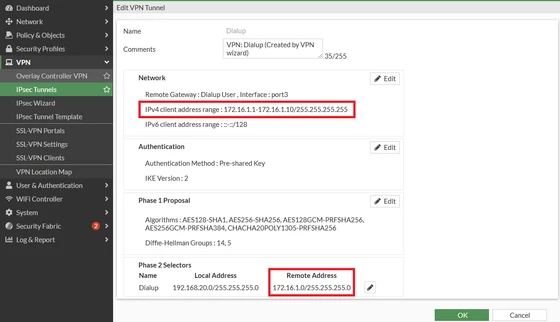

To resolve this issue, make sure the 'IPv4 client address range' matches the 'Remote Address' under phase 2 selectors as shown below.



Note:

It is also possible to set 'Local Address' and 'Remote Address' to 0.0.0.0/0.0.0.0.

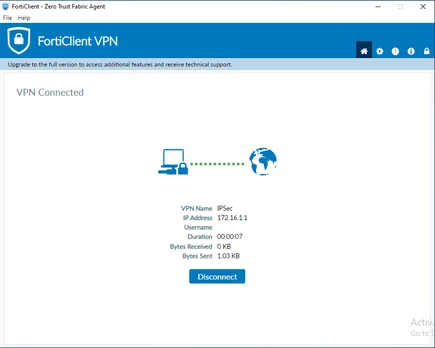

After that, the client can connect.



connected from.PNG



Note:

  • For IKEv2, FortiClient will use EAP-MSCHAPv2.
  • For this setup to work, the remote RADIUS server must support EAP-MSCHAPv2 authentication (EAP-MS-CHAP) (Microsoft NPS, for example).
  • Another possible cause is that phase2 encapsulation mode is different. To modify the config, use the following command:



config vpn ipsec phase2-interface

    edit <PHASE2_NAME_HERE>

        set encapsulation <tunnel-mode or transport-mode>

    next

end
