Technical Tip: Quarantine IP address lost after reboot/shutdown/upgrade

  • January 8, 2020
  • 0 replies
  • 26578 views

Description


This article describes the issue when the Quarantine IP address is lost after a reboot.



Scope



FortiGate.

Solution


The quarantine user list will be removed after device reboot/shutdown because the list is saved in volatile memory.
Source 'ban IP' is kept in the kernel rather than in any specific application engine and can be queried by APIs.

Before reboot or upgrade, if the address is showing as quarantine, any quarantine user/IP in the backup configuration file cannot be found.
The monitor list is a log for monitoring, and it will not sync over to the secondary firewall, it will also show the same behavior when the device is in HA.

Follow the steps to ban quarantine IP with FortiView in FortiGate:

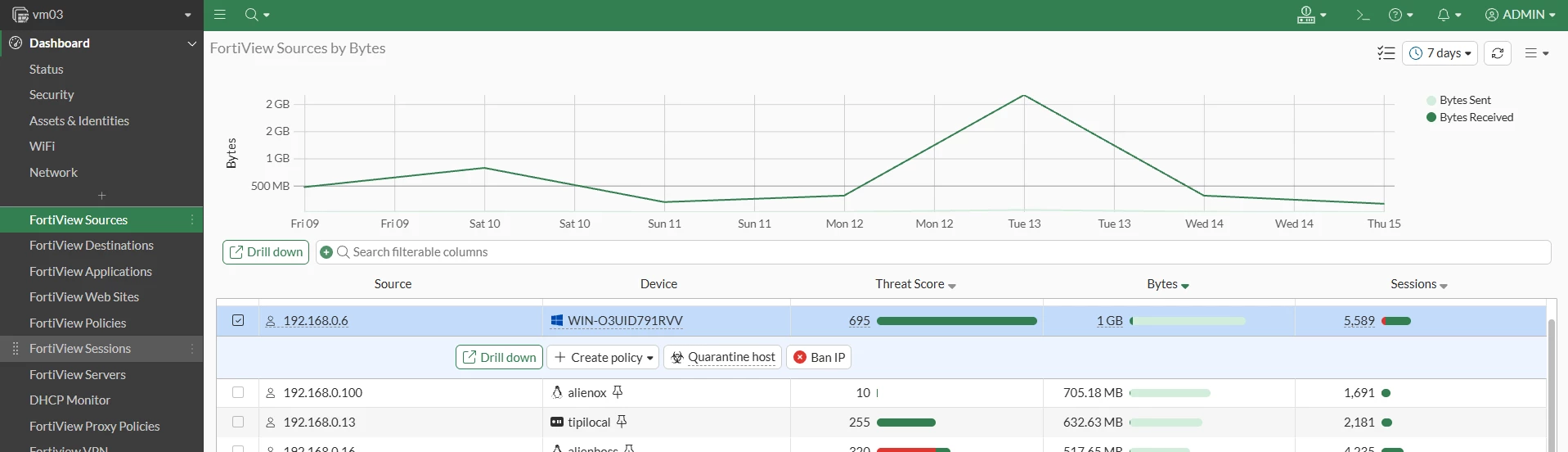

To block quarantine IP, go to FortiView -> Sources and select the source to ban, and select Ban IP:

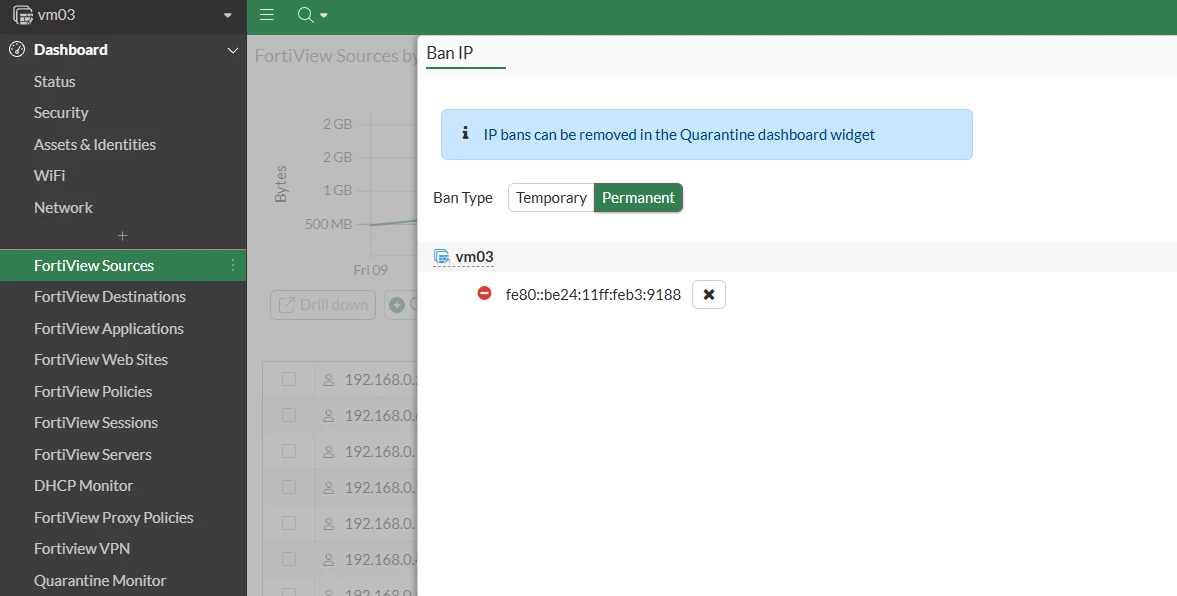

After selecting Ban IP, specify the Ban type.
In this case, 'Permanent' has been selected:

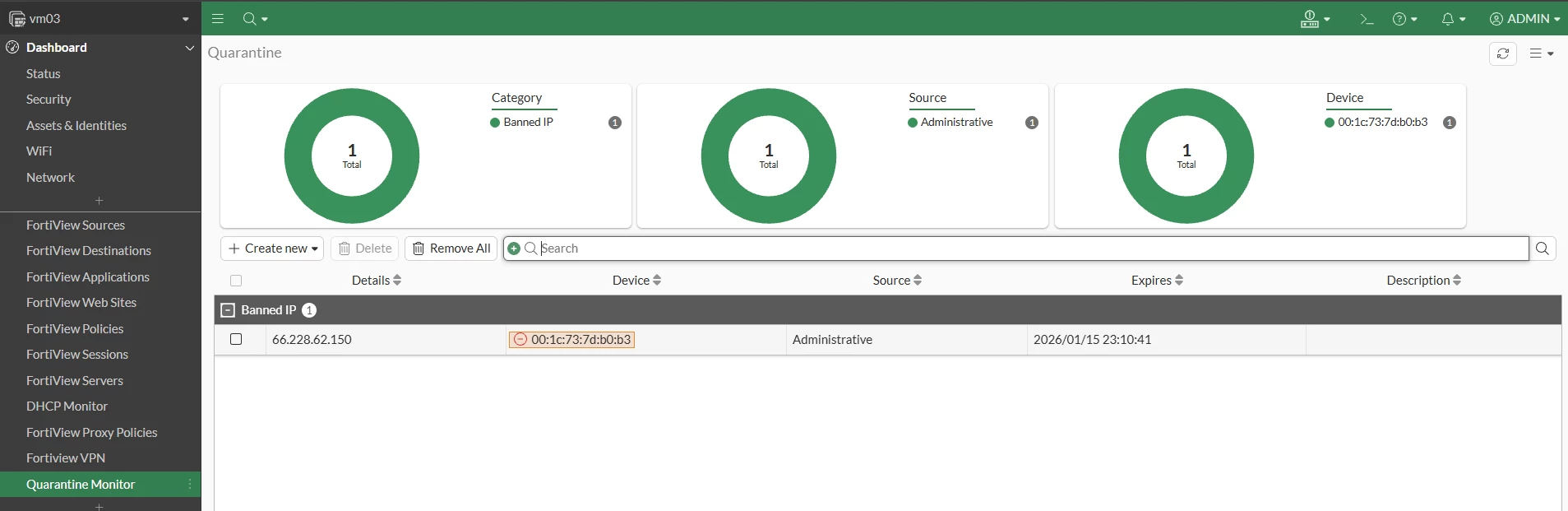

To view the banned IP on the GUI, go to Monitor -> Quarantine Monitor:

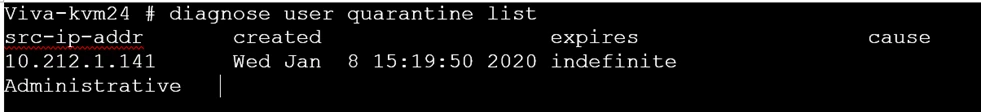

It is also possible to view the quarantined IP using the CLI:

diagnose user quarantine list


For modern versions of FortiOS (v7.2 onwards), the syntax changed to:

diagnose user banned-ip list

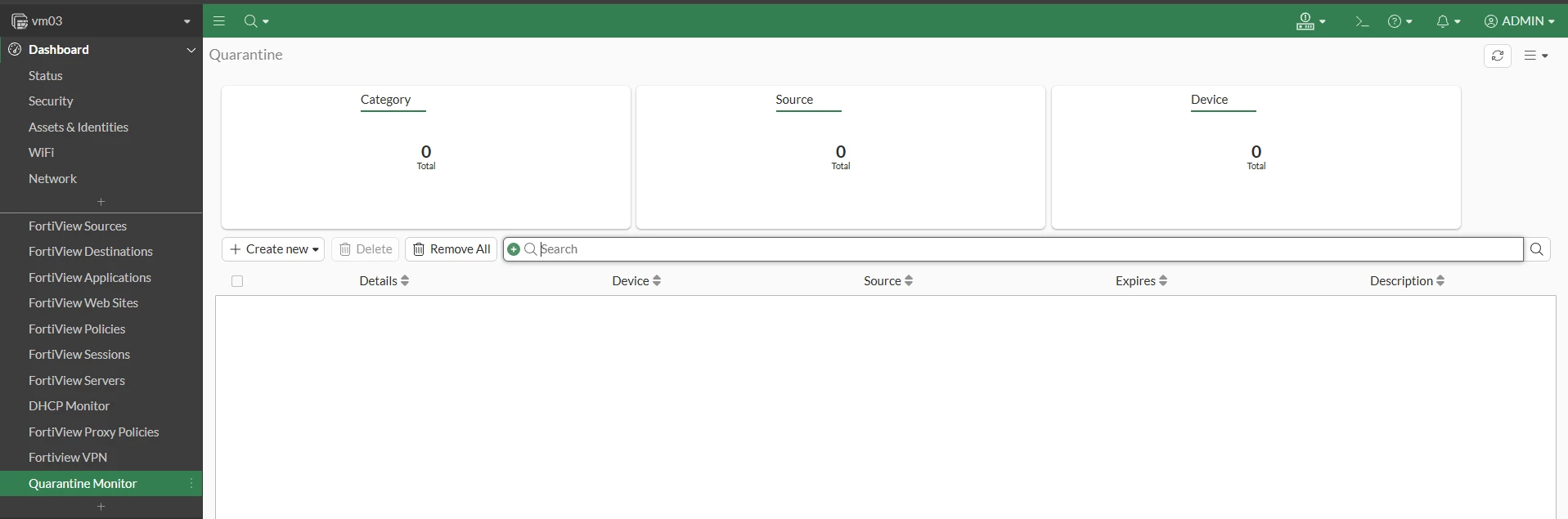

Post reboot or upgrade firmware, IP address removed from Quarantine monitor list:


From the CLI:

diagnose user quarantine list


For modern versions of FortiOS (v7.2 onwards), the syntax changed to:

diagnose user banned-ip list


Best practices:
This is an expected behavior. Configure the firewall policy to block instead, if permanent quarantine is required.
