Technical Tip: Public Fortinet DNS unable to resolve domain name on Authoritative DNS server

This article describes how to use the FortiGuard DNS server for Domain Name resolution. Authoritative DNS servers that are not compliant with RFC 6891 (https://datatracker.ietf.org/doc/html/rfc6891) are returning FORMERR, SERVFAIL, or query times out.

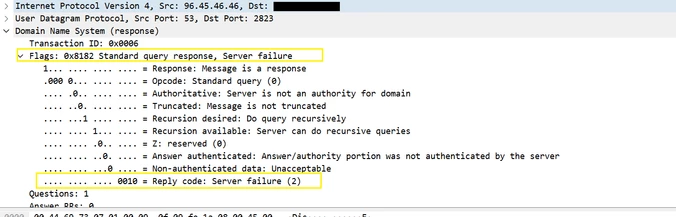

Sample DNS response from FortiGuard DNS server:

Some public DNS servers as Google DNS server 8.8.8.8 or CloudFlare DNS server are using a workaround to resolve Domain Name hold on Authoritative DNS servers non RFC 6891 compliant.

DNS resolution example with Public FortiGuard DNS and Google DNS:

FortiGuard (Not resolved):

dig <DomainNameNotCompliantwithRFC6891> @208.91.112.52

<Truncated>

;; ->>EADER<<- opcode: QUERY, status: SERVFAIL, id: 49963

;; flags: qr rd ra; QUERY: 1, ANSWER: 0, AUTHORITY: 0, ADDITIONAL: 1

<Truncated>

Google (Resolved):

dig <DomainNameNotCompliantwithRFC6891> @8.8.8.8

<Truncated>

;; ->>HEADER<<- opcode: QUERY, status: NOERROR, id: 14604

;; flags: qr rd ra; QUERY: 1, ANSWER: 1, AUTHORITY: 0, ADDITIONAL: 1

<Truncated>

;; ANSWER SECTION:

<DomainNameNotCompliantwithRFC6891>               3600    IN      A       @ipFortinet

<Truncated>

To check if the Authoritative DNS server related to the domain name is compliant with RFC6891, go to the website:

DNS flag day 2020

To check if the remote authoritative servers are not EDNS-compliant:

EDNS Compliance Tester

Workaround:

Configure DNS forwarding for the domain to use Google DNS:

config system dns-database
     edit "<DomainNameNotCompliantwithRFC6891>"
         set domain "<DomainNameNotCompliantwithRFC6891>"
         set authoritative disable
         set forwarder "8.8.8.8"
     next
end

Use the below for more information about DNS conditional forwarding:Technical Tip: DNS conditional forwarding

To fix the issue, update the DNS software on Authoritative DNS servers that are not RFC 6891 compliant or use Google DNS.
