Technical Tip: Prevent FortiGate DNS being overwritten by mobile provider DNS from FortiExtender connection

Description

This article describes the situation when utilizing a FortiExtender interface for SD-WAN and the mobile ISP DNS is overriding the FortiGate system DNS.

This can be a problem as often DNS servers provided by the mobile carrier only allow connections for carrier clients.
In this case, DNS traffic across all other SD-WAN member interfaces will fail.

This behavior is caused by the ‘set dns-server-override‘ being enabled by default on interface settings and the fact that often a mobile ISP provides services via DHCP.

Scope

FortiGate.

Solution

To correct it, disable this setting under the FortiExtender virtual interface on the FortiGate.

Disabling this prevents the interface from using a DNS server acquired via DHCP or PPPoE.

config system interface
    edit <name of your FortiExtender interface>
        set dns-server-override disable
end

Note:

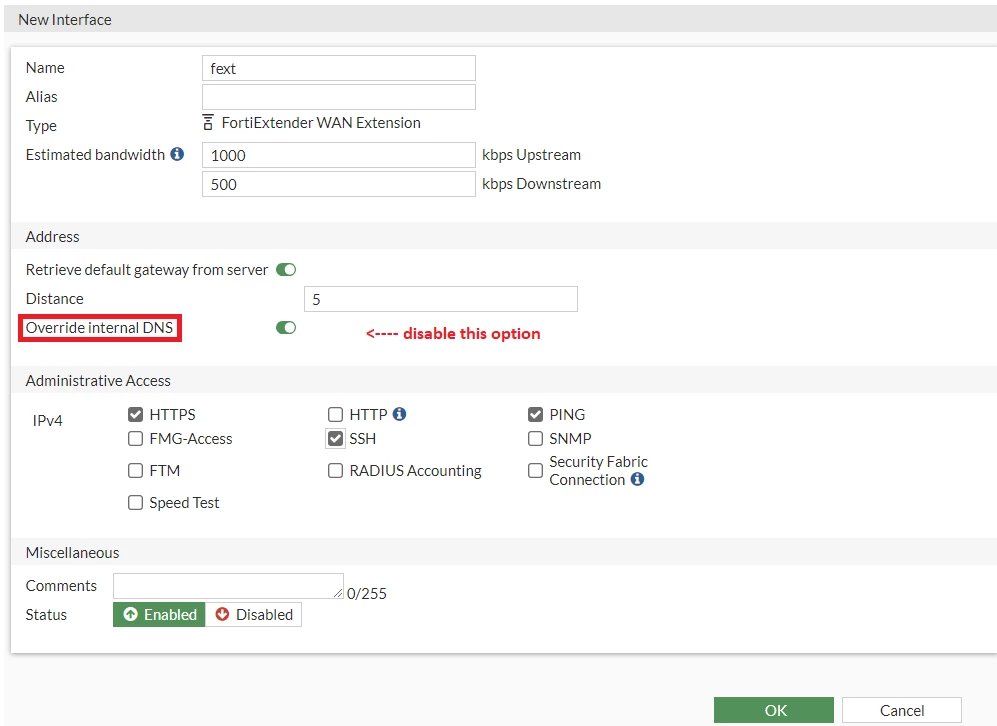

This is also applicable for other internet providers or LTE modems that utilize DHCP.  The 'Override internal DNS' option is also available under another interface such as WAN1 or WAN2.
