Technical Tip: Packet Capture via GUI using an admin with Read-Write permission on Packet Capture only

  • August 4, 2025
  • 0 replies
  • 773 views
Description

This article describes how to do packet capture via GUI using an admin with Read-Write permission on Packet Capture only.



Starting FortiOS v7.4 and above, when a FortiGate that is managed by FortiManager (Login Mode: Read-Only), for an admin with Read-Write permission on packet capture only to work on the GUI, an admin user with Read-Write permission (at least on system configuration and packet capture) needs to save the packet capture settings.
Scope FortiOS v7.4 and above.
Solution

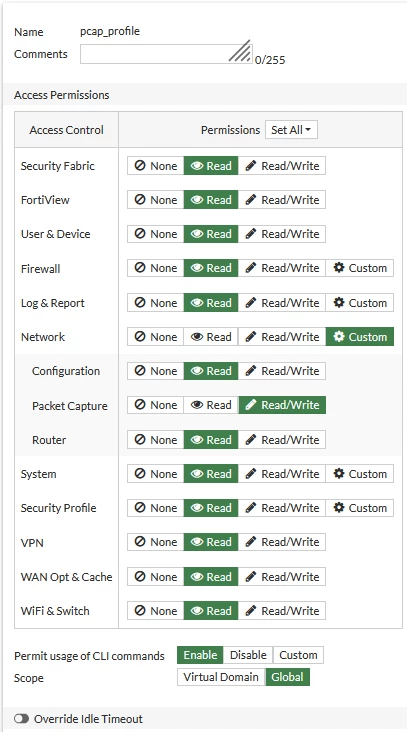

Admin pcap-admin will be assigned to the admin profile pcap_profile that has Read-Write only permission on packet capture.









  1. Log in to FortiGate using an admin with Read-Write permission and Login Mode: Read-Write (default admin with super_admin permission will be used in this KB article).

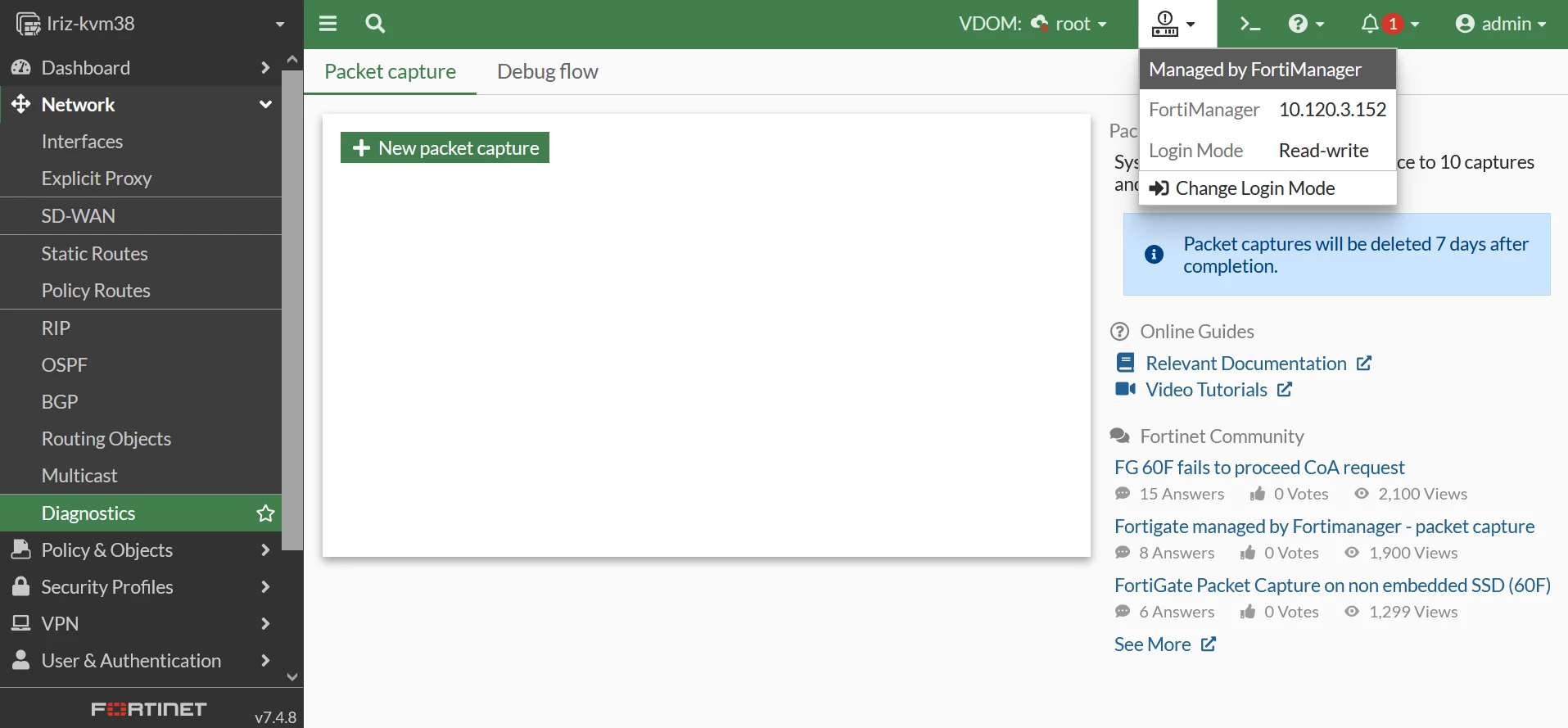

  1. Go to Network -> Diagnostics -> New Packet Capture.

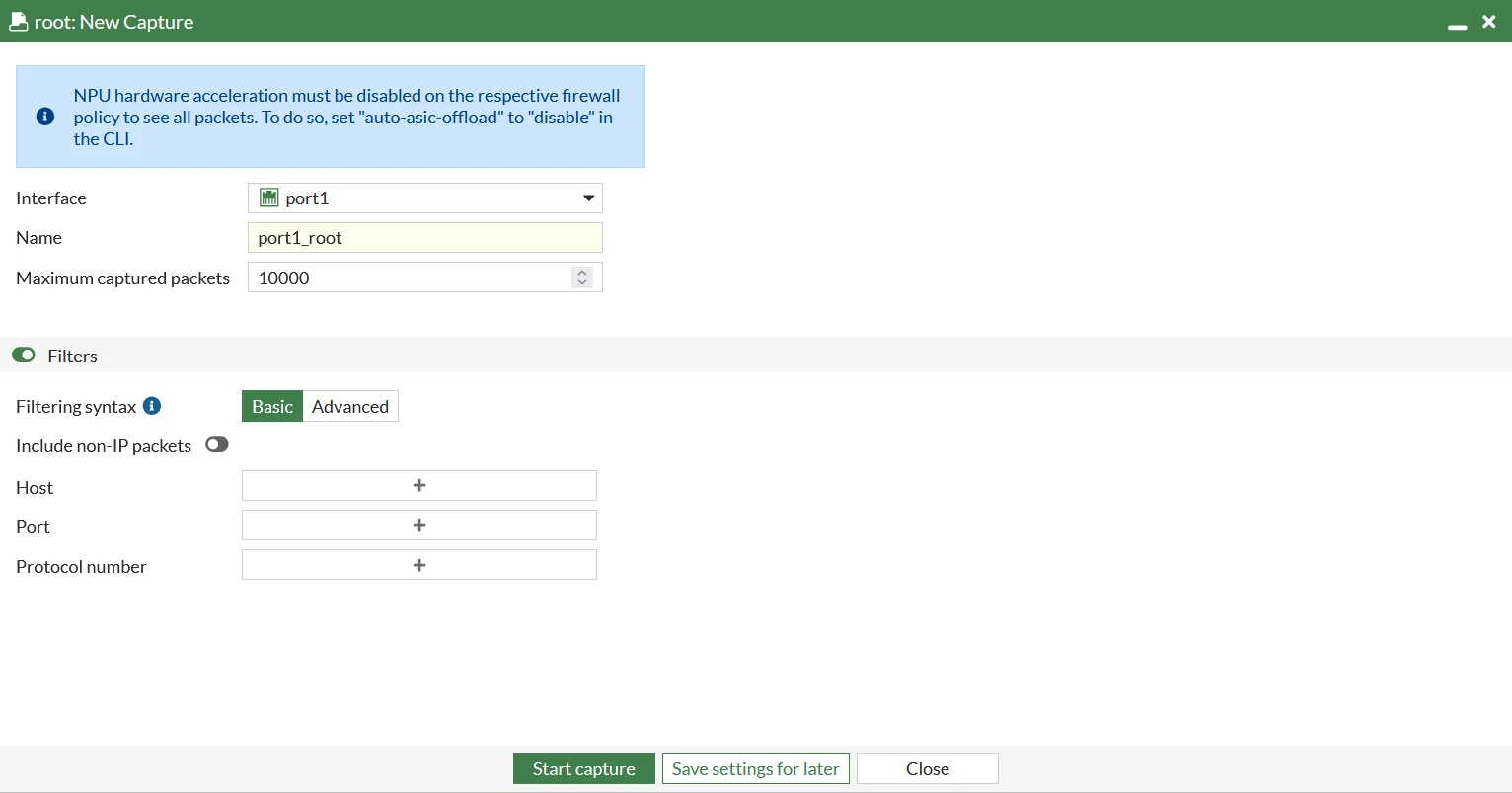

  1. Set the interface and filters as intended.

  2. When Saving, select either Start capture or Save settings for later.

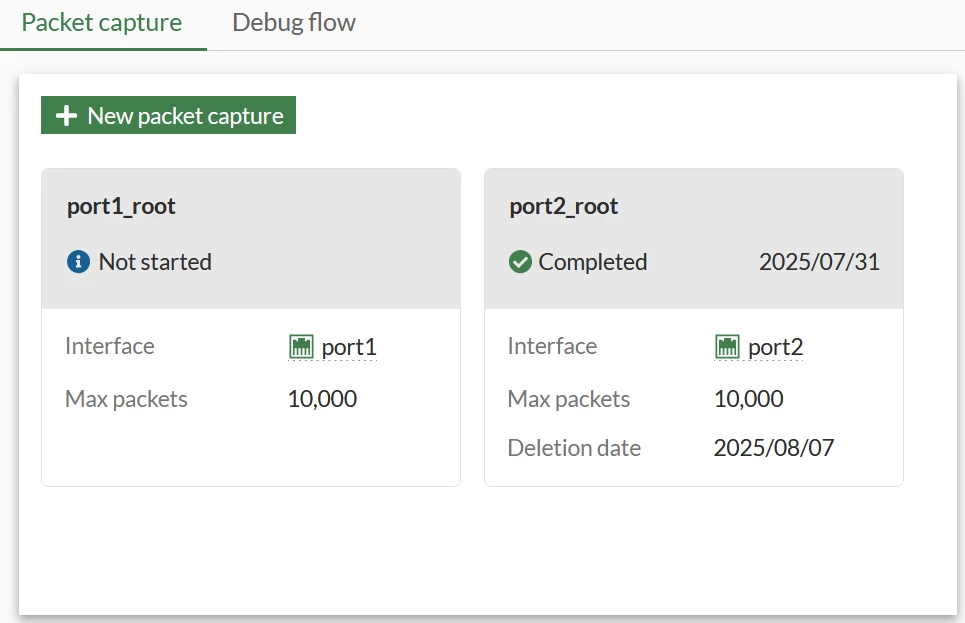

Packet capture saved.

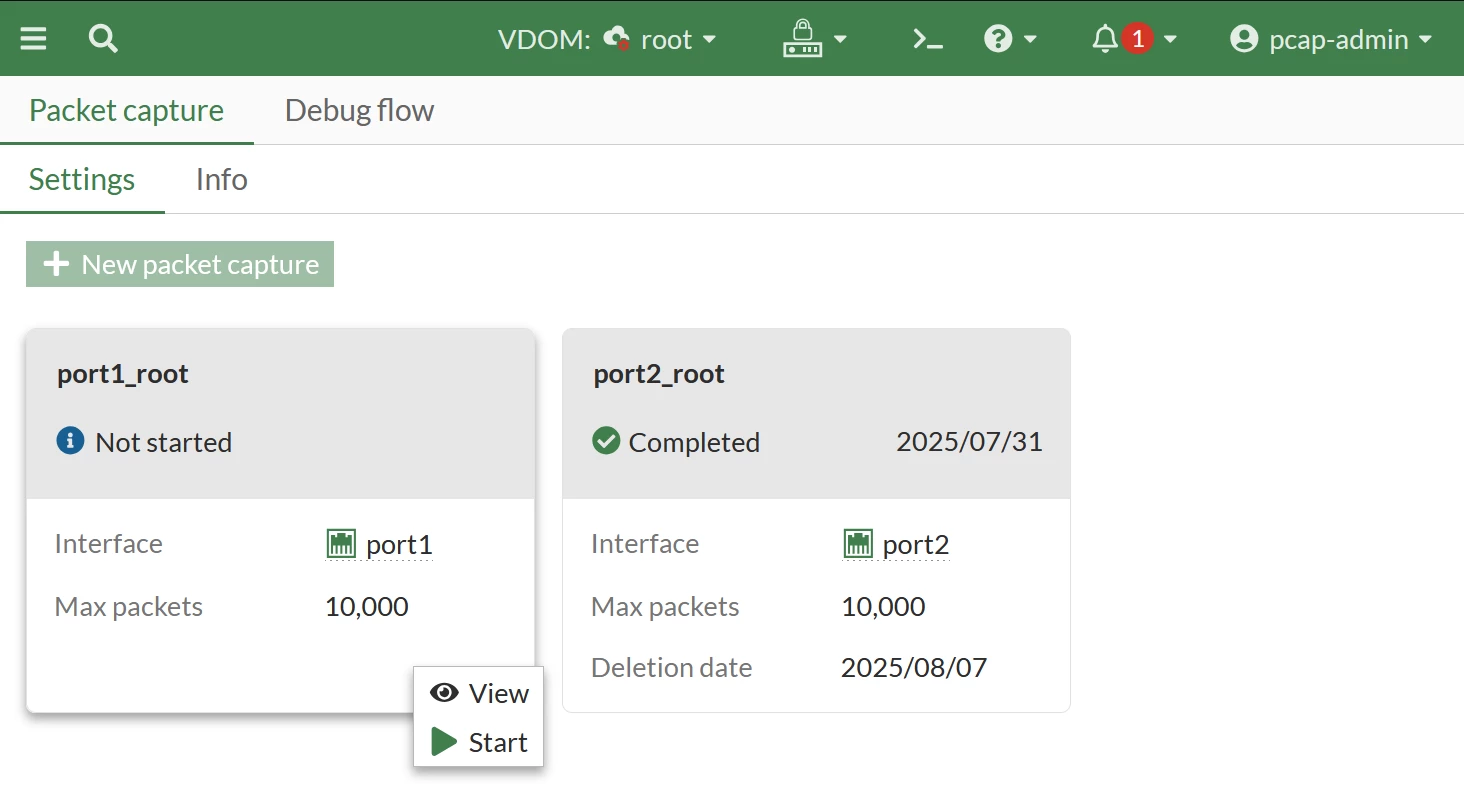

  1. Log in using pcap-admin. Packet capture that is configured/saved by Read-Write admin is now available.
