Technical Tip: Obtain specified VPN user information from FortiView into a report
| Description | This article describes how to obtain specified VPN user information from FortiView into a report. |
| Scope | FortiAnalyzer Fortiview Report. |
| Solution | To get specified VPN user information from FortiView into a report, follow these steps: export the data as a Chart, then use the Chart in a Report.

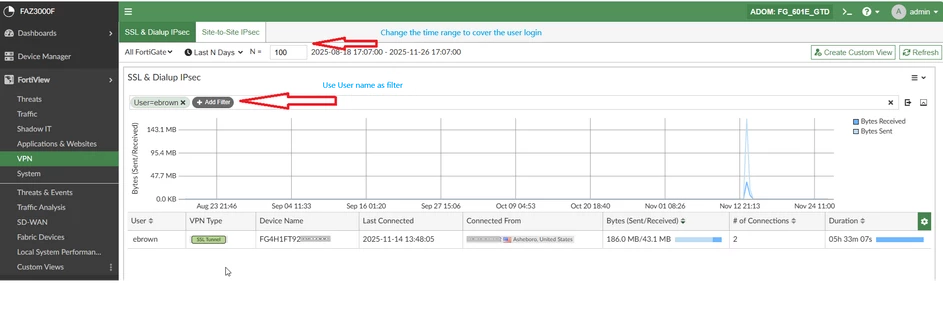

Step 1: Go to the FortiAnalyzer GUI -> FortiView -> VPN -> SSL & Dial-up IPsec, select the time range, and add the user as a filter.

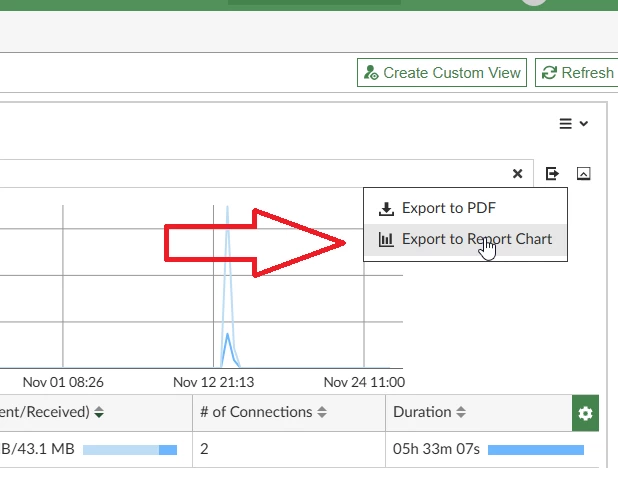

Step 2: Select the icon on the left with 'Export to Report Chart'.
Step 3: Save the Chart by giving the Chart Name.

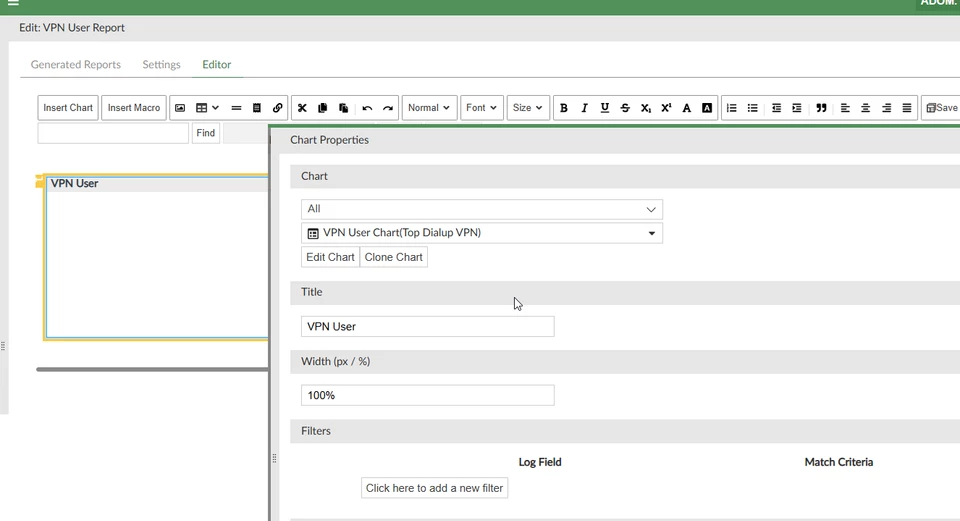

Step 4: Use the chart in a report.

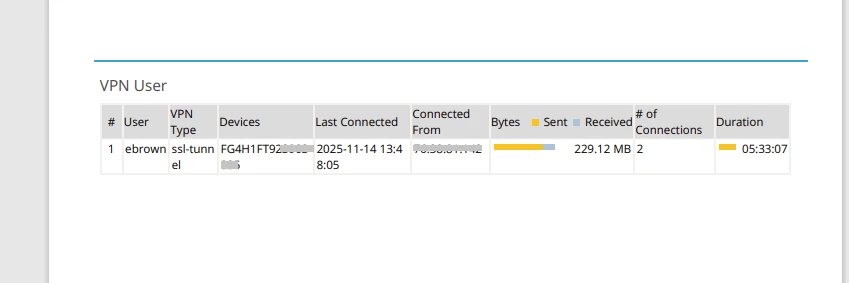

Step 5: Run the report, and the report result will show the following:
|
