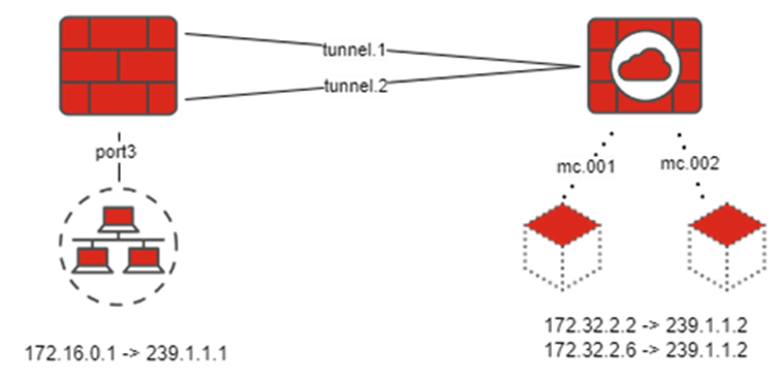

In this example, the on-premises subnet 172.16.0.0/24 includes hosts that listen to multicast group 239.1.1.2 and transmit on 239.1.1.1. The cloud VMs listen to multicast group 239.1.1.1 and transmit on 239.1.1.2. To enable this communication, a GENEVE interface must be configured on the FortiGate for each cloud VM. Additional configuration may be required on the cloud VM side to ensure proper multicast handling.
Configure the LAN interface and create a loopback interface to serve as the Multicast Rendezvous Point (RP).
On-prem FortiGate:
config system interface
   edit "port3"
     set ip 172.16.0.254 255.255.255.0
   next
  edit "loopback.router"
    set vdom "root"
    set ip 192.168.0.1 255.255.255.255
    set allowaccess ping
    set type loopback
  next
end
Cloud FortiGate:
config system interface
   edit "port2"
    set ip 172.32.1.4 255.255.255.0
  next
  edit "loopback.router"
    set vdom "root"
    set ip 192.168.0.2 255.255.255.255 <- Used for PIM and GENEVE.
    set allowaccess ping
    set type loopback
  next
end
Configure the GENEVE interfaces on the Cloud FortiGate and group them in one zone.
Cloud FortiGate:
config system geneve
   edit "mc.001"
    set interface "loopback.router"
    set vni 5001
    set remote-ip 172.32.1.5 <- VM NIC IP.
  next
   edit "mc.002"
    set interface "loopback.router"
    set vni 5001
    set remote-ip 172.32.1.6
  next
end
config system interface
   edit "mc.001"
    set ip 172.32.2.1 255.255.255.252
    set allowaccess ping
  next
  edit "mc.002"
    set ip 172.32.2.5 255.255.255.252
    set allowaccess ping
  next
end
config system zone
   edit "mc.zone"
    set interface "mc.001" "mc.002"
  next
end
Configure the IPsec tunnel interfaces and assign point-to-point IP addresses.
On-prem FortiGate:
config vpn ipsec phase1-interface
   edit "tunnel.1"
      set interface "port1"
      set ike-version 2
      set peertype any
      set net-device enable
      set exchange-interface-ip enable
      set exchange-ip-addr4 192.168.0.1
      set proposal aes256-sha256
      set localid "FGT-On-prem FortiGate"
      set dhgrp 21
      set network-overlay enable
      set network-id 1
      set transport udp
      set remote-gw 203.0.113.1
      set psksecret *****
   next
   edit "tunnel.2"
      set interface "port2"
      set ike-version 2
      set peertype any
      set net-device enable
      set exchange-interface-ip enable
      set exchange-ip-addr4 192.168.0.1
      set proposal aes256-sha256
      set localid "FGT-On-prem FortiGate"
      set dhgrp 21
      set network-overlay enable
      set network-id 2
      set transport udp
      set remote-gw 203.0.113.1
      set psksecret *****
  next
end
config vpn ipsec phase2-interface
   edit "tunnel.1"
      set phase1name "tunnel.1"
      set proposal aes256-sha256
      set dhgrp 21
  next
  edit "tunnel.2"
      set phase1name "tunnel.2"
      set proposal aes256-sha256
      set dhgrp 21
  next
end
config system interface
  edit "tunnel.1"
    set vdom "root"
    set ip 169.254.0.1 255.255.255.255
    set allowaccess ping
    set remote-ip 169.254.0.2 255.255.255.255
  next
  edit "tunnel.2"
    set vdom "root"
    set ip 169.254.0.3 255.255.255.255
    set allowaccess ping
    set remote-ip 169.254.0.4 255.255.255.255
  next
end
Cloud FortiGate:
config vpn ipsec phase1-interface
  edit "tunnel.1"
    set interface "port1"
    set ike-version 2
    set peertype any
    set net-device enable
    set exchange-interface-ip enable
    set exchange-ip-addr4 192.168.0.2
    set proposal aes256-sha256
    set localid "FGT-AZ"
    set dhgrp 21
    set network-overlay enable
    set network-id 1
    set transport udp
    set remote-gw 192.0.2.1
    set psksecret *****
  next
  edit "tunnel.2"
    set interface "port1"
    set ike-version 2
    set peertype any
    set net-device enable
    set exchange-interface-ip enable
    set exchange-ip-addr4 192.168.0.2
    set proposal aes256-sha256
    set localid "FGT-on-prem"
    set dhgrp 21
    set network-overlay enable
    set network-id 2
    set transport udp
    set remote-gw 198.51.100.1
    set psksecret *****
  next
end
config vpn ipsec phase2-interface
  edit "tunnel.1"
    set phase1name "tunnel.1"
    set proposal aes256-sha256
    set dhgrp 21
  next
  edit "tunnel.2"
    set phase1name "tunnel.2"
    set proposal aes256-sha256
    set dhgrp 21
  next
end
config system interface
  edit "tunnel.1"
    set vdom "root"
    set ip 169.254.0.2 255.255.255.255
    set allowaccess ping
    set type tunnel
    set remote-ip 169.254.0.1 255.255.255.255
  next
  edit "tunnel.2"
    set vdom "root"
    set ip 169.254.0.4 255.255.255.255
    set allowaccess ping
    set type tunnel
    set remote-ip 169.254.0.3 255.255.255.255
  next
end
Configure the SD-WAN settings to group the tunnels into a single zone. Define an SLA-based service rule that prioritizes PIM protocol traffic across the healthiest available link in the overlay zone. This rule will determine which tunnel is used to send the PIM register messages.
On-prem FortiGate:
config system sdwan
  set status enable
  config zone
    edit "OL_1"
    next
  end
  config members
    edit 3
      set interface "tunnel.1"
      set zone "OL_1"
      set source 192.168.0.1
    next
    edit 4
      set interface "tunnel.2"
      set zone "OL_1"
      set source 192.168.0.1
    next
  end
  config health-check
    edit "FGT_AZ_ICMP"
      set server "192.168.0.2"
      set members 3 4
      config sla
        edit 1
        next
      end
    next
  end
  config service
    edit 1
      set mode sla
      set protocol 103
      set dst "all"
      config sla
        edit "FGT_AZ_ICMP"
          set id 1
        next
      end
      set priority-zone "OL_1"
      set use-shortcut-sla disable
      set shortcut disable
    next
  end
end
Cloud FortiGate:
config system sdwan
   set status enable
   config zone
      edit "OL_1"
      next
   end
   config members
      edit 3
         set interface "tunnel.1"
         set zone "OL_1"
         set source 192.168.0.2
      next
      edit 4
         set interface "tunnel.2"
         set zone "OL_1"
         set source 192.168.0.2
      next
   end
   config health-check
      edit "FGT_on_prem_ICMP"
         set server "192.168.0.1"
         set members 3 4
         config sla
            edit 1
            next
         end
      next
   end
   config service
      edit 1
         set mode sla
         set protocol 103
         set dst "all"
         config sla
            edit "FGT_on_prem_ICMP"
               set id 1
            next
         end
         set priority-zone "OL_1"
         set use-shortcut-sla disable
         set shortcut disable
      next
   end
end
Create a firewall policy to permit control plane traffic.
On-prem and Cloud FortiGates:
config firewall service custom
  edit "PIM"
    set protocol IP
    set protocol-number 103
  next
end
On-prem FortiGate:
config firewall policy
  edit 1
    set name "OL_1_Routing"
    set srcintf "OL_1"
    set dstintf "loopback.router"
    set action accept
    set srcaddr "192.168.0.2/32"
    set dstaddr "192.168.0.1/32"
    set schedule "always"
    set service "PING" "PIM"
  next
end
Cloud FortiGate:
config firewall policy
  edit 1
    set name "OL_1_Routing"
    set srcintf "OL_1"
    set dstintf "loopback.router"
    set action accept
    set srcaddr "192.168.0.1/32"
    set dstaddr "192.168.0.2/32"
    set schedule "always"
    set service "PING" "PIM"
  next
end
Enable multicast routing and configure PIM in Sparse Mode. A Rendezvous Point (RP) for each group is configured closer to its source.
On-prem and Cloud FortiGates:
config router access-list
   edit "MC-239.1.1.1"
      config rule
         edit 1
            set prefix 239.1.1.1 255.255.255.255
         next
      end
   next
   edit "MC-239.1.1.2"
      config rule
         edit 1
            set prefix 239.1.1.2 255.255.255.255
         next
      end
   next
end
On-prem FortiGate:
config router multicast
   set multicast-routing enable
   config pim-sm-global
      set register-source ip-address
      set pim-use-sdwan enable
      config rp-address
         edit 1
            set ip-address 192.168.0.1
            set group "MC-239.1.1.1"
         next
         edit 2
            set ip-address 192.168.0.2
            set group "MC-239.1.1.2"
         next
      end
   end
   config interface
      edit "tunnel.1"
         set pim-mode sparse-mode
      next
    edit "tunnel.2"
         set pim-mode sparse-mode
      next
      edit "port3"
         set pim-mode sparse-mode
         set passive enable
      next
   end
end
Cloud FortiGate:
config router multicast
   set multicast-routing enable
   config pim-sm-global
      set register-source ip-address
      set pim-use-sdwan enable
      config rp-address
         edit 1
            set ip-address 192.168.0.1
            set group "MC-239.1.1.1"
         next
         edit 2
            set ip-address 192.168.0.2
            set group "MC-239.1.1.2"
       next
      end
   end
   config interface
      edit "tunnel.1"
         set pim-mode sparse-mode
      next
      edit "tunnel.2"
         set pim-mode sparse-mode
      next
      edit "mc.001"
         set pim-mode sparse-mode
         set passive enable
      next
    edit "mc.002"
         set pim-mode sparse-mode
         set passive enable
      next
   end
end
Configure the multicast policies. (For v7.6.0 and older, there is no support for selecting zones in multicast policies).
On-prem and Cloud FortiGates:
config firewall multicast-address
   edit "MC-239.1.1.1"
      set start-ip 239.1.1.1
      set end-ip 239.1.1.1
   next
   edit "MC-239.1.1.2"
      set start-ip 239.1.1.2
      set end-ip 239.1.1.2
   next
end
On-prem FortiGate:
config firewall multicast-policy
   edit 1
      set name "On-prem_to_239.1.1.1"
      set srcintf "port3"
      set dstintf "OL_1"
      set srcaddr "all"
   set dstaddr "MC-239.1.1.1"
   next
   edit 2
      set name "Cloud_to_239.1.1.2"
      set srcintf "OL_1"
      set dstintf "port3"
      set srcaddr "all"
      set dstaddr "MC-239.1.1.2"
   next
end
Cloud FortiGate:
config firewall multicast-policy
   edit 1
      set name "On-prem_to_239.1.1.1"
      set srcintf "OL_1"
      set dstintf "mc.zone"
      set srcaddr "all"
      set dstaddr "MC-239.1.1.1"
   next
   edit 2
      set name "Cloud_to_239.1.1.2"
      set srcintf "mc.zone"
      set dstintf "OL_1"
      set srcaddr "all"
      set dstaddr "MC-239.1.1.2"
   next
end
|
