Technical Tip: Managing FortiAP via FortiGate with routing on external device

FortiAPs can be deployed in Tunnel, Bridge, or Mesh mode across various network topologies and are managed directly by a FortiGate firewall.

This article describes a scenario where FortiAPs are managed by FortiGate, but routing is handled by a third-party device, such as an external router.

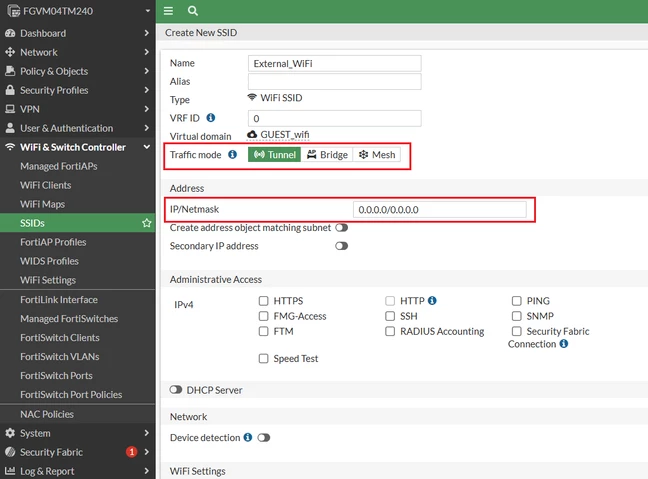

Step 1:

Create a new SSID in Tunnel Mode and set the IP 0.0.0.0/0.0.0.0.

Fill in all the necessary settings as needed (SSID name, password...).

config wireless-controller vap     edit "External_WiFi"         set ssid "External-wifi"         set passphrase <strong_password>         set schedule "always"     next end

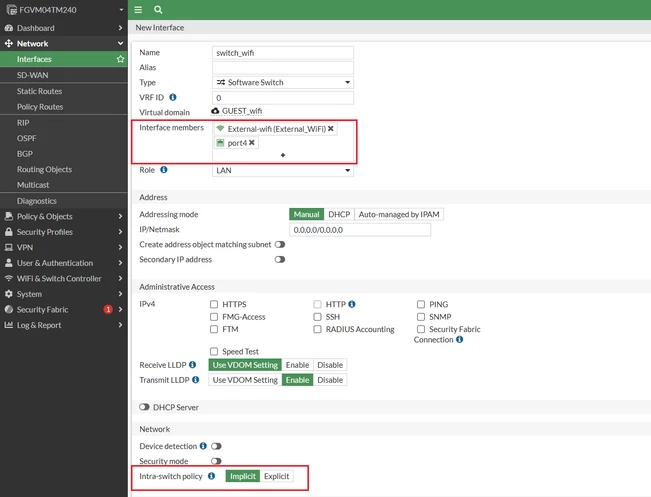

Step 2:

Create a new switch interface, select the previously created SSID, and add both the SSID and the interface connected to the external router as members.

Note: The option 'Intra-switch policy' can only be configured at this step.

• Implicit: No policies are required between interface members; traffic will not be offloaded (Default setting).

• Explicit: Specific policies are required between interface members; traffic will be offloaded, and security profiles can be used.

config system interface     edit "switch_wifi"         set vdom "GUEST_wifi"         set type switch         set lldp-transmission enable         set role lan     next end
