Solution | Logical SN is enabled under HA config as per the CLI Reference guide: config system ha.
config system ha
  set logical-sn enable
end
By default, the setting is logical-sn disable. However, the feature would not work as expected: The license would not be reflected on the FortiGate. The command 'get system ha status’ output does not reflect the Logical Serial Number.
diagnose debug app update -1
diagnose debug enable
execute update-now
Â
Enabling the above debugs would generate the following logs.
upd_act_HA_contract_info[739]-Error updating FSCI -1
No valid cluster key as logical-sn is enabled.
No valid cluster key as logical-sn is enabled.
To disable debugging:
diagnose debug disable
diagnose debug reset
The feature was originally implemented in v6.2.0 but was disabled due to errors. The command would still appear; however, the feature is disabled.
The support was added back in v7.2.9; however, 100F and 101F do not yet support the feature. This is added as one of the known issues in v7.2.9 and one of the known issues in v7.2.10.
This known issue with ID 1137565 for 10xF models, where the logical-sn command is missing, is fixed in versions 7.2.12, 7.4.8 and 7.6.3. Refer to the release notes for further information.

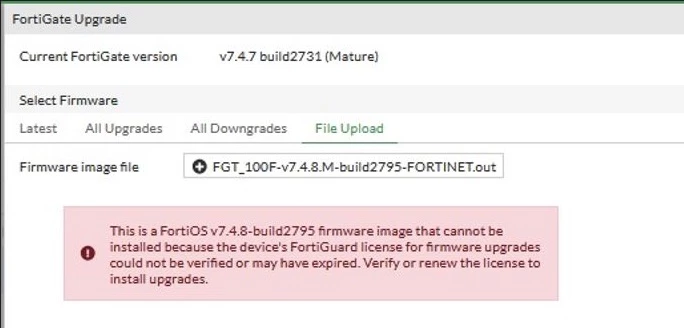

Note: If the FortiGate can not be upgraded to the fixed FortiOS version due to a license issue, as shown in the screenshot below. Follow the steps below the image to solve it.
   Disassociate the FortiGate from the VSN SN. It looks like this: FG100FHA250. From the FortiCloud portal, use the 'Dismiss HA' button to try to remove the VSN or, if needed, open a ticket with customer services, who will help to de-register the FortiGate in question. See FortiCare technical support. Upgrade the firmware to the GA build, which has the fix, and ensure that the logical-sn is properly configured under the HA setting. Generate an HA cluster using a preregistered FortiGate serial number as per the document: Generating an HA cluster. Run the command 'get system ha status' to verify if the logical serial is seen:
 get system ha status
HA Health Status: OK
Model: FortiGate-100F
Mode: HA A-P
Group Name: Branch1-HA
Group ID: 100
Debug: 0
Cluster Uptime: 0 days 2h:33m:2s
Cluster state change time: 2024-11-19 13:57:31
Primary selected using:
<2024/11/19 13:57:31> vcluster-1: FGT100FTK22023xxx is selected as the primary because its override priority is larger than peer member FGT100FTK20000xxx.
<2024/11/19 11:26:06> vcluster-1: FGT100FTK22023xxx is selected as the primary because it's the only member in the cluster.
ses_pickup: enable, ses_pickup_delay=disable
override: enable
Configuration Status:
FGT100FTK22023xxx(updated 1 seconds ago): in-sync
FGT100FTK22023xxx chksum dump: 0e 4c b5 56 80 be bf 20 8e e5 ad d5 59 ea 5d b3
FGT100FTK20000xxx(updated 0 seconds ago): out-of-sync
FGT100FTK20000xxx chksum dump: d1 31 59 fc 0b 91 12 ca 92 69 62 d2 9f b7 a3 c3
System Usage stats:
FGT100FTK22023xxx(updated 1 seconds ago):
sessions=18, average-cpu-user/nice/system/idle=0%/0%/0%/100%, memory=26%
FGT100FTK20000xxx(updated 0 seconds ago):
sessions=4, average-cpu-user/nice/system/idle=6%/0%/6%/87%, memory=24%
HBDEV stats:
FGT100FTK22023xxx(updated 1 seconds ago):
internal3: physical/1000auto, up, rx-bytes/packets/dropped/errors=1492065/22100/0/0, tx=20442845/47022/0/0
FGT100FTK20000xxx(updated 0 seconds ago):
internal3: physical/1000auto, up, rx-bytes/packets/dropped/errors=24954361/57802/0/0, tx=1804396/27277/0/0
number of member: 2
80FASAAA , FGT100FTK22023xxx, HA cluster index = 0
FGT-D , FGT100FTK20000xxx, HA cluster index = 1
number of vcluster: 1
vcluster 1: work 169.254.0.1
Primary: FGT100FTK22023xxx, HA operating index = 0
Secondary: FGT100FTK20000xxx, HA operating index = 1
Logical Serial Number: FGT100FHA24090xxx    Â
           If the Logical Serial Number does not show up, see Troubleshooting Tip: After registering for Logic/VSN, the contract and UTM services show as not licensed on FortiGate.  Related document: |
