Technical Tip: Link-Monitor Explained
Description
This article describes link health monitoring on FortiGate, including probing protocols (ping, TCP/UDP echo, HTTP/HTTPS, TWAMP), CLI configuration for failure detection, and actions like route removal or HA failover. Includes examples for status checks and troubleshooting.
Scope
FortiGate.
Solution
Link-monitor (now often called 'link health monitor' in SD-WAN contexts) on FortiGate measures interface health by sending probes to a server, tracking latency, jitter, packet loss, and uptime. In FortiOS 7.6.4, it's fully integrated with SD-WAN for dynamic routing, supports GUI configuration via Performance SLAs, and allows interfaces to participate in SD-WAN zones. Probes use protocols like ping, HTTP/HTTPS, or TWAMP; failures can trigger route updates, HA failover, or SD-WAN path switches. Use for ISP redundancy or WAN optimization.
config system link-monitor
edit "1"
set addr-mode Address mode (IPv4 or IPv6).
set srcintf Interface that receives the traffic to be monitored.
set server-config Mode of server configuration.
set server-type Server type (static or dynamic).
set server IP address of the server(s) to be monitored.
set protocol <ping | tcp-echo | udp-echo | http | https | twamp>
set gateway-ip Gateway IP address used to probe the server.
set route Subnet to monitor.
set source-ip Source IP address used in packet to the server”
set interval Detection interval in milliseconds (20 - 3600 * 1000 msec, default = 500).
set probe-timeout Time to wait before a probe packet is considered lost (20 - 5000 msec, default = 500).
set fail-weight Threshold weight to trigger link failure alert
set failtime Number of retry attempts before the server is considered down (1 - 3600, default = 5).
set recoverytime Number of successful responses received before server is considered recovered (1 - 3600, default = 5).
set probe-count Number of most recent probes that should be used to calculate latency and jitter (5 - 30, default = 30).
set ha-priority HA election priority (1 - 50).
*set update-cascade-interface Enable/disable update cascade interface, default: enable”
[* It is advised to keep disabled as it may cause the production environment down , Make sure it's working before enabling it]
**set update-static-route Enable/disable updating the static route, default: enable”
[** It is advised to keep disabled as it may cause the production environment down , Make sure it's working before enabling it]
set update-policy-route Enable/disable updating the policy route.
set status Enable/disable this link monitor, default: enable.
set diffservcode Differentiated services code point (DSCP) in the IP header of the probe packet.
set class-id Traffic class ID.
set service-detection Only use monitor to read quality values. If enabled, static routes and cascade interfaces will not be updated.
next
end set server-type Server type (static or dynamic).
In v7.6.4, set server-type primary/secondary allows failover probes; output from diagnose sys link-monitor status now includes jitter stats: e.g., 'Jitter: 10ms, Latency: 50ms'.
GUI Configuration in FortiOS v7.6.4 (SD-WAN Integrated):
Steps:
Go to Network -> SD-WAN -> Performance SLAs tab -> Create New -> SLA & Link Monitors.
- Name: 'wan1-health'.
- Participants: Add 'wan1' interface.
- Server: 8.8.8.8 (or HTTP/HTTPS URL).
- Protocol: Ping/HTTP/etc.
- Health Check: Set thresholds (e.g., Latency < 150ms, Jitter < 30ms, Packet Loss < 5%).
- Select OK; apply to SD-WAN rules under the SD-WAN Rules tab for path selection.
SD-WAN Integration and Advanced Features in 7.6.4:
Link-monitors now work seamlessly with SD-WAN zones; assign interfaces to zones via config system sdwan zone.
config system sdwan
set status enable
config zone
edit "virtual-wan-link"
next
end
config members
edit 1
set interface "wan1"
set gateway 203.0.113.1
set link-monitor "wan1-monitor" # Link to existing monitor
next
end
end
Failures trigger SD-WAN to shift traffic (e.g., via set priority-members 2); supports adaptive thresholds in v7.6.4 for VoIP/video optimization.
Note:
Some options are only available in later FortiOS versions.
- The following options are available in v7.0.0 and above:
set route Subnet to monitor.
set diffservcode Differentiated services code point (DSCP) in the IP header of the probe set packet.
set class-id Traffic class ID.
set service-detection Only use monitor to read quality values. If enabled, static routes and cascade interfaces will not be updated.
- The following options are available in v7.0.1 and above:
set server-config Mode of server configuration (default or individual).
set update-policy-route Enable/disable updating the policy route.
- The following options are available in v7.2.0 and above:
set server-type Server type (static or dynamic).
Consider a simple setup where FortiGate is probing the server 10.109.21.50 via the wan1 interface.
config system link-monitor
edit "1"
set srcintf "wan1"
set server "10.109.21.50" <- The server that is probed via WAN1 interface.
next
end
Prefer SD-WAN SLA for advanced scenarios:
Use Link-Monitor when:
- Simple failover required.
- Static routing environment.
- No SD-WAN configured.
Use SD-WAN SLA when:
- Latency-based routing is needed.
- Application steering required.
- Multi-link optimization required.
Note:
It is not possible to configure a link-monitor with a srcintf interface that already belongs to an SD-WAN zone configuration. The interface should not be part of the SD-WAN configuration. This also applies to a configuration in the opposite direction: an interface that belongs to a link-monitor configuration cannot be added to an SD-WAN configuration. Fortinet does not support scenarios where one interface is configured in both link-monitor and SD-WAN.
As shown in the output below, the status is 'active', which means FortiGate can reach the server with the IP address 10.109.21.50.
FGT # diagnose sys link-monitor status
Link Monitor: 1, Status: alive, Server num(1), Flags=0x1 init, Create time: Sun Jul 4 16:20:25 2021
Source interface: wan1 (3)
Interval: 500 ms
Peer: 10.109.21.50(10.109.21.50)
Source IP(10.109.16.223)
Route: 10.109.16.223->10.109.21.50/32, gwy(10.109.16.223)
protocol: ping, state: alive
Latency(Min/Max/Avg): 0.211/0.585/0.362 ms
Jitter(Min/Max/Avg): 0.006/0.298/0.098
Packet lost: 0.000%
Number of out-of-sequence packets: 0
Fail Times(0/5)
Packet sent: 1472, received: 1334, Sequence(sent/rcvd/exp): 1473/1473/1474
FGT # get router info routing-table all
Routing table for VRF=0
S* 0.0.0.0/0 [10/0] via 10.109.31.254, wan1
C 10.109.16.0/20 is directly connected, wan1
When WAN1 goes down, or the ping server is not reachable, the default route is removed from the routing table.
FGT # diagnose sys link-monitor status
Link Monitor: 1, Status: die, Server num(1), Flags=0x9 init, Create time: Sun Jul 4 16:20:25 2021
Source interface: wan1 (3)
Interval: 500 ms
Peer: 10.109.21.50(10.109.21.50)
Source IP(10.109.16.223)
Route: 10.109.16.223->10.109.21.50/32, gwy(10.109.16.223)
protocol: ping, state: die
Packet lost: 5.000%
Number of out-of-sequence packets: 0
Recovery times(0/5) Fail Times(1/5)
Packet sent: 2128, received: 1983, Sequence(sent/rcvd/exp): 2129/2122/2123
As visible in the output below, the default route is removed from the routing table due to link monitor failure.
FGT # get router info routing-table all
Routing table for VRF=0
C 10.109.16.0/20 is directly connected, wan1
When the ping server is reachable and the link monitor is restored, the default route is installed again. Link-Monitor will remove only the Static and Policy Route, not the Directly Connected Route. To prevent link-monitor from removing the default route, the following command can be used.
config router static
edit "1"
set link-monitor-exempt enable <- The default is 'disable'.
next
end
Starting v7.0.1, the option to disable updating policy routes when the link health monitor fails was added:
config system link-monitor
edit "1"
set update-policy-route disable
next
end
Note:
Configure the gateway IP address under the policy route and link-monitor for this feature to work.
When update-policy-route disable is configured, the policy-based route is retained even if the link health monitor detects a failure. To use this feature, it must be enabled to ensure that the associated policy route is disabled when necessary.
It is possible to add multiple servers to avoid false positives caused by monitoring a single IP address.
config system link-monitor
edit "1"
set server "8.8.8.8" "4.2.2.2" "8.8.4.4"
next
Reachability over the link is regarded as satisfactory even if only one probe server is in an 'alive' state when many probe servers are set up as described.
Link Monitor can also be configured to trigger an HA failover when Technical Tip: Combining Remote Link Monitoring with FGCP cluster High Availability, allowing the cluster to fail over based on actual path availability rather than relying solely on Technical Tip: HA failover failure cause by link failure under HA config, which works on Layer 1 status.

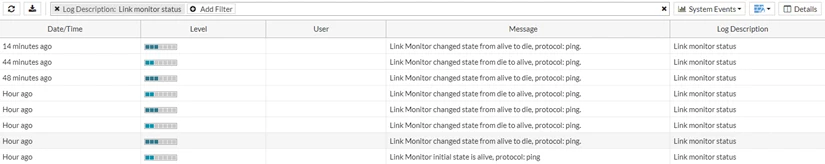

The logs can be viewed on FortiGate under Log & Report -> Events -> System Events.
date=2021-07-04 time=16:21:41 eventtime=1625408501933624821 tz="+0200" logid="0100022922" type="event" subtype="system" level="warning" vd="root" logdesc="Link monitor status" name="1" interface="wan1" probeproto="ping" msg="Link Monitor changed state from alive to die, protocol: ping."
date=2021-07-04 time=16:20:25 eventtime=1625408425881086208 tz="+0200" logid="0100022922" type="event" subtype="system" level="notice" vd="root" logdesc="Link monitor status" name="1" interface="wan1" probeproto="ping" msg="Link Monitor initial state is alive, protocol: ping"
When a server is not reachable, the logs do not show the server name or IP. To check which server is down, it is required to run the CLI command 'diagnose sys link-monitor status'.
date=2021-07-04 time=16:22:06 eventtime=1736278922124255400 tz="-0500" logid="0100022922" type="event" subtype="system" level="notice" vd="root" logdesc="Link monitor status" name="1" msg="Link monitor state is changed from 0 to 1, please check if this triggers HA failover."
- 0 means up.
- 1 means down.
Here is another article that provides an example where link-monitor is used for a redundant Internet connection without load-balancing: Technical Tip: Redundant Internet connection without load-balancing.
Note:
When configuring the link monitor, it is essential to have local access to the firewall. Incorrect configurations may lead to network inaccessibility.
An email alert notification can be configured whenever there is a change in the link monitor status. This can be configured by following the steps outlined in Technical Tip: E-mail alert when WAN interface went down.
Troubleshooting:
To troubleshoot or debug the FortiGate link-monitor functionality, a real-time debug can be run using the commands below:
diagnose debug application link-monitor -1
diagnose debug enable
To stop the debug, use the command given below:
diagnose debug disable
diagnose debug reset
Enhance Troubleshooting 7.6.4-specific commands:
diagnose sys link-monitor statistics "wan1-monitor" --> Probe history.
diagnose debug application sdwan -1 --> For SD-WAN failures.
execute sdwan health-check --> Refresh all monitors.
Note: Link Monitors are used to assess the health of a network link by sending periodic probes (such as pings) to a specified server. The primary purpose is to ensure that traffic is only routed through links that are operational.
A link monitor will only remove a route from the routing table if there is 100% packet loss. This means that the link is considered completely down, and no packets are successfully reaching the destination.
Example:
FGT # diagnose sys link-monitor status
Link Monitor: 1, Status: active, Server num(1), Flags=0x9 init, Create time: Sun Jul 4 16:20:25 2021
Source interface: wan1 (3)
Interval: 500 ms
Peer: 10.109.21.50(10.109.21.50)
Source IP(10.109.16.223)
Route: 10.109.16.223->10.109.21.50/32, gwy(10.109.16.223)
protocol: ping, state: die
Packet lost: 15.000%
Number of out-of-sequence packets: 0
Recovery times(0/5) Fail Times(1/5)
Packet sent: 2128, received: 1983, Sequence(sent/rcvd/exp): 2129/2122/2123
Example scenario:
In the provided example, the link monitor is active and monitoring a route from 10.109.16.223 to 10.109.21.50.
The current state is 'active' with a packet loss of 15%. This indicates some packet loss, but not enough to remove the route from the routing table.
Link Monitor Status:
The status output shows:
Interval: 500 ms (frequency of the probes)
Packet Loss: 15% (indicating some issues but not a complete failure).
Recovery and Fail Times: These metrics help track how often the link has failed or recovered.
Recommendation.
In this scenario, SD_WAN SLA is a better approach if the ISP has only 5 to 10 percent packet loss. SD-WAN SLA for Partial Packet Loss:
If the ISP link experiences partial packet loss (e.g., 5% to 10%), using an SD-WAN SLA (Service Level Agreement) is a better approach.
SD-WAN SLAs can dynamically reroute traffic based on link quality metrics like latency, jitter, and packet loss, ensuring optimal performance even when the link is not completely down. In scenarios of 10 % or below packet loss where there is partial packet loss, leveraging SD-WAN capabilities can provide more granular control and better performance management compared to traditional link monitors, which only react to complete link failures.
