Technical Tip: LDAP Authentication Using Custom AD Attribute Instead of Username for SSL VPN

In this article, custom AD attribute employeeID will be used for SSL VPN authentication instead of username for demonstration.

Step 1 : Configure LDAP server

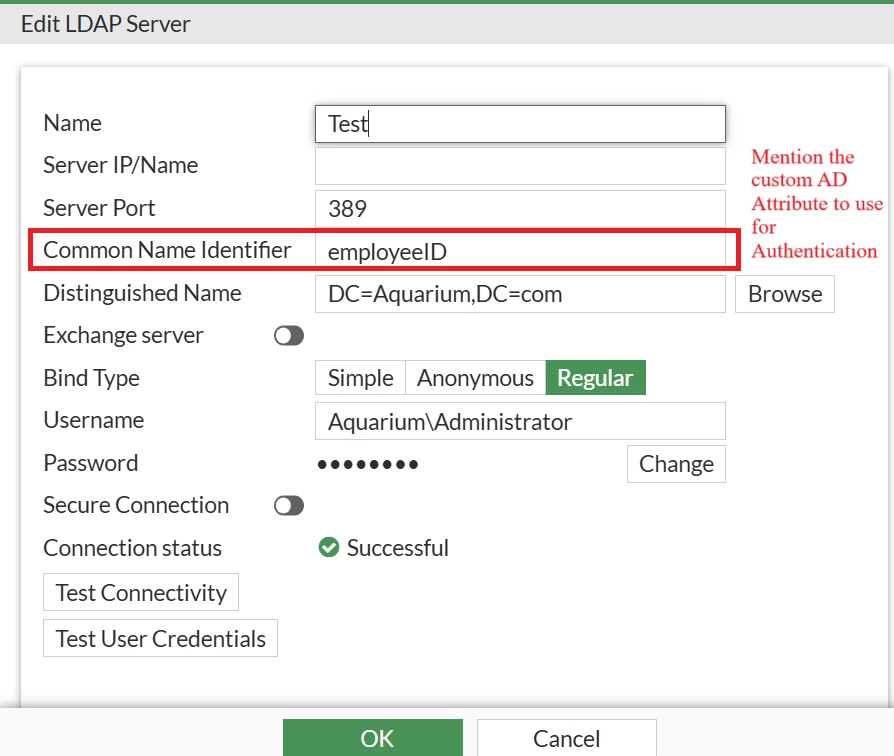

1. Go to User & Authentication -> LDAP servers -> Create new.
2. In Common Name Identifier field, mention the custom AD attribute to use for SSL VPN authentication instead of username.
3. Test connectivity of server as well as for user credentials.
4. Select OK.





5.  Configure the member-attr to define the member attribute field to check for.

CLI:

config user ldap
    edit "Test"
        set server "xxxxxx"
        set cnid "employeeID"
        set dn "DC=Aquarium,DC=com"
        set type regular
        set username "Aquarium\\Administrator"
        set password ENC MTAwNBeeL9lePwe301w6vmLVCM
        set member-attr "employeeID" <-------- Mention the custom AD attribute

    next
end

Step 2: Configure the User Group.

1. Go to User & Authentication -> User Groups -> Create new.
2. Remote Groups -> Add the LDAP server configured -> Select the groups.
3. In order to use the employeeID as username, it is necessary to modify the group-name. This configuration is done from CLI.

CLI:

config user group
    edit "AD_Users"

        set member "Aquarium"

            config match

                edit 1

                    set server-name "Aquarium"
                    set group-name "123456789" <-------- Mention the custom AD attribute value for that User.
                next
            end

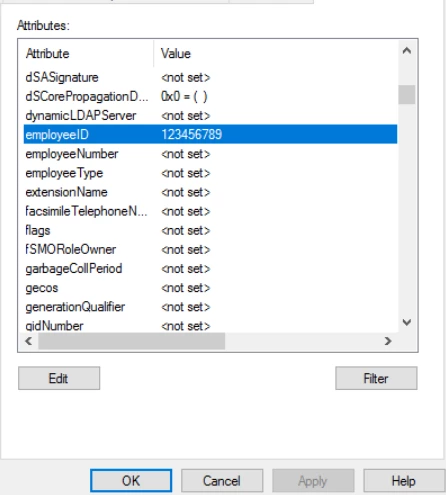

On the AD For user Test the employee ID set is '123456789'.

Step 3: Configure Firewall Policy.

CLI:

config firewall policy
   edit 5
      set name "SSLVPN"
      set uuid 45ed780a-f5d1-51ef-99f6-e564fc1de4da
      set srcintf "ssl.root"
      set dstintf "SSLVPN endpoint"
      set action accept
      set srcaddr "SSLVPN_TUNNEL_ADDR1"
      set dstaddr "SSLVPN endpoint address"
      set schedule "always"
      set service "ALL"
      set logtraffic all
      set groups "AD_Users" <-------- Mention the user group created.
   next
end

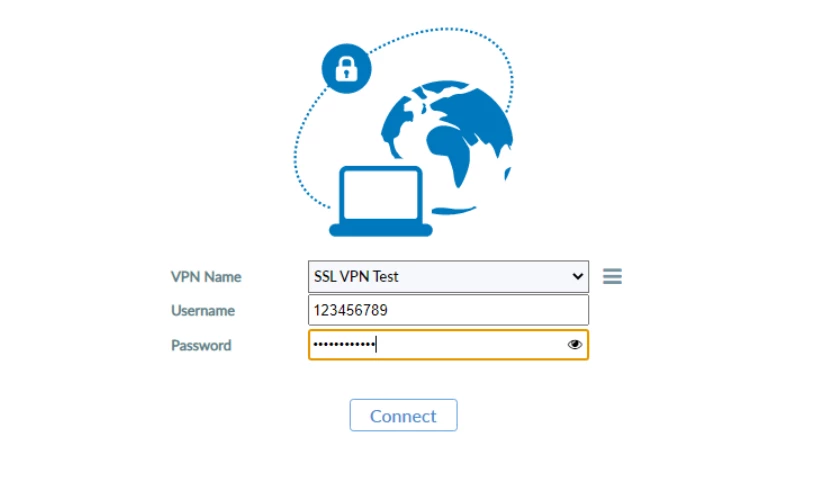

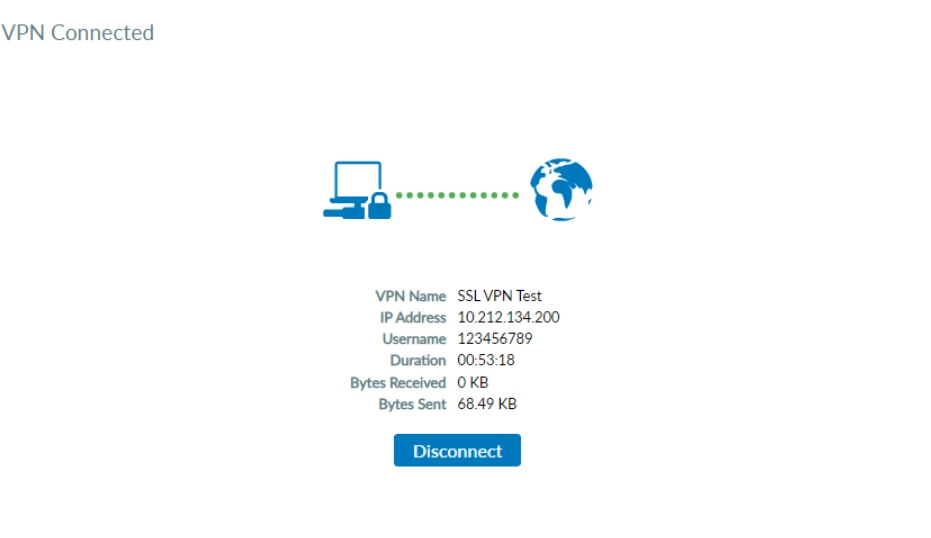

Testing the connection for SSL using custom AD attribute, eg: employeeID instead of username

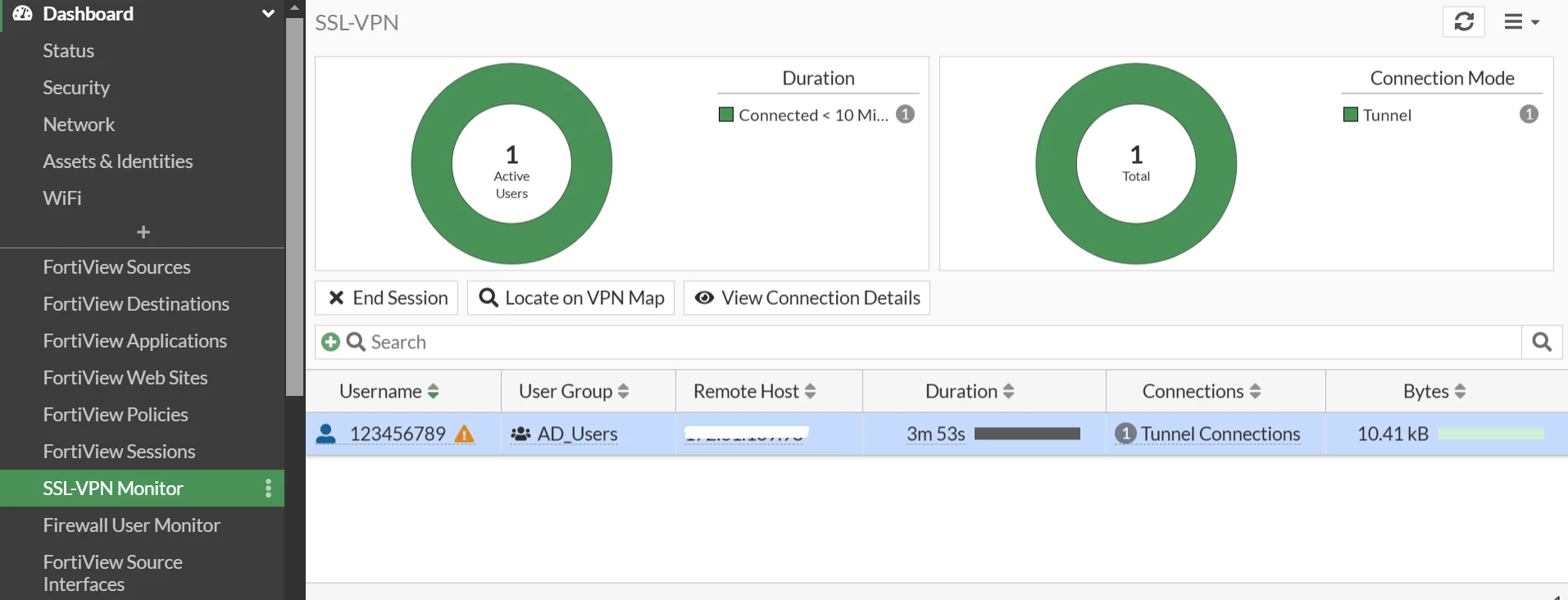

To check the SSL user connection, view SSL Monitor:
