Technical Tip: LACP between FortiGate and Huawei switches

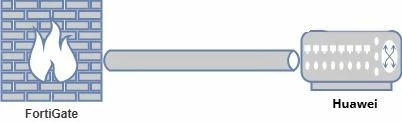

Topology:

LACP configuration on FortiGate:

config system interface

    edit "Lab-LACP"
        set vdom "root"
        set type aggregate
        set member "internal6" "internal7"
        set alias "Uplink-Port"
        set lldp-reception enable
        set lldp-transmission enable
        set role lan
        set snmp-index 19
    next
end

Note: port 6 and port 7 is used for LACP

LACP configuration on Huawei:

Step 1: Config Trunk interface.

interface Eth-Trunk Uplink -> Uplink is trunk name
mode lacp-static
quit

Step 2: Assign interface in the Trunk.

interface ethernet 1/0/1
eth-trunk Uplink
quit

interface ethernet 1/0/2
eth-trunk Uplink
quit

Step 3: For display.

display eth-trunk Uplink

Port 1/0/1 and port 1/0/1 is used for LACP
