Technical Tip: Importance of using Static IP, FQDN or DDNS in IPsec dial-up VPN configurations

In IPsec dial-in deployments, FortiGate must reliably associate an incoming negotiation with the correct Phase 1 configuration. Using a predictable remote gateway reference (static IP / FQDN / DDNS) and an explicit peer identifier (when applicable) helps prevent negotiation failures, policy mismatches, and intermittent tunnel drops caused by changing ISP-assigned addresses.

Why it matters:

• Consistent peer matching: Ensures the correct Phase 1 is selected—especially important when multiple dial-in peers/tunnels exist.
• Stronger security controls: Reduces the chance of accepting negotiations from unintended peers by validating expected identifiers.
• Stable connectivity: Avoids outages when the remote peer’s public IP changes (typical with dynamic ISP links).
• Cleaner operations and troubleshooting: More accurate logs, monitoring, and diagnostics when endpoints are consistently identifiable.

Configuration best practices:

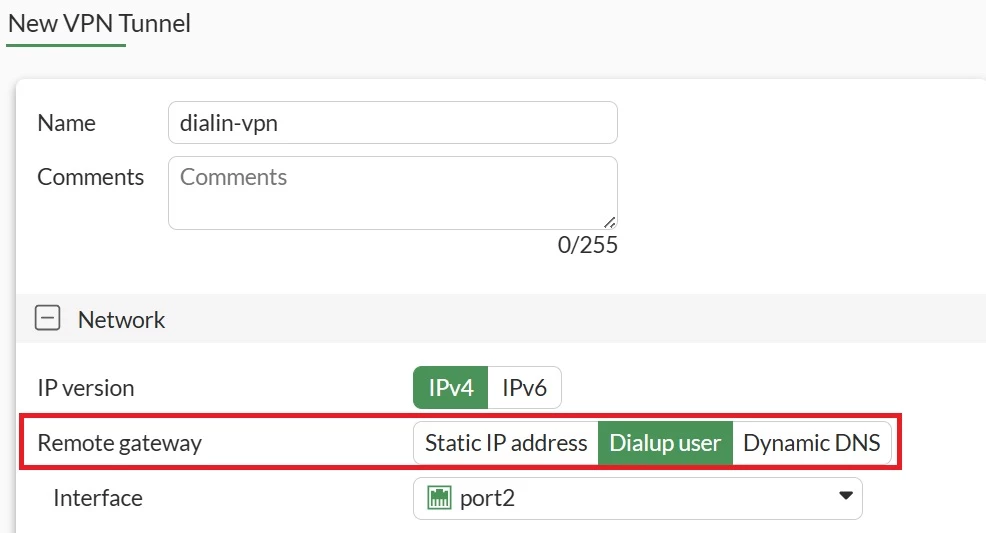

• Configure remote-gw using a static IP, FQDN, or DDNS hostname.

• If using DDNS, confirm DNS resolution is reachable from FortiGate and that the DDNS record updates promptly after WAN IP changes.

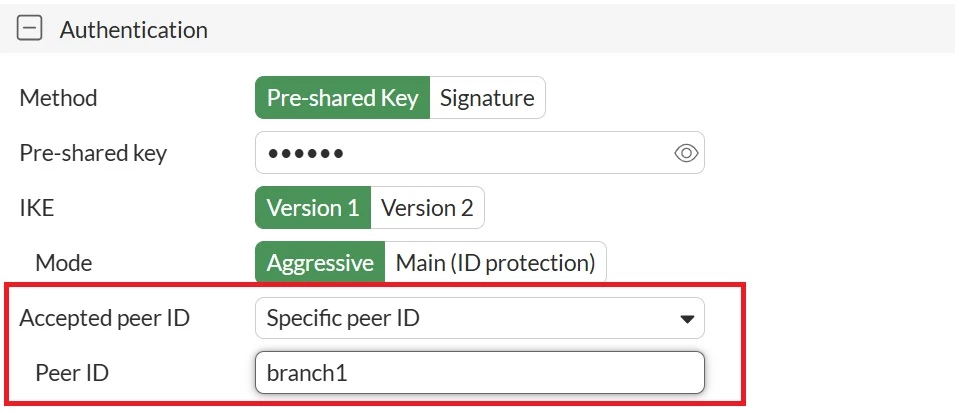

• When operating in Aggressive mode, use peerid to enforce an expected peer identifier. For details on peerid and localID, refer to: Technical Tip: Use of PeerID and LocalID in IPsec VPN.



• Avoid overlapping internal subnets between VPN peers. If overlap is required, use NAT/overlap techniques as described here: Site-to-site VPN with overlapping subnets.

Example CLI configuration (dial-in / dynamic peer):

config vpn ipsec phase1-interface     edit "dialin-vpn"         set type dynamic         set interface "wan1"         set peertype any         set mode aggressive         set proposal aes256-sha256         set dhgrp 14         set remote-gw ddns.example.com         set peerid "branch1"         set psksecret ENC <encrypted_pre_shared_key>     next end

Additional recommendations:

• For environments with multiple dial-in peers, define unique peerid values to prevent matching ambiguity.
• If relying on DDNS/FQDN for peer identification, validate DNS behavior during failover events (e.g., WAN link changes) so the resolved address stays current.
