Technical Tip: How to use SD-WAN rule input-device

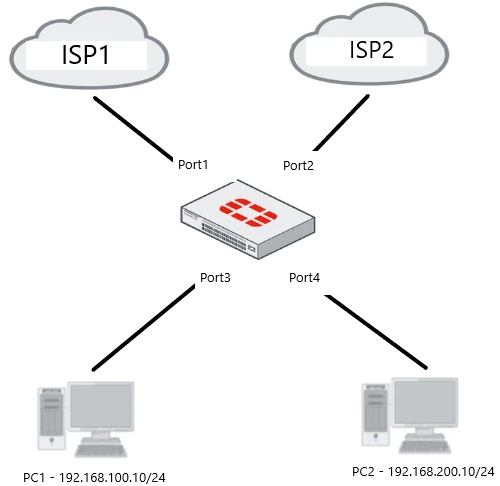

In the following diagram, FortiGate will route the traffic of PC1 to ISP1 and the traffic of PC2 to ISP2 using an SD-WAN input-device.

1. Create SDWAN rule for both PC1 and PC2:



config sys sdwan
    config service
        edit 1
            set name "To_ISP1"
            set input-device "port3"
            set dst "all"
            set src "all"
            set priority-members 1
        next
            edit 2
                set name "To_ISP2"
                set input-device "port4"
                set dst "all"
                set src "all"
                set priority-members 2
            next
        end
    end

2. Make sure that there is a firewall policy allowing the traffic referencing the SD-WAN zone:



config firewall policy
    edit 1
        set name "Allow_INTERNET"
        set uuid 0b74477c-86b3-51ef-70d8-fffc8b0f577d
        set srcintf "port3" "port4"
        set dstintf "virtual-wan-link"
        set action accept
        set srcaddr "all"
        set dstaddr "all"
        set schedule "always"
        set service "ALL"
        set logtraffic all
        set nat enable
    next
end

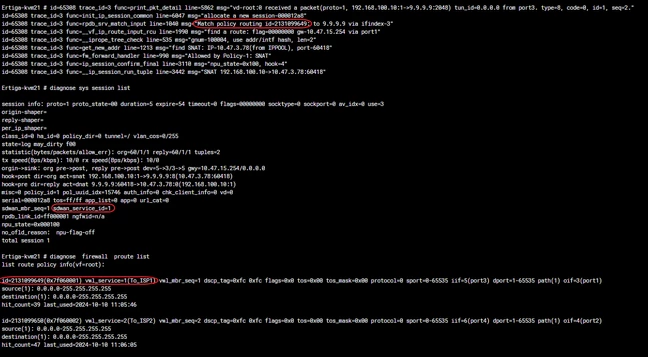

Verification for PC#1:

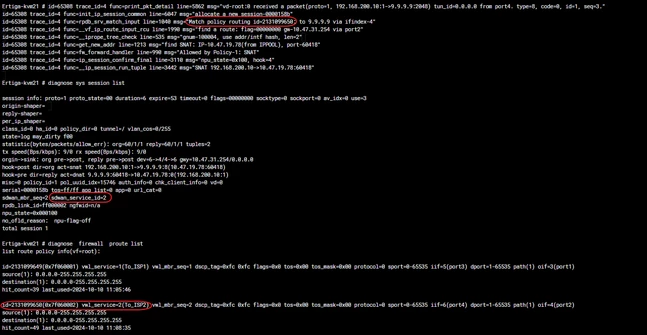

Verification for PC#2:
