Technical Tip: How to use EMAC-VLAN to share the same VLAN across multiple VDOMs

  • December 14, 2018
  • 0 replies
  • 43963 views
Description This article explains how FortiGate can share a VLAN across multiple VDOMs using EMAC-VLAN interfaces.
Scope FortiGate
Solution




Solution:

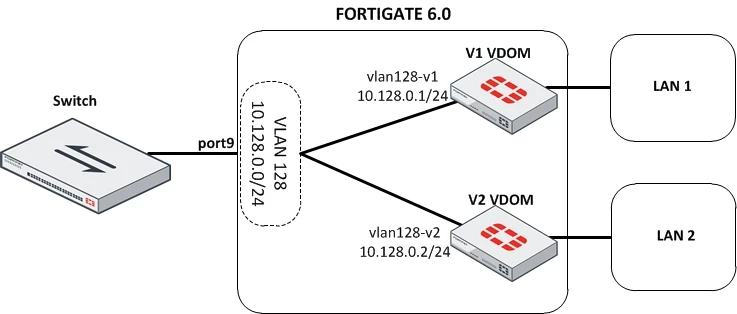

Scenario 1: In the topology above, an EMAC-VLAN is assigned to VLAN128 by creating an interface between both the  VDOM V1and VDOM V2.
Each of the interfaces has its own unique MAC address. EMAC VLANs can communicate (ping) with each other even though they are in different VDOMs, no additional configuration is required for this behavior. However, they cannot ping VLAN 128 interface itself, which is by design.



This occurs because when an EMAC-VLAN interface sends an ARP request for the switch, the request is transmitted out of the same physical port on which VLAN 128 exists. Since the switch does not forward ARP requests back out the same port on which they were received, the ARP request never reaches the VLAN 128 interface. As a result, the VLAN 128 interface never responds, and connectivity fails.



Note: An EMAC-VLAN interface cannot be used as a DHCP server.


If DHCP is required, the DHCP server must be configured on the VLAN interface itself. DHCP cannot be configured on an EMAC-VLAN interface.


First, the VLAN interface must be created:

config system interface
    edit "vlan128"
        set vdom "root"
        set interface "port9"
        set ip 10.128.0.3 255.255.255.0            <----- Optional only if DHCP server is needed.
        set vlanid 128
    next
end

Then bind the EMAC-VLAN interfaces to that VLAN interface:

config system interface
    edit "vlan128-v1"
        set vdom "v1"
        set ip 10.128.0.1 255.255.255.0
        set allowaccess ping
        set type emac-vlan
        set interface "vlan128"
    next
end

config system interface
    edit "vlan128-v2"
        set vdom "v2"
        set ip 10.128.0.2 255.255.255.0
        set allowaccess ping
        set type emac-vlan
        set interface "vlan128"
    next
end

Verification:

get router info routing-table all
Routing table for VRF=0
Codes: K - kernel, C - connected, S - static, R - RIP, B - BGP
O - OSPF, IA - OSPF inter area
N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
E1 - OSPF external type 1, E2 - OSPF external type 2
i - IS-IS, L1 - IS-IS level-1, L2 - IS-IS level-2, ia - IS-IS inter area
* - candidate default

C 10.128.0.0/24 is directly connected, vlan128-v1

exe ping 10.128.0.254
PING 10.128.0.254 (10.128.0.254): 56 data bytes
64 bytes from 10.128.0.254: icmp_seq=0 ttl=64 time=0.5 ms
64 bytes from 10.128.0.254: icmp_seq=1 ttl=64 time=0.1 ms
^C
--- 10.128.0.254 ping statistics ---
2 packets transmitted, 2 packets received, 0% packet loss
round-trip min/avg/max = 0.1/0.3/0.5 ms

get router info routing-table all
Routing table for VRF=0
Codes: K - kernel, C - connected, S - static, R - RIP, B - BGP
O - OSPF, IA - OSPF inter area
N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
E1 - OSPF external type 1, E2 - OSPF external type 2
i - IS-IS, L1 - IS-IS level-1, L2 - IS-IS level-2, ia - IS-IS inter area
* - candidate default

C 10.128.0.0/24 is directly connected, vlan128-v2

exe ping 10.128.0.254
PING 10.128.0.254 (10.128.0.254): 56 data bytes
64 bytes from 10.128.0.254: icmp_seq=0 ttl=64 time=0.2 ms
64 bytes from 10.128.0.254: icmp_seq=1 ttl=64 time=0.2 ms
^C
--- 10.128.0.254 ping statistics ---
2 packets transmitted, 2 packets received, 0% packet loss
round-trip min/avg/max = 0.2/0.2/0.2 ms

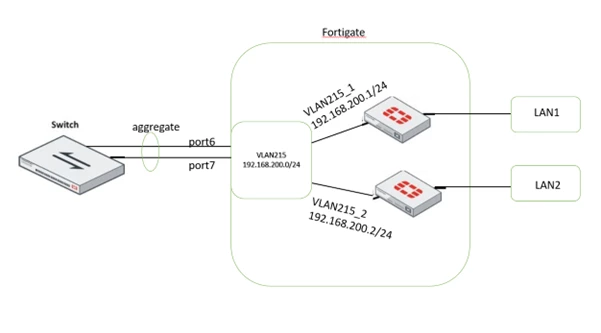

Scenario 2: Aggregate interface.






  1. Create the aggregate interface.



config system interface
    edit "lag"
        set vdom "root"
        set type aggregate
        set member "port6" "port7"
        set lldp-transmission enable
        set role lan
    next
end



  1. Create a VLAN interface under the aggregate interface:



config sys int
    edit "vlan215"
        set vdom root
        set interface lag
        set vlanid 215
    next
end



  1. Then bind the emac-vlan interfaces to that VLAN interface :



config system interface
    edit "vlan215_1"
        set vdom root
        set ip 192.168.200.1 255.255.255.0
        set allowaccess ping
        set type emac-vlan
        set interface "vlan215"
    next
end



config system interface
    edit "vlan215_2"
        set vdom "LAB"
        set ip 192.168.200.2 255.255.255.0
        set allowaccess ping
        set type emac-vlan
        set interface "vlan215"
    next
end






Note:

  1. The config should be executed under global VDOM and not under specific VDOM.
  2. EMacvlan has an NPU offload issue when traffic crosses 2 VDOMS. For example, ICMP traffic hits VDOM1.



At left, and is sent out to 'vlan128-v1', and then hits VDOM2 'vlan128-v2', and is sent out of VDOM2. Although Ping's request at VDOM2, and Ping's reply at VDOM1 could be marked for offload, no packets are offloaded in reality.



Refer to the following document for more details on EMAC VLAN:
