Technical Tip: How to solve SNMP 'Error OID not increasing'
| Description | This article describes how to solve SNMPwalk errors as the one below:
Error: OID not increasing
This error is caused by interface snmp-index duplicates. This occurs when SNMP indexes in the configuration are not auto-corrected (duplicate indexes). This can only occur when the configuration file was manually modified with a text editor, which is not a supported method for modifying the configuration. |
| Scope | FortiOS. |
| Solution | Using SNMP walk tools sometimes can show the error:
snmpwalk -v2c -cC -c infoAMT 10.7.19.132 . . . . . iso.3.6.1.2.1.2.2.1.1.1 = INTEGER: 1 iso.3.6.1.2.1.2.2.1.1.4 = INTEGER: 4 iso.3.6.1.2.1.2.2.1.1.7 = INTEGER: 7 iso.3.6.1.2.1.2.2.1.1.8 = INTEGER: 8 ------------- Value X iso.3.6.1.2.1.2.2.1.1.8 = INTEGER: 8 ------------- Value X Error: OID not increasing: iso.3.6.1.2.1.2.2.1.1.8 >= iso.3.6.1.2.1.2.2.1.1.8 This error means the SNMP index is not increasing. The last value represents the SNMP-Index Interface. These loops occur when SNMP indexes in the configuration are not auto-corrected (duplicate indexes). Example: config system interface edit "port1" set snmp-index 8 ----> Index. next edit "port2" set snmp-index 8----> Index. end Port1 and Port2 have the same index. Solution: Edit the interfaces and change the SNMP-Index value. In this case, the administrator needs to edit these interfaces and configure different Indexes: config system interface edit port1 set snmp-index 2 ----> New Index value 2. next edit port2 set snmp-index 3 ----> New Index value 3. end Use the sniffer below to verify values in packet capture:
diagnose sniffer packet any " host x.x.x.x and port 161 " 6 0 l <----- x.x.x.x is the snmp server IP address.
Type Ctrl+C to stop the sniffer.

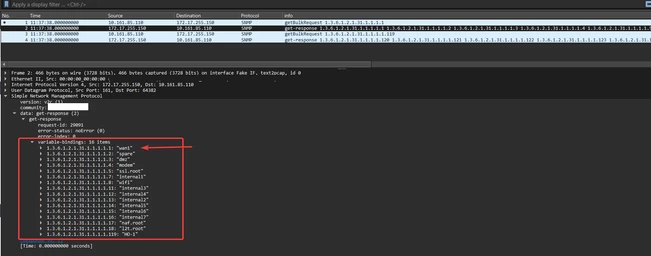

Example: From the screenshot below, FortiGate reports the status to the SNMP server 10.161.85110 of all interface statuses.
