Technical Tip: How to show super admin user via REST API Admin

  • November 10, 2023
  • 0 replies
  • 3208 views
Description

This article describes that normal API admin could not show super admin user and needs to change profile via CLI:

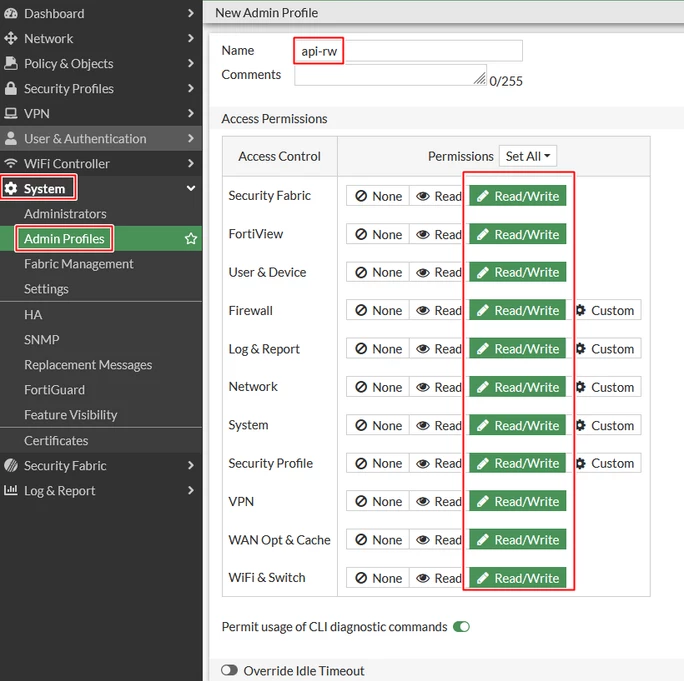

  • Create Admin Profile for REST API Admin with read-write Permissions 'api-rw':

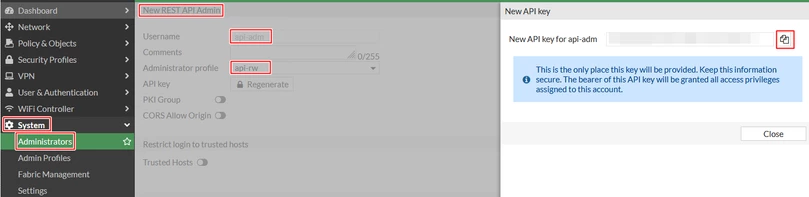

  • Create REST API Admin 'api-adm' with newly created Admin Profile 'api-rw'

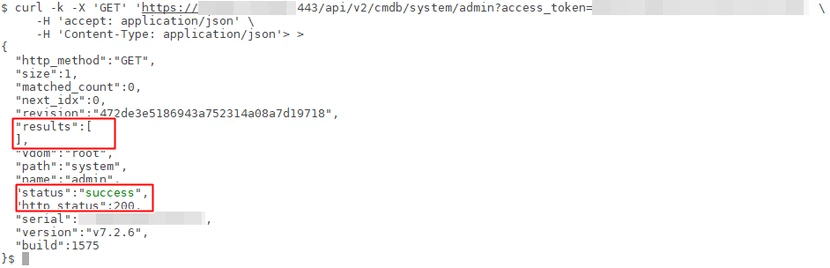

  • Query admin got success status but no admin show here:



curl -k -X 'GET' 'https://<FGT-IP>:443/api/v2/cmdb/system/admin?access_token=<API key>' -H 'accept: application/json' -H 'Content-Type: application/json'



{

  "http_method":"GET",

  "size":1,

  "matched_count":0,

  "next_idx":0,

  "revision":"472de3e5186943a752314a08a7d19718",

  "results":[

  ],

  "vdom":"root",

  "path":"system",

  "name":"admin",

  "status":"success",

  "http_status":200,

  "serial":"<FGT SN>",

  "version":"v7.2.6",

  "build":1575




Scope FortiGate, API, admin profile.
Solution

Change API Admin accprofile from 'api-rw' to 'super_admin' via CLI (GUI not working):



FGT # show sys api-user

config system api-user

    edit "api-adm"

        set api-key ENC SH2K0D2YFgGzBPdYdX6Oappo0Jop4WAwbXCegvi0PL3jBPEh36shFGzRDDf4Og=

        set accprofile "api-rw"

        set vdom "root"

    next

end

FGT # c sys api-user

FGT (api-user) # edit api-adm

FGT (api-adm) # set accprofile super_admin

FGT (api-adm) # next

FGT (api-user) # end

FGT #

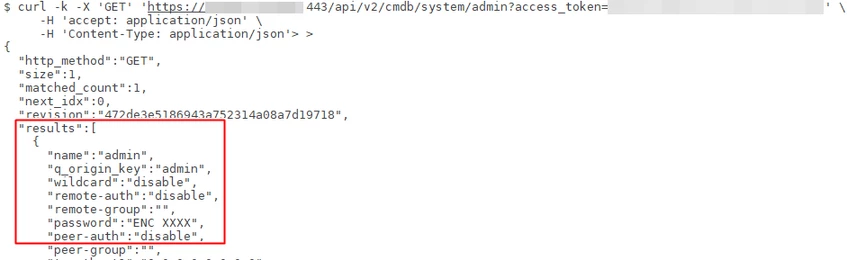

After that, api-adm can query the admin user:






As api-adm has a super_admin access profile, it will work as super admin.
