Technical Tip: How to setup per user based VIP on FortiGate unit in SSLVPN tunnel mode

Description

This article describes how to reserve virtual IP address assignment for SSLVPN tunnel mode client based on authenticated user, and how to setup a FortiGate unit to work with a RADIUS server to pass RADIUS assigned SSLVPN tunnel end IP address to the SSLVPN tunnel client based on the user authenticated.

Scope

FortiGate units running FortiOS firmware version 5.00 and higher.

RADIUS.
SSL VPN tunnel mode.

Solution

During RADIUS authentication, the FortiGate system will look for the 'Framed-IP-Address' attribute (RFC 2865, section 5.8) in the Access-Accept packet. When this attribute is present and the FortiGate units are configured to use it, it will be given back to the client through IPsec, SSL-VPN, and PPTP.

This feature is only supported in FortiOS firmware version 5.0 and higher.

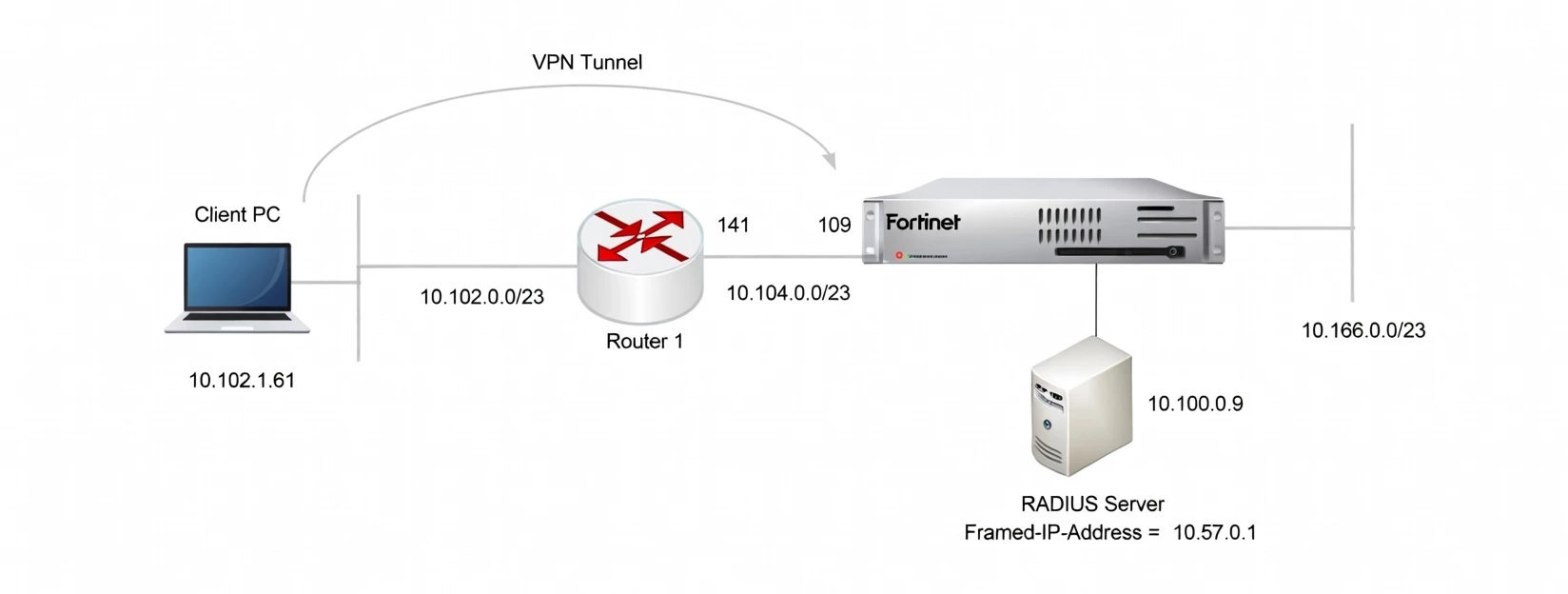

For example:



Summary:

• The client PC establishes an SSL VPN tunnel mode to the FortiGate unit.
• The FortiGate unit is setup to send authentication requests forwarded to the RADIUS server.
• If authentication is successful, the RADIUS server sends Access-Accept packets with the RADIUS attribute of Framed-IP-Address (the IP address assigned/reserved for the user) back to the FortiGate unit.
• The FortiGate unit uses PPP over the SSLVPN (tunnel mode) to deliver the IP address to the client PC.

Prerequisites:

• The FortiGate unit is running FortiOS 5.0 or higher
• The FortiGate unit is connected to the internet
• The FortiGate unit is set up so that remote clients can connect in SSL VPN tunnel mode authenticated by the RADIUS server. See the SSL VPN User Guide on the Fortinet Document Library for general SSL VPN tunnel mode setup.
• The RADIUS server is properly setup for the correct Framed-IP-Address setup for users, so that RADIUS server will send Framed-IP-Address associated with the user in access accept packet.
• Fortinet is not responsible for the setup on the RADIUS server.

• fortinettest
• Auth-Type := CHAP,
• User-Password == 'fortinet',
• Service-Type = Framed-User,

• Session-Timeout = 180,

• Idle-Timeout = 120,

• Framed-IP-Address = 192.168.253.25
