Technical Tip: How to setup LACP between FortiGate and Juniper Switch

Description

This article describes a glimpse of the configuration of LACP between the FortiGate firewall and Juniper Switch.

Scope

FortiOS.

Solution

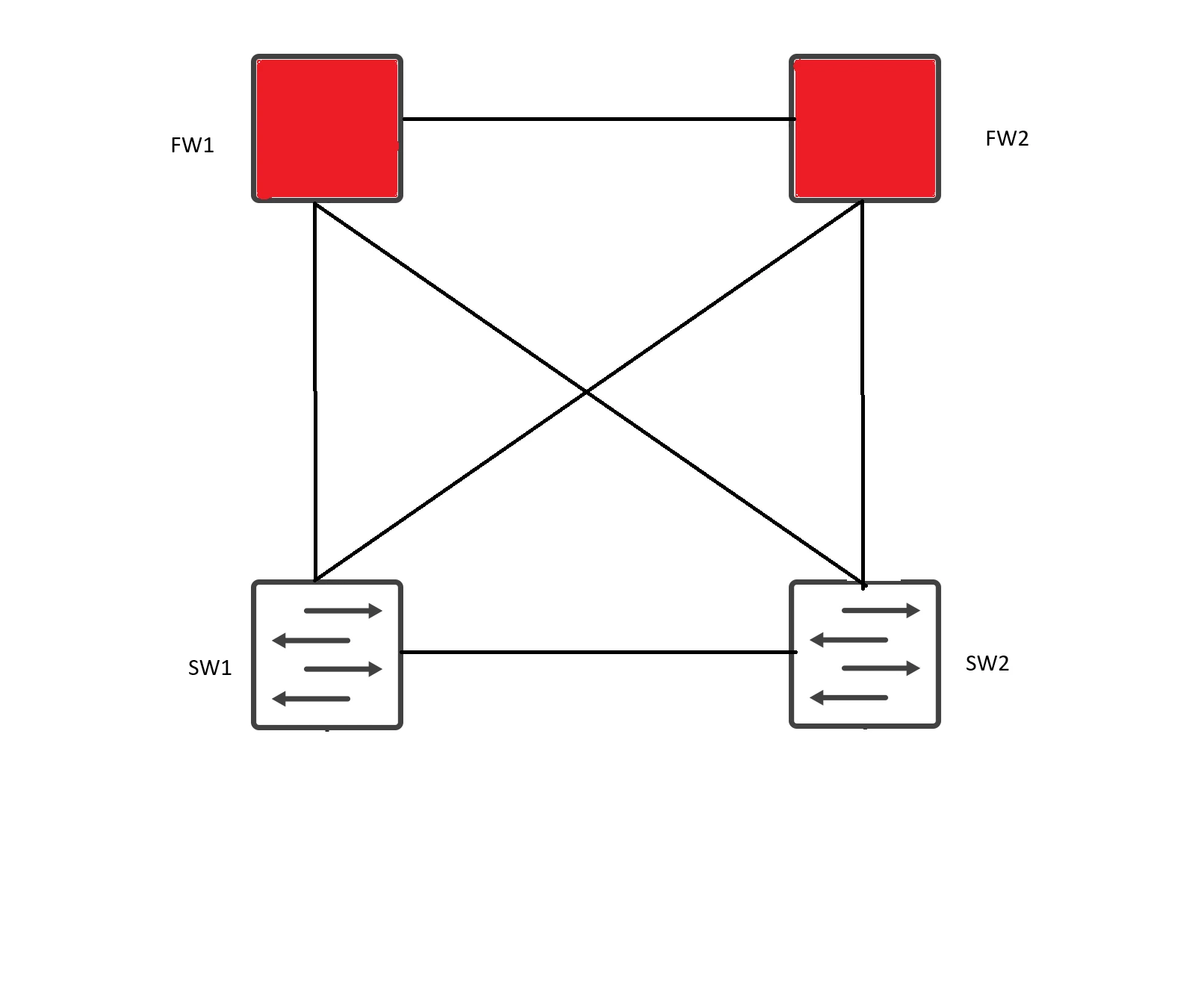

The topology setup is as follows:

The FortiGate firewall is configured in an Active-Passive setup, and it is connected to a Juniper switch.

LACP configuration on the FortiGate Side:

config system interface

    edit "LACP-X3-X4"

        set vdom "root"

        set type aggregate

        set member "x3" "x4" --> Here it is selected X3, X4 port to be part of LAG.

           set alias "sw-uplink"

        set device-identification enable

        set lldp-reception enable

        set lldp-transmission enable

        set role lan

        set snmp-index 12

        set lacp-mode active

        set lacp-speed fast   ---> Change lacp-speed from slow to fast.

    next

end

Note: The default lacp-speed on FortiGate is set to slow (every 30 seconds) while the default speed setting on the Juniper side, in most cases, is set to fast. These settings must match on both sides to ensure proper LACP negotiation.

Since the FortiGate is in HA, the same config will get synced with the Slave device.

LACP configuration on the Juniper Side:

1. Configure the interfaces for ae0:

       set interfaces ge-0/0/6 ether-options 802.3ad ae0
       set interfaces ge-0/0/7 ether-options 802.3ad ae0


2. Configure the ae0 interface for VLAN tagging:

       set interfaces ae0 vlan-tagging


3. Configure LACP for ae0 and configure periodic transmission of LACP packets:

       set interfaces ae0 aggregated-ether-options lacp active periodic fast


4. Configure ae0 as a trunk port:

       set interfaces ae0 unit 0 family ethernet-switching interface-mode trunk


5. Configure the VLAN:

       set vlan vlan1000 vlan-id 1000


6. Add the ae0 interface to the VLAN:

       set interfaces ae0 unit 0 family ethernet-switching vlan members vlan1000


7. If configuring the device is done, commit the configuration:



commit

Verify the LACP status on FortiGate and the Juniper switch:

Juniper Side:

show lacp interfaces ae0

Aggregated interface: ae0

    LACP state:       Role   Exp   Def  Dist  Col  Syn  Aggr  Timeout  Activity

      ge-0/0/6       Actor    No    No   Yes  Yes  Yes   Yes     Fast    Active

      ge-0/0/6     Partner    No    No   Yes  Yes  Yes   Yes     Fast    Passive

      ge-0/0/7       Actor    No    No   Yes  Yes  Yes   Yes     Fast    Active

      ge-0/0/7     Partner    No    No   Yes  Yes  Yes   Yes     Fast    Passive

    LACP protocol:        Receive State  Transmit State          Mux State

      ge-0/0/6                  Current   Fast periodic Collecting distributing

      ge-0/0/7                  Current   Fast periodic Collecting distributing

Note: The LACP protocol indicates the link is up if it is collecting and distributing packets.

Check detailed LACP information:

show interfaces <aggregate_interface_name> extensive

FortiGate Side:

diagnose netlink aggregate name LACP-X3-X4

status: up

npu: y

flush: n

asic helper: y

oid: 82

ports: 2

link-up-delay: 50ms

min-links: 1

ha: master

distribution algorithm: L4

LACP mode: passive

LACP speed: fast

LACP HA: enable

aggregator ID: 1

slave: x3

index: 0

link status: up

LACP state: established

slave: x4

index: 0

link status: up

LACP state: established

Check LACP configuration:

show system interface <aggregate_interface_name>
