Technical Tip: How to set the maximum age for logs on disk

Description

This article describes how to set the maximum age for logs stored on disk.

Scope

FortiGate.

Solution

By default, the maximum age for logs to store on disk is 7 days.
Logs older than this are purged.

Below are the steps to increase the maximum age of logs stored on disk.

config log disk setting
    set maximum-log-age                                    <----- Enter an integer value from <0> to <3650> (default = <7>).
end

Example:

config log disk setting
    set maximum-log-age 30                   <----- Here logs older than 30 days will be purged.
end

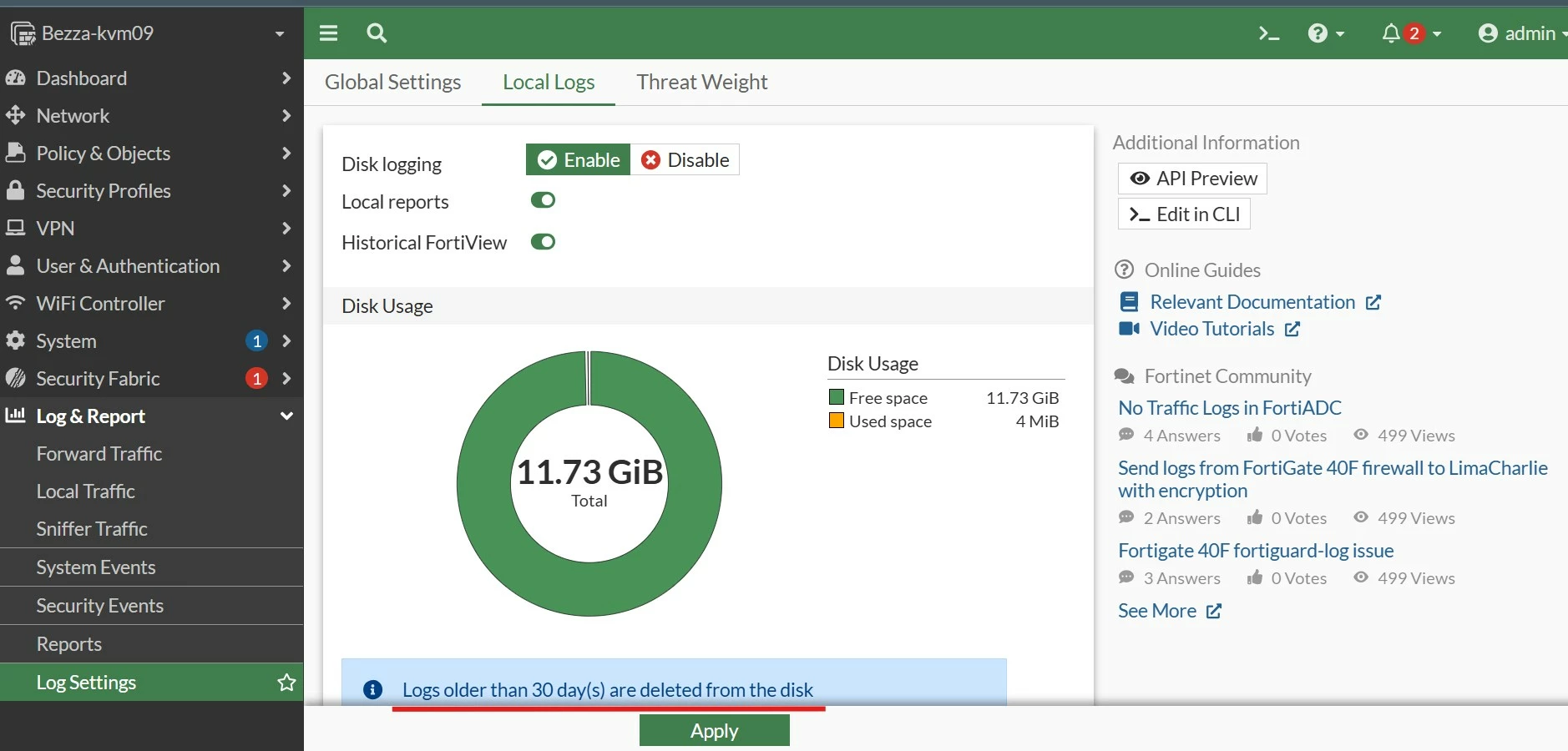

This will now reflect on the GUI under Log Settings -> 'Local Logs' tab

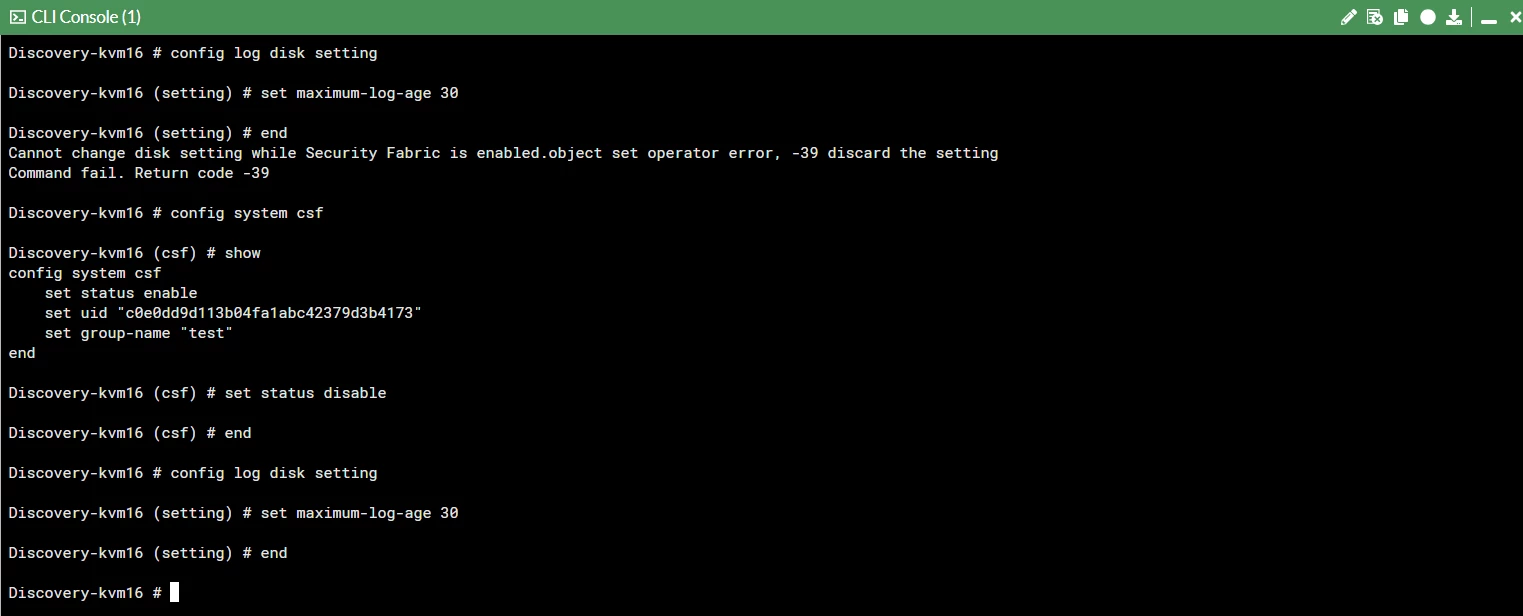

If the FortiGate is part of the Security Fabric, the following error will be observed:

Cannot change disk setting while Security Fabric is enabled.object site operator error, -39 discard the setting

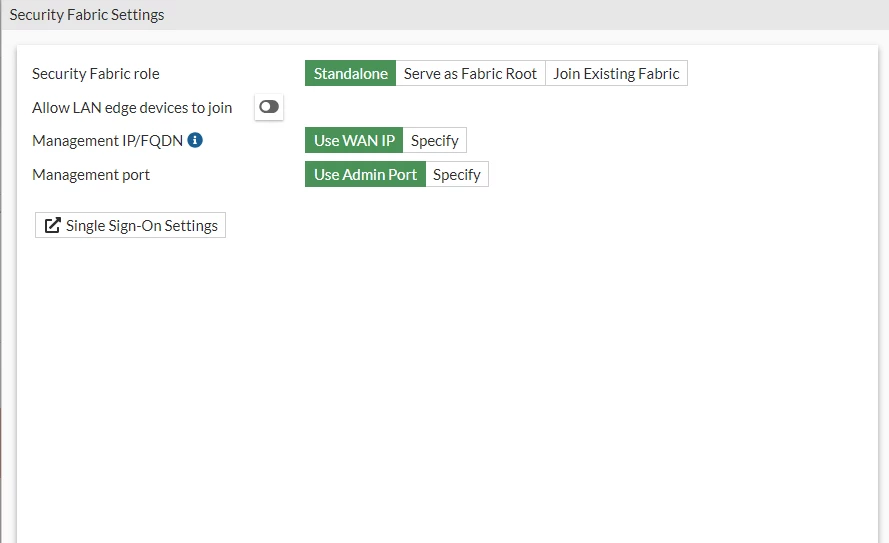

If the Security Fabric setup is not required, disable the setting as showcased in the following screenshot:

To disable from the GUI, navigate to Security Fabric -> Fabric Connectors -> Security Fabric Setup -> Select Security Fabric role as standalone.

Notes:

• If the log disk becomes full before the maximum-log-age is reached, then older logs will get overwritten.
• On the FortiGate-30G model, although a log disk is available, it is restricted to 'event' logs only, and logging forward traffic to the disk is not possible. For more information, refer to this article: Technical Tip: Limitations of Disk Logging on FortiGate-30G Firewalls.
