Technical Tip: How to set FortiGuard Web Filter quotas based on the traffic volume

Description

Scope

Solution

There are two basic requirements for this solution:

• The device should have a valid web filtering license.

• User identity policy with web filter profile enabled.


Bandwidth consuming websites are allocated with some traffic volume per day. If traffic volume usage for bandwidth consuming websites crosses the limit set by the administrator then connection will be reset.

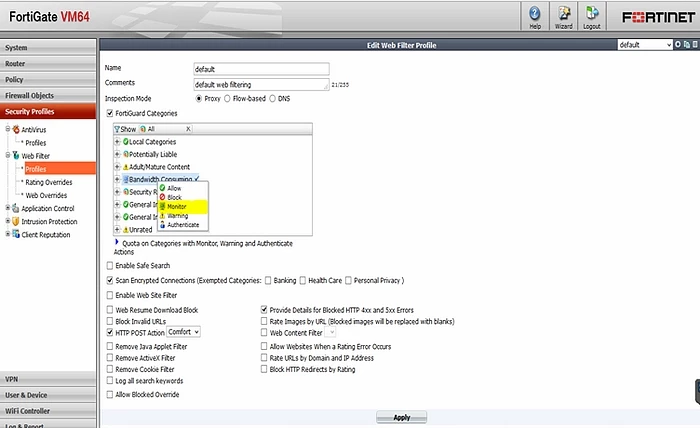

1. Next, a new web filter profile or a clone of the default one can be used. In this example, the default web filter profile is used. In the default web filter profile, the action needs to be set as Monitor for the bandwidth-consuming category.



2. The ID of the Bandwidth Consuming Category that is to be constrained should be first found. The command 'get webfilter categories' will show the ID of the categories. In this case, it is g04 (Bandwidth Consuming).


get webfilter categories
g01 Potentially Liable:
       ....
       ....
g02 Adult/Mature Content:
       ....
       ....
g04 Bandwidth Consuming:
       19 Freeware and Software Downloads
       24 File Sharing and Storage
       25 Streaming Media and Download
       72 Peer-to-peer file Sharing
       75 Internet Radio and TV
       76 Internet Telephony
g05 Security Risk:
       ....
       ....

3. The following command shows how to add a quota of 10MB for bandwidth-consuming websites.


config webfilter profile
    edit default
        config ftgd-wf
            config quota
                edit 1
                    set category g04
                    set type traffic
                    set unit MB
                    set value 10
            end
        end
end

4. As a last step, the quota must be checked to ensure it has been set correctly.


This can be achieved by accessing any video streaming website and opening a video link. Once the bandwidth reaches the quota then the allocated user can no longer access the resources listed in bandwidth consuming websites category.

Note: On newer versions of the FortiGate, the option mentioned in this article is no longer present.

When trying to configure 'quota' under the Web Filter profile created for this traffic, either a Clone of the default one or a new one, after the first step 'config ftgd-wf', the available option is:

(ftgd-wf) # config
filters FortiGuard filters.

After selecting 'filters', the options are:

(filters) #
edit        Add/edit a table value.
delete      Delete a table value.
purge       Clear all table values.
rename      Rename a table entry.
get         Get dynamic and system information.
show        Show configuration.
end         End and save last config.

In this case, the Category selected has been Shopping, and as per the Category IDs, this corresponds to Category 42.

First thing, adding a new custom entry:

(filters) # edit 35

set action monitor

And then show full:

(35) # show full-configuration
config filters
    edit 35
        set category 42
        set action monitor
        set log enable
    next
end

As seen, the option to enable the bandwidth for each category is not available.
