Technical Tip: How to Resolve FortiCloud Registration Failures for FortiSwitch or FortiAP via FortiGate GUI and CLI on FortiOS v7.2.5/7.4.1

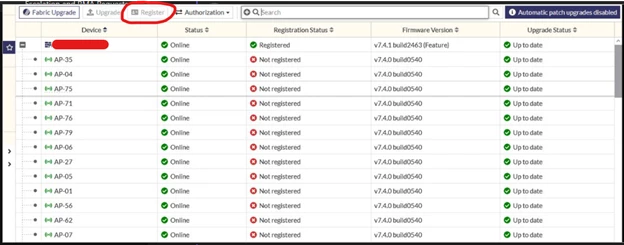

| Description | This article describes that when registering FortiAPs and FortiSwitches to FortiCloud via the FortiGate GUI after 'right-clicking' on the device, it shows as 'offline', and the registration button is grayed out.
'
The device cannot be registered from the CLI either, and it displays the following error message: 'FAP/FSW: FP431Fxxxxxxxxxx is NOT connected',
Command:
diagnose forticare direct-registration product-registration -N S124DP3X15000000 -a xxxx@fortinet.com -p LDAP -T "CA" -R "other" -e 1

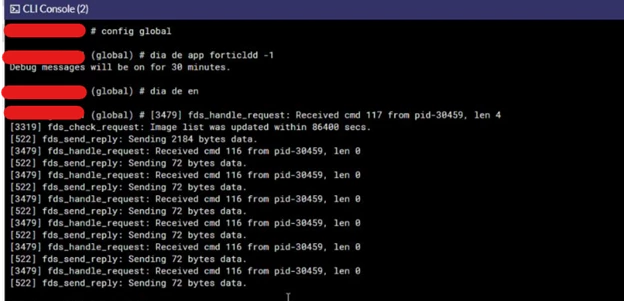

Debug logs for 'Forticldd; do not show anything related to device registration when registering the device via the CLI.
However, the GUI and the CLI 'get wireless-controller wtp-status' both indicate that the FortiAP is connected to the FortiGate for management and yet the direct-registration still does not work.
|
| Scope | FortiGate v7.2.5, 7.4.1. |
| Solution | This behavior matches with the known issue ID 0944465 On FortiOS v7.2.5/7.4.1, if FortiAPs and Fortiswitches connect to a non-management VDOM, the registration via FortiGate will not work.
Fix: Currently, the fix is on FortiOS v7.2.6. Monitor the release notes for the fix on the v7.4 branch:
Workaround: Switch the FortiAPs and FortiSwitches into a management VDOM.
Related document: Technical Tip: 'FortiCloud registration failed' error message when registering 'F' model FortiAPs from FortiGate |
