Technical Tip: How to reset SD-WAN pie chart usage statistics

Description
This article describes how to reset SD-WAN pie chart usage statistics from the GUI.

Solution

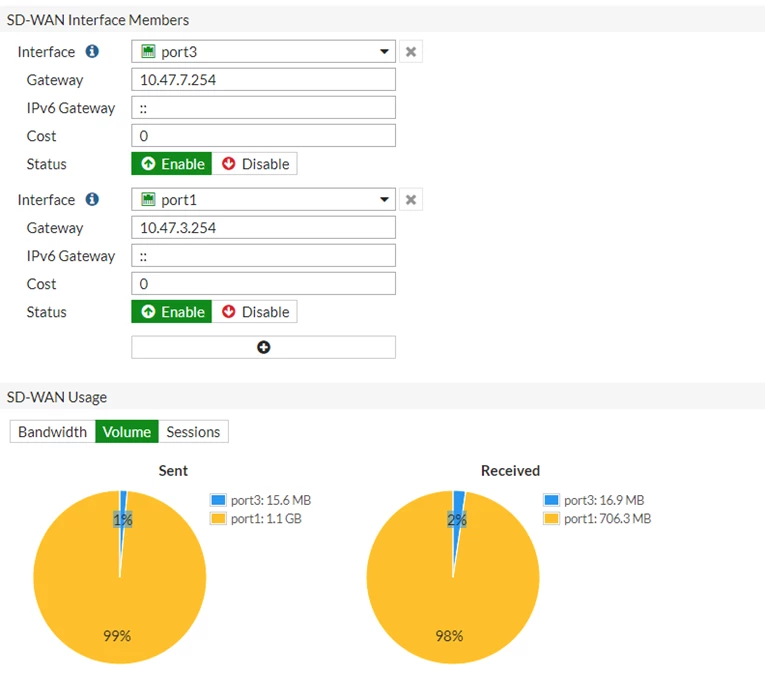

The SD-WAN usage statistics is being pulled from the interface rx/tx bytes.

# diag hard deviceinfo nic port1 | grep Rx\ bytes
Rx bytes:                708781262
# diag hard deviceinfo nic port1 | grep Tx\ bytes
Tx bytes:                1119514361
# diag hard deviceinfo nic port3 | grep Rx\ bytes
Rx bytes:                16988281
# diag hard deviceinfo nic port3 | grep Tx\ bytes
Tx bytes:                15591975

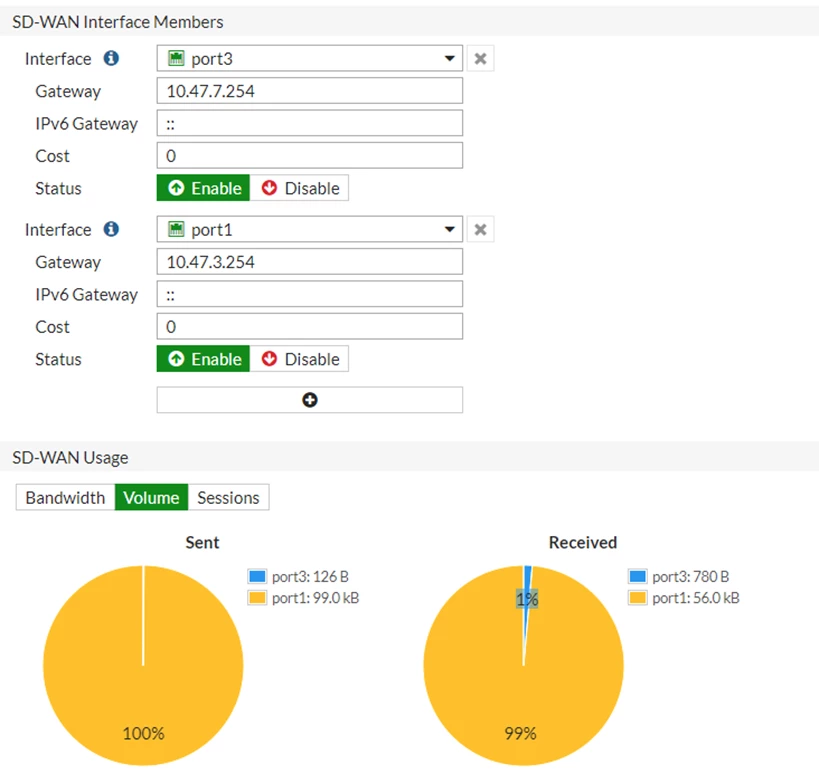

In order to reset the statistics, we will need to reset the interface statistics using the following command:

# diag netlink interface clear port1
# diag netlink interface clear port3
