Technical Tip: How to protect/restrict access to internal Web-Server using captive portal

On the FortiGate, a captive portal can enforce authentication before users can access the web server.

There are two main scenarios to consider regarding how port forwarding is configured on the firewall.

1. Web-Server running on port 443.
2. Web-Server running on non-443 port.

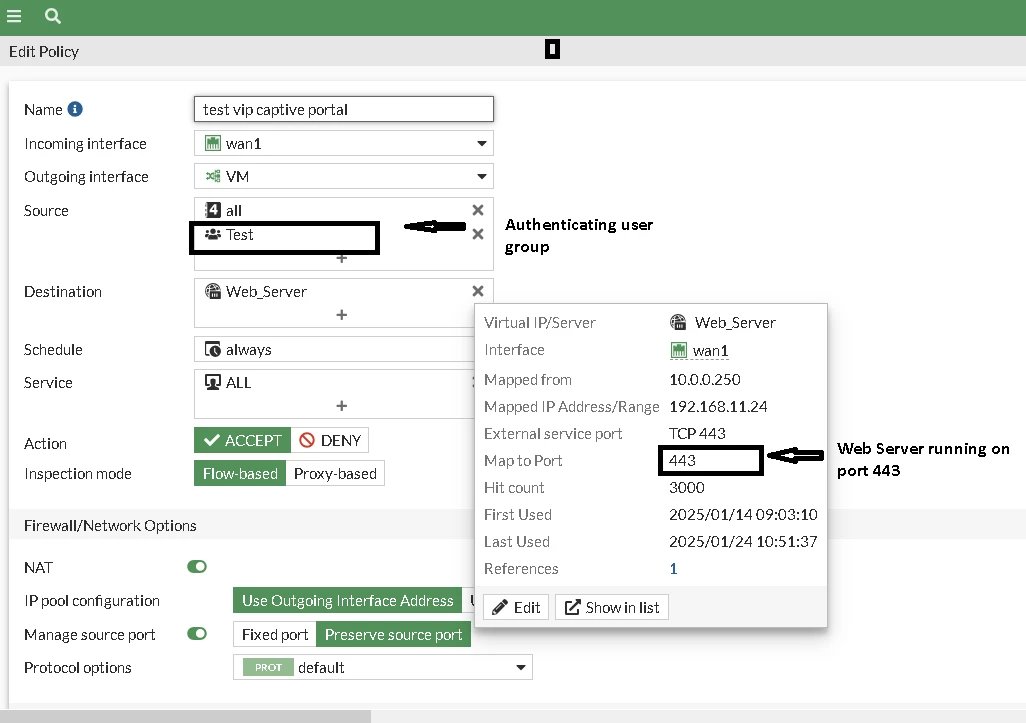

Scenario 1: When a Web-Server is running on port 443, adding a user group in the firewall policy will prompt the user to enter authentication details on the captive portal page.

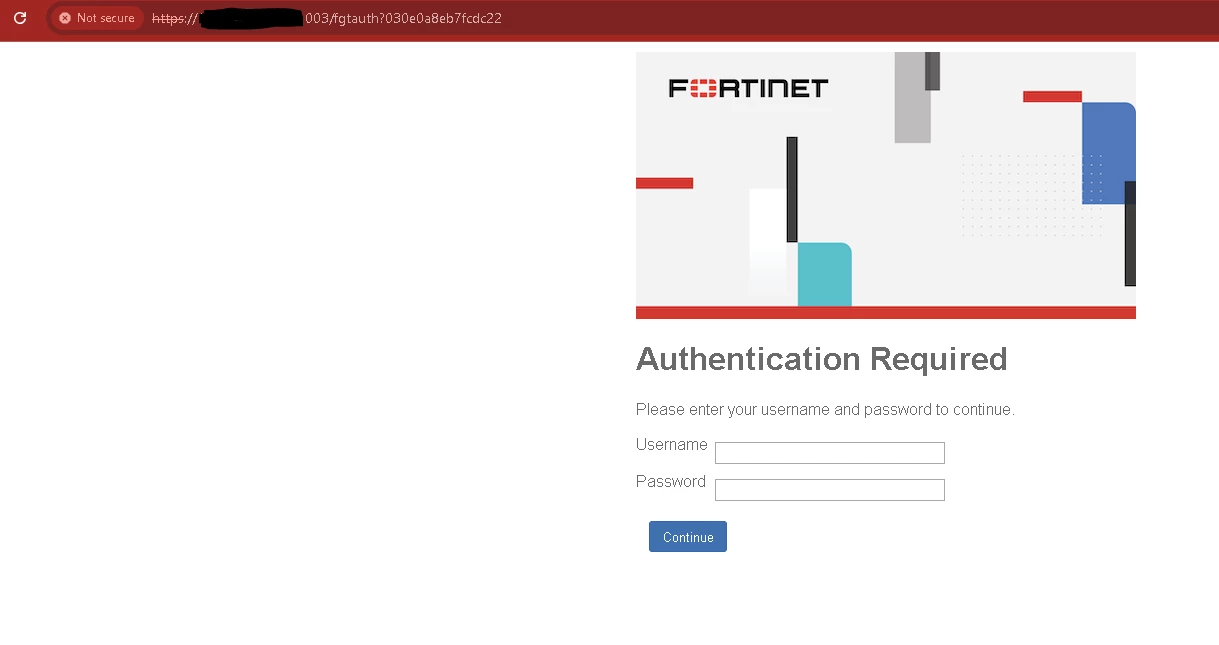

When a user is attempting to access the web server using the public IP, the authentication portal is presented.

Scenario 2: When a Web-Server is running on a non-443 port, the additional configuration is required on the FortiGate to trigger the captive portal.

config user setting

    set auth-cert "ssl_cert"

    set auth-secure-http enable

        config auth-ports

            edit 1

                set port 9191  <- Web-Server listening port.

            next

        end

    end

Note: If the above CLI command is not set, the firewall will not trigger the authentication portal.
