Technical Tip: How to permit temporary access to a site during a particular time slot

Description

Scope

FortiGate.

Solution

1. Create a web filter profile to allow web site.

   config webfilter profile
       edit "allow_facebook"
           set options activexfilter cookiefilter javafilter block-invalid-url
               config override
                   set ovrd-user-group ""
               end
               config web
                   set urlfilter-table 1
               end
               config ftgd-wf
                   unset options
                       config filters
                           edit 1
                               set category 140
                           next
                           edit 2
                               set category 141
                           next
                       end
               end
       next
   end

   config webfilter urlfilter
       edit 1
           set name "allow_facebook"
               config entries
                   edit 1
                       set url "www.facebook.com"
                   next
               end
       next
   end


2. Create a schedule time window.

   config firewall schedule recurring
       edit "lunchtime"
           set start 12:55
           set end 13:55
           set day monday tuesday wednesday thursday friday
       next
   end


3. Assign webfilter profile and schedule profile to a firewall policy and position it at the top.


4. Enable schedule-timeout option to force one-time schedule active session terminate while reach schedule stop time.



config firewall policy
    edit 2
        set srcintf "port9"
        set dstintf "mgmt1"
        set srcaddr "all"
        set dstaddr "all"
        set action accept
        set schedule "lunchtime"
        set schedule-timeout enable
        set service "ALL"
        set utm-status enable
        set av-profile "av-scan-flow"
        set webfilter-profile "allow_facebook"
        set ips-sensor "protect_client"
        set application-list "default"
        set profile-protocol-options "default"
        set ssl-ssh-profile "certificate-inspection"
        set nat enable
    next
    edit 1
        set srcintf "port9"
        set dstintf "mgmt1"
        set srcaddr "all"
        set dstaddr "all"
        set action accept
        set schedule "always"
        set service "ALL"
        set utm-status enable
        set av-profile "default"
        set webfilter-profile "default"
        set ips-sensor "protect_client"
        set application-list "default"
        set profile-protocol-options "default"
        set ssl-ssh-profile "certificate-inspection"
        set nat enable
    next
end

Verification.

diag sys session list

session info: proto=6 proto_state=11 duration=0 expire=311 timeout=3600 flags=00000000 sockflag=00000000 sockport=80 av_idx=1 use=4
origin-shaper=
reply-shaper=
per_ip_shaper=
ha_id=0 policy_dir=0 tunnel=/
state=redir local may_dirty ndr hlife
statistic(bytes/packets/allow_err): org=754/4/1 reply=627/3/1 tuples=3
orgin->sink: org pre->post, reply pre->post dev=36->3/3->36 gwy=192.18.17.254/10.18.0.150
hook=post dir=org act=snat 10.18.0.150:39801->198.41.207.97:80(192.18.16.182:39801)
hook=pre dir=reply act=dnat 198.41.207.97:80->192.18.16.182:39801(10.18.0.150:39801)
hook=post dir=reply act=noop 198.41.207.97:80->10.18.0.150:39801(0.0.0.0:0)
pos/(before,after) 0/(0,0), 0/(0,0)
misc=0 policy_id=2 auth_info=0 chk_client_info=0 vd=0
serial=00032bea tos=ff/ff ips_view=2 app_list=2001 app=0
dd_type=0 dd_mode=0
npu_state=0x000400

The following example allows users able to access Youtube during break time everyday (12:00 - 14:00).

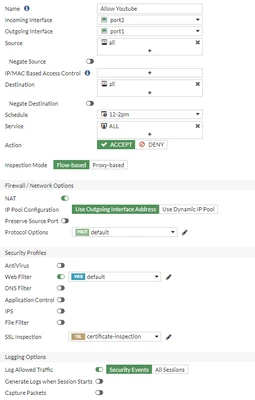

1. Create a scheduled policy to allow Youtube during a particular time slot. Refer to the below:

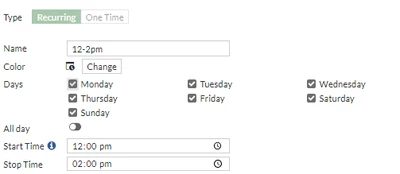

2. For the recurring schedule, refer to the article Technical Tip: How to configure schedule policy with deny action. The sample below for schedule is set from 12 pm - 2 pm every day:

When both policies are enabled, make sure that the allow policy is above the block policy. Refer to the below screenshot:

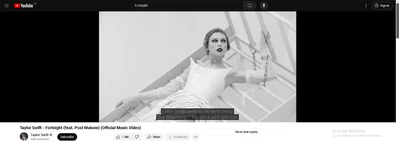

The expected result is the user able to view Youtube videos during the configured schedule.

Related Article:

Technical Tip: How to Block Youtube using Static URL filter
