Technical Tip: How to move authentication rule to top and to bottom in SSL VPN

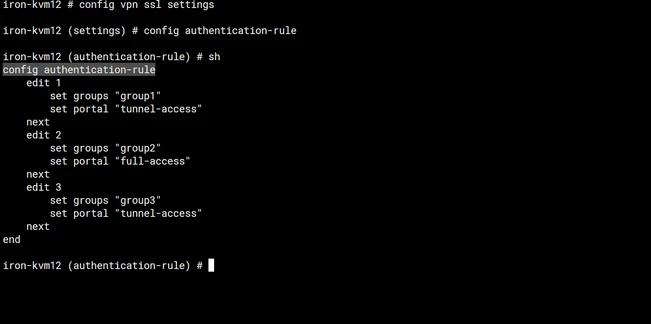

To view authentication rules, it is necessary to execute the below commands.

config vpn ssl settings

    config authentication-rule

    show

    end

end

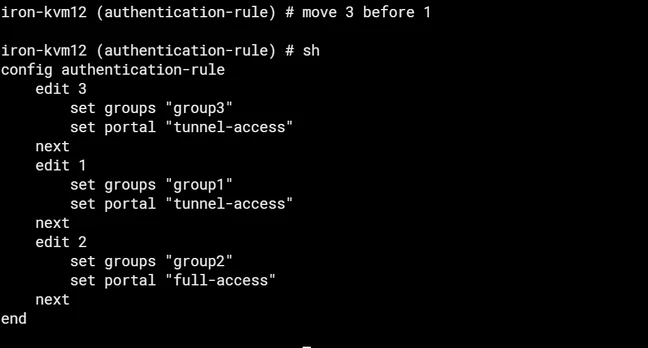

In the above example, if it is desired to move the rule ID 3 to the top of 1, it is necessary to execute the below commands.

config vpn ssl settings

    config authentication-rule

    move 3 before 1

    end

end

Now, the rule ID 3 is top to 1.

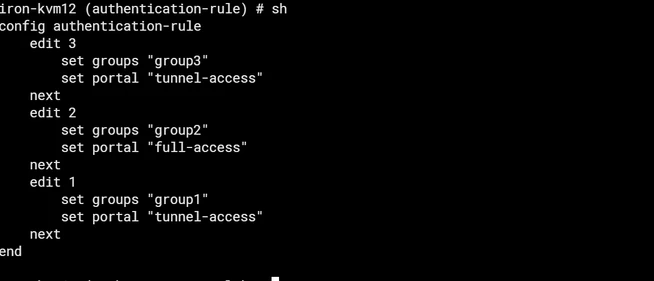

Similarly, if it is desired to move the rule ID 1 to below 2, it is necessary to execute the below commands.

config vpn ssl settings

    config authentication-rule

    move 1 after 2

    end

end

Now, the rule ID 1 is below 2.

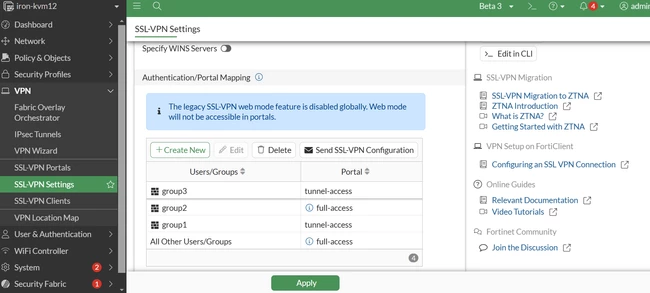

In GUI, to view the authentication rule, it is necessary to navigate to VPN -> SSL settings.

Note:

To move the authentication rule, the option is through CLI only, the GUI option is not available.

Further starting from v7.4 the SSL VPN settings will be hidden.

To enable SSL VPN web mode:

config system global
    set sslvpn-web-mode enable
end

To enable the VPN -> SSL-VPN GUI menus:

config system settings
    set gui-sslvpn enable
end
