Technical Tip: How to map external-identity-provider user by group ID when it auto-connect Forticlient

  • November 11, 2024
  • 0 replies
  • 466 views
Description

This article describes how to identify a user based on group-ID when it auto-connects to FortiClient via external-identity-provider.

This can be verified by running the following command that user is matching both group:



diagnose debug application sslvpn -1

diagnose debug application fnbamd -1

diagnose vpn ssl debug-filter src-addr4 x.x.x.x <-remote user wan IP

diagnose debug application samld -1

diagnose debug enable



2024-11-04 16:08:36 [1117] fnbamd_ext_idp_gen_rsp_data-svr_name:AzureAD2-ext
2024-11-04 16:08:36 [1123] fnbamd_ext_idp_gen_rsp_data-Username xxxx@xx.com
2024-11-04 16:08:36 [1129] fnbamd_ext_idp_gen_rsp_data-Appending group 62004656-xxxxx-xxx-xxxxx
2024-11-04 16:08:36 [1129] fnbamd_ext_idp_gen_rsp_data-Appending group dc754b02-xxxxx-xxxx-xxxx
2024-11-04 16:08:36 [1129] fnbamd_ext_idp_gen_rsp_data-Appending group 7621f08c-xxxx-xxxx-xxxx
2024-11-04 16:08:36 [1623] fnbam_user_auth_group_match-req id: 12503579, server: AzureAD2-ext, local auth: 0, dn match: 0
2024-11-04 16:08:36 [1592] __group_match-Group 'VPNSSL' passed group matching
2024-11-04 16:08:36 [1595] __group_match-Add matched group 'VPNSSL'(7)

2024-11-04 16:08:36 [1592] __group_match-Group 'FortiGateAccess' passed group matching
2024-11-04 16:08:36 [1595] __group_match-Add matched group 'FortiGateAccess'(5)
2024-11-04 16:08:36 [292] find_matched_usr_grps-Passed group matching
2024-11-04 16:08:36 [3003] fnbamd_ext_idp_result-res=0
2024-11-04 16:08:36 [3006] fnbamd_ext_idp_result-Authentication succeeded


Scope FortiOS 7.2 and above.
Solution

To filter user by group-id for external-dentity-provider, need to configure below configuration:

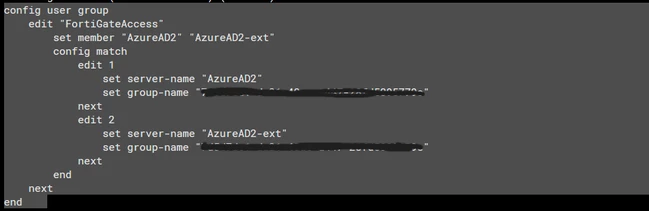

In 7.2.x and 7.4.x version, there is only option to do it from CLI:



edit "FortiGateAccess"

    set member "AzureAD2" "AzureAD2-ext"

        config match

            edit 1

                set server-name "AzureAD2"

                set group-name "7d5d7de1-xxx-xxx-xxxx"

            next

            edit 2

                set server-name "AzureAD2-ext"
                set group-name "7d5d7de1-xxx-xxx-xxxx"
            next
        end
    next
    edit "VPNSSL"
        set member "AzureAD2" "AzureAD2-ext"
            config match
                edit 1
                    set server-name "AzureAD2"
                    set group-name "dc754b02-xxx-xxxxx"
                next
                edit 2
                    set server-name "AzureAD2-ext"
                    set group-name "dc754b02-xxx-xxxxx"
                next
            end
        next
    end



The GUI does not have Group visible:



7.4.x group not visible.PNG



However, in 7.6 and above version, it can be configured by CLI and GUI both.
