Technical Tip: How to manually update the IPS signatures definitions
Description
This article describes how to manually upgrade the IPS signatures definitions on a FortiGate.
Scope
FortiGate.
Solution
FortiOS IPS layer operates with two different components, the IPS engine and IPS signature definitions. Both can be of different versions and releases. This document explains how to manually upgrade IPS signature definitions. This manual upgrade is only necessary when the underlying FortiGuard update process doesn't run or is not scheduled to run too often. It can be verified by running the following CLI command:
config system autoupdate schedule
Here is an example of settings on the low-end model FortiGates:
FortiGate-61F (schedule) # show
config system autoupdate schedule
set frequency daily
set time 03:00
end
config system autoupdate schedule
set frequency daily
set time 03:00
end

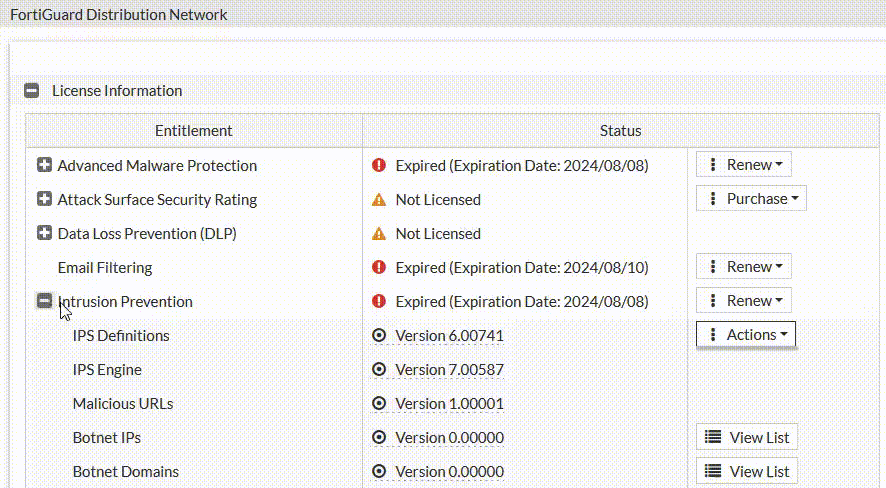

One of the requirements and conditions for the automated IPS signatures definitions upgrade is that the firewall should have a valid and active UTM subscription. Without it, the option for the manual upgrade on the dropdown list, as shown below, is not active.

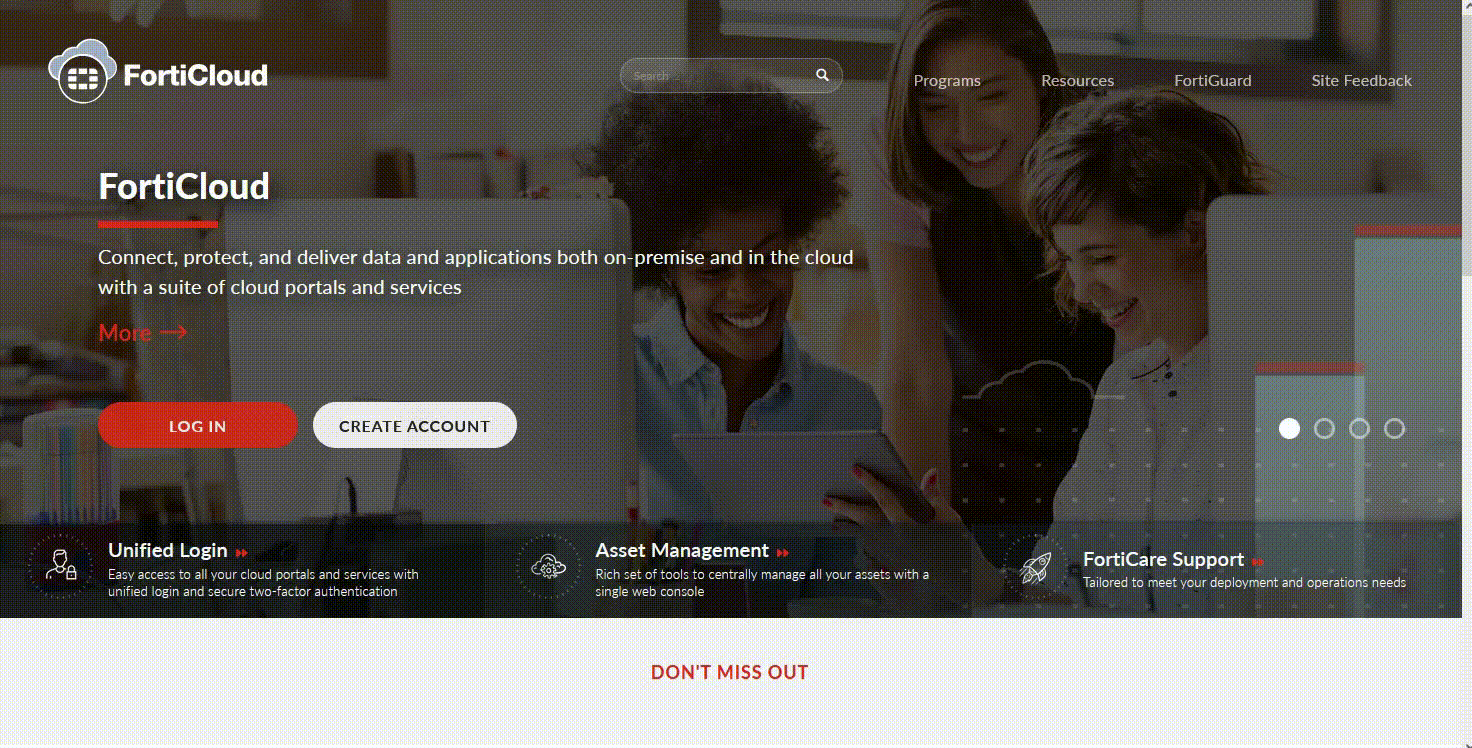

Log in to the Support Portal (Support), then navigate to Support -> Download -> Service Updates.
Select FortiGate under Product and choose the current firmware version under OS Version. Make sure to select the code version that matches the current FortiOS version running on the firewall. Download the Attack Definition (.pkg) file.
In FortiOS versions 7.2.x and 7.4.x :

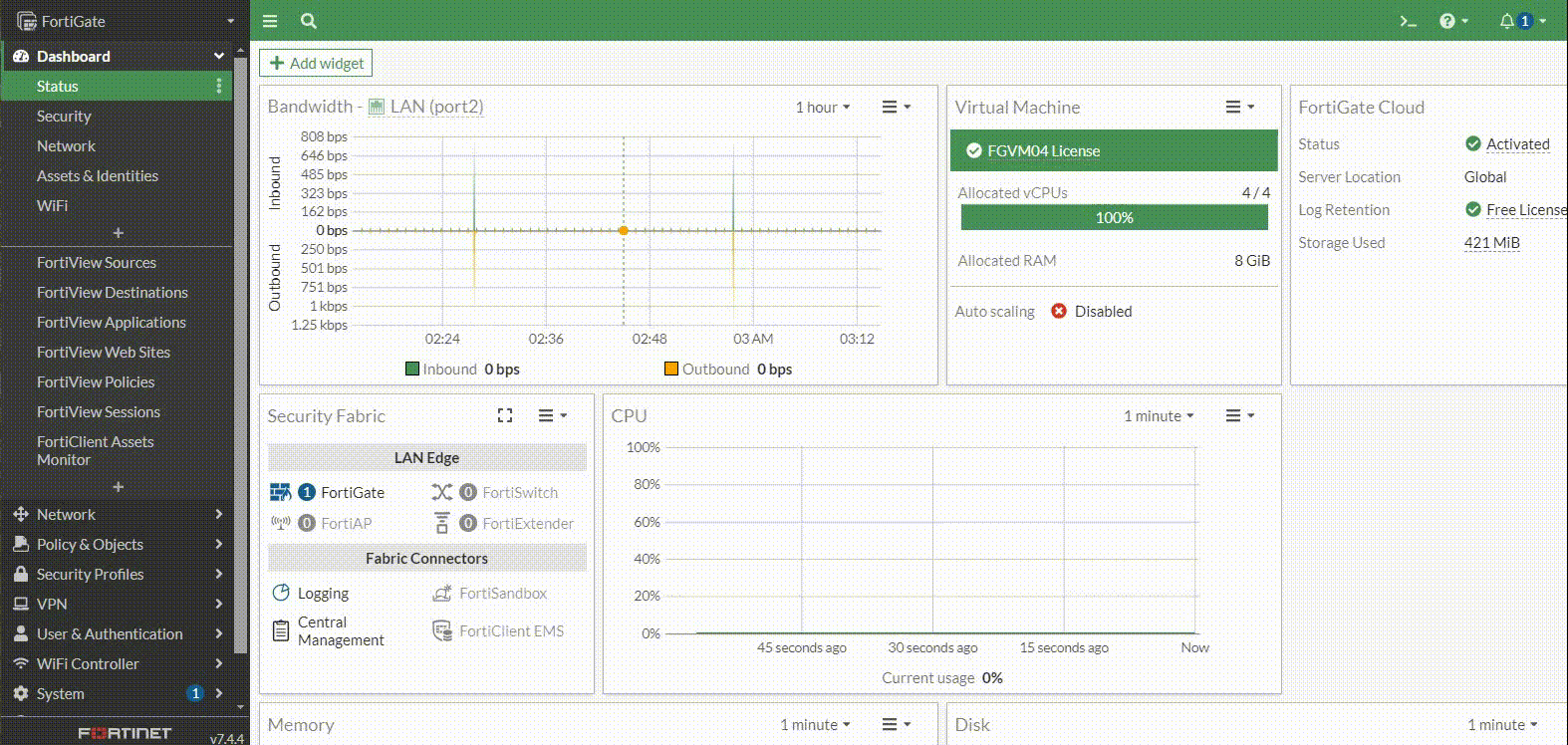

- Log in to the GUI and navigate to: System -> FortiGuard -> Intrusion Prevention -> Actions
- Select 'Upgrade Database', browse the new IPS definitions package, and select 'Apply'.
In FortiOS v7.6.2 and above:

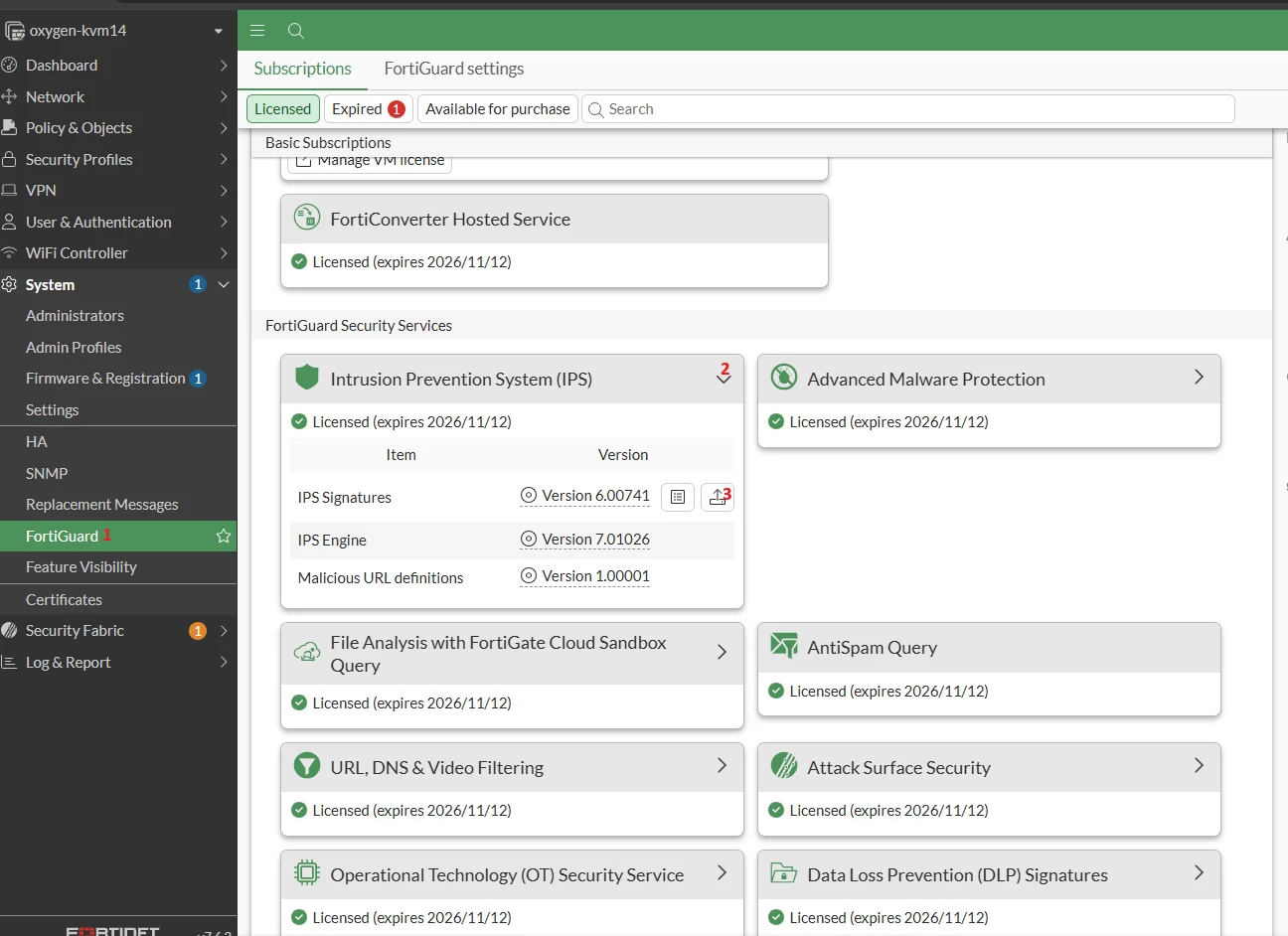

- Log in to the GUI and navigate to: System -> FortiGuard -> FortiGuard Security Services.

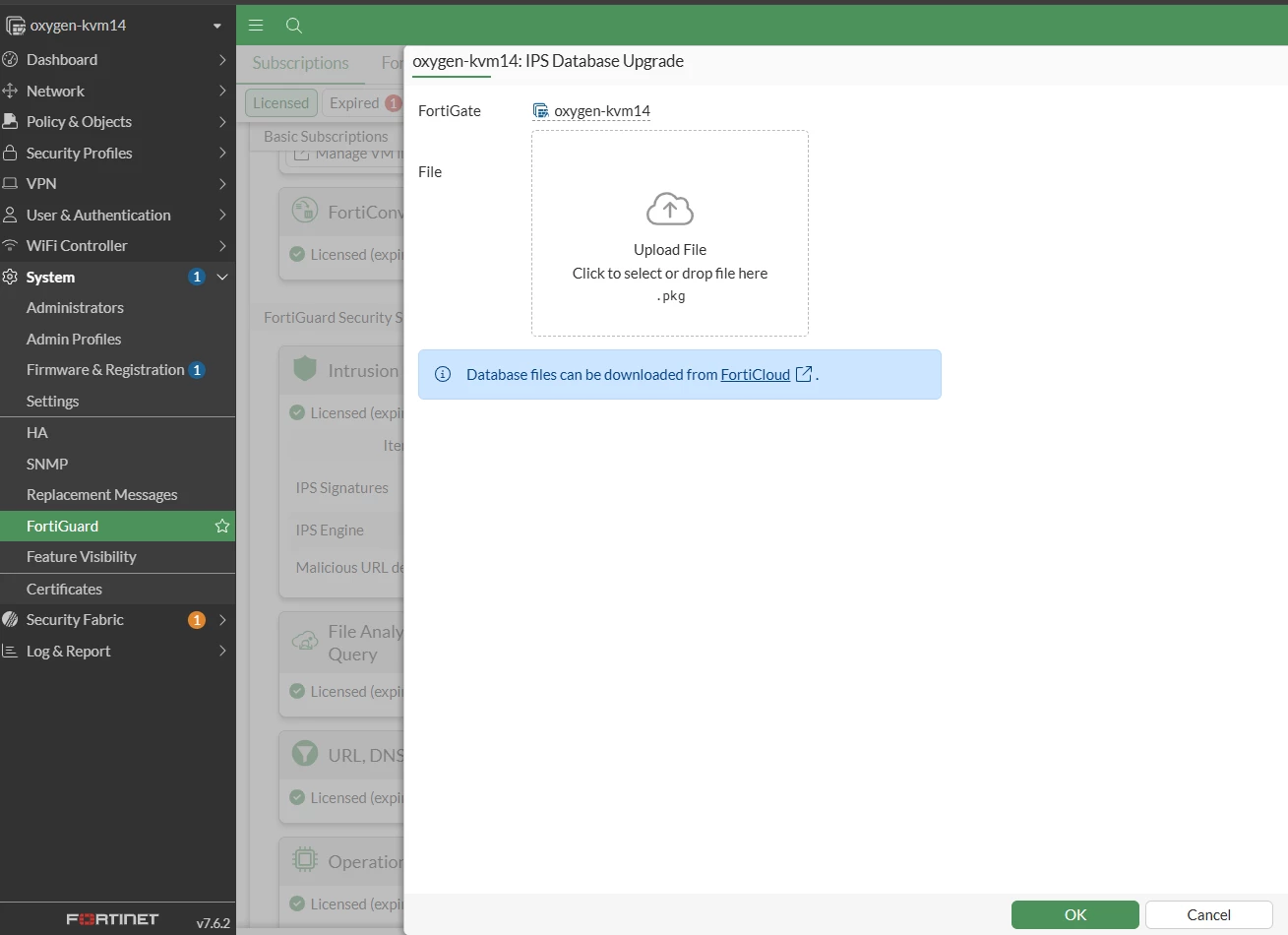

- Select the Upload icon and upload the package.
After upgrading the IPS definitions, restart it by using the following CLI command:
diagnose test application ipsmonitor 99
Upgrading the IPS signatures will terminate all active TCP sessions. The IPS Engine version can be verified before and after the upgrade from both the GUI and CLI.
In the CLI:
diagnose autoupdate versions | grep "IPS Attack" -A 6
If no Intrusion Prevention license information (such as the IPS Engine version or IPS license status) appears on the FortiGuard page, enable Intrusion Prevention under System -> Feature Visibility -> Intrusion Prevention.
After enabling it, return to the FortiGuard page and confirm that the IPS-related information is displayed.
