Technical Tip: How to Integrate FortiSwitch and FortiAP into FortiGate

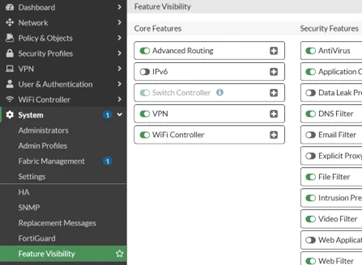

To integrate FortiSwitch and FortiAP with FortiOS on a FortiGate, enable the 'WiFi & Switch Controller' feature in the Feature Visibility settings.

Scenario:

Verify that these features are enabled and that all cable connections are ready.

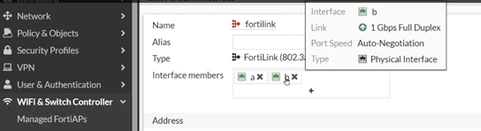

Edit interfaces from Forti Link.

Choose port members.

Wait for a few minutes for the ports to turn green.

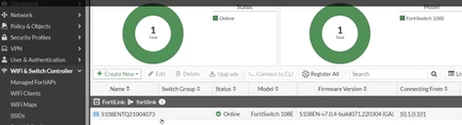

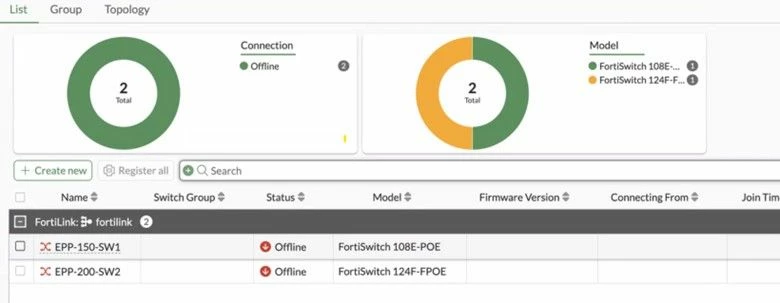

Manage the FortiSwitches.

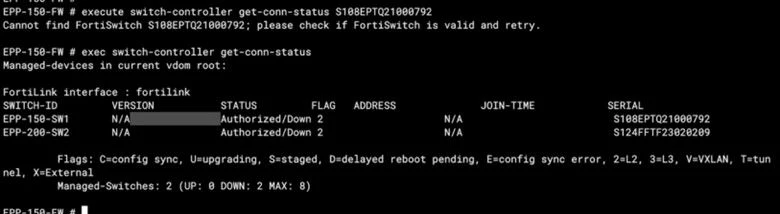

Use the following command to validate the setup:

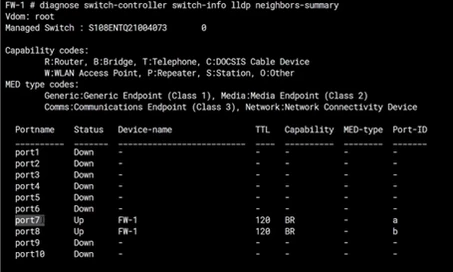

diagnose switch-controller switch-info lldp neighbors-summary

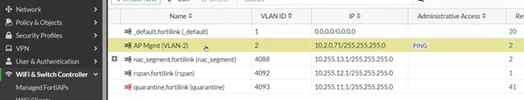

To manage a FortiAP, create a VLAN 2 for Management.

Go to 'Wi-Fi & Switch Controller', then go to FortiSwitch VLANs and create it.

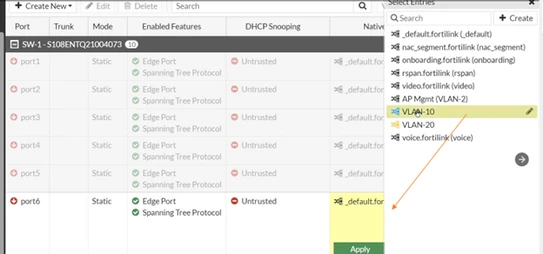

'Right-click' and assign a port for a certain VLAN in the switch.

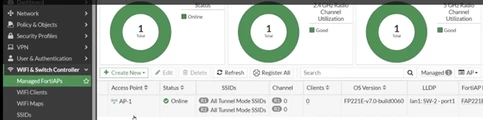

Connect the FortiAPs in Managed FortiAPs.

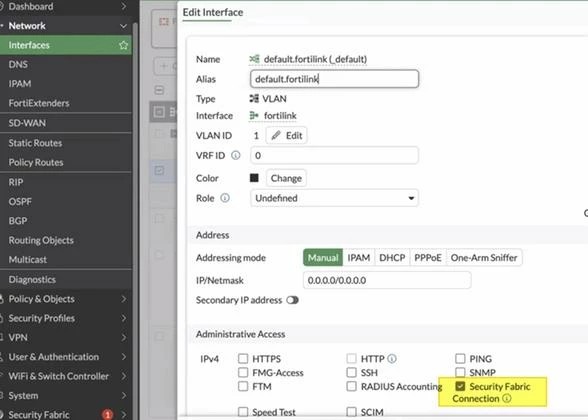

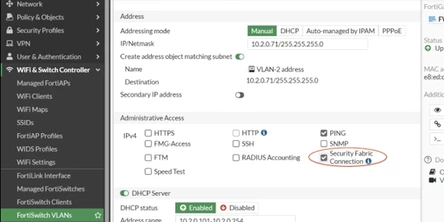

Check that the Security Fabric connector is enabled. This is important for CAPWAP communication between FortiAP and FortiGate.

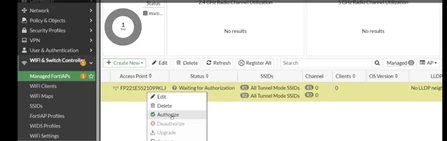

Authorize the FortiAPs.

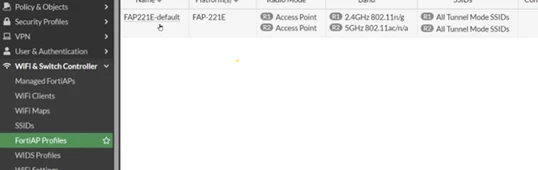

Validating profiles:

Finally, FortiSwitch and Forti AP will be integrated and managed by the FortiGate.

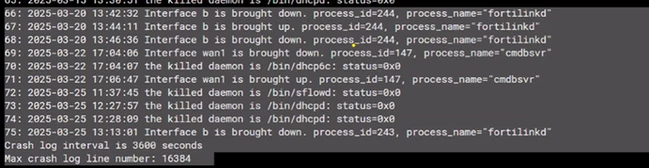

Sometimes, disconnections used to occur due to UPS interruption or electrical power issues on-site. Use the following command to discern whether there were any disruptions from these devices:

diagnose debug crashlog read
