Technical Tip: How to import missing CA certificate of certificate chain to resolve the certificate error message using OCSP information

An internet protocol called OCSP, or Online Certificate Status Protocol, verifies a certificate's validity in real-time. An essential component of Extended Validation SSL certificate construction, OCSP is a real-time certificate status check. A user's browser often does an OCSP check with the CA that issued the SSL certificate when it establishes an https:// connection with a web server to make sure the certificate has not been revoked.

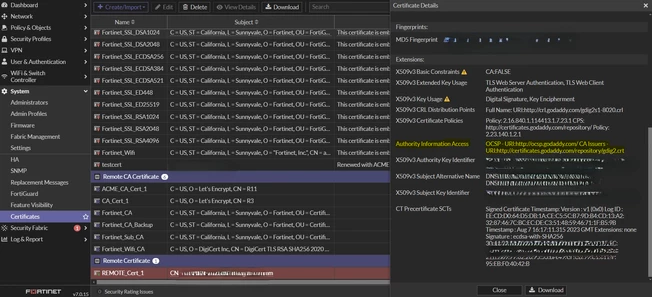

CA issuers can be verified by selecting the certificate on the FortiGate as shown in the screenshot:

Note the ‘Extension’ field 'Authority Information Access' as it provides the information of the CA of the certificate.

Authority Information Access: OCSP - URI: http://ocsp.godaddy.com/ CA Issuers- URL: http://certificates.godaddy.com/repository/gdig2.crt

CA certificate ‘GDIG2.CRT’ can be downloaded using the link ‘http://certificates.godaddy.com/repository/gdig2.crt’ provided as ‘CA Issuers’ and imported as CA Certificate successfully.

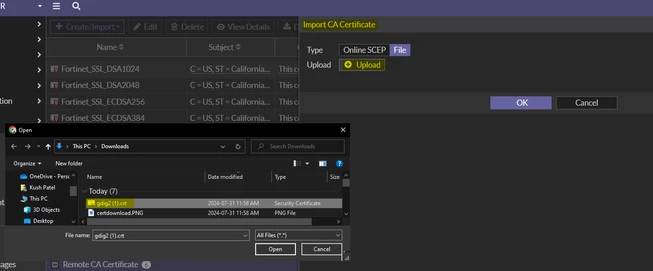

To import, select ‘Create/Import’ -> ‘CA Certificate’ :

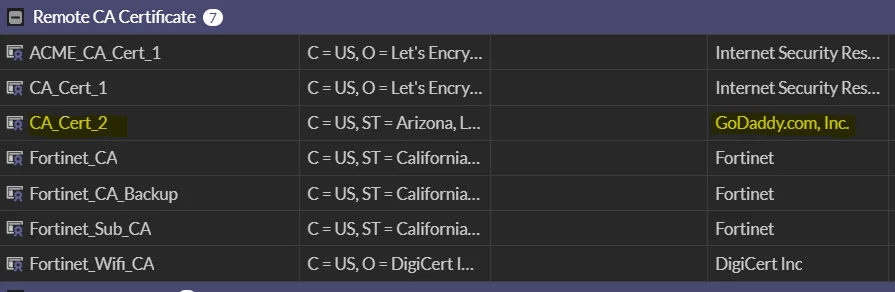

The CA certificate will be imported successfully as shown in the picture:

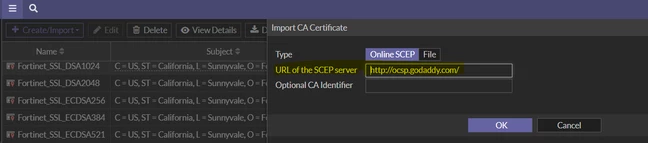

Another way to import the CA certificate is by using the OCSP URL provided as demonstrated in the screenshot:

Authority Information Access: OCSP - URI: http://ocsp.godaddy.com/ CA Issuers - URL: http://certificates.godaddy.com/repository/gdig2.crt.
